All I/Os are CMOS- and TTL-compliant (no software configuration required). Their

characteristics cover more than the strict CMOS-technology or TTL parameters. The

coverage of these requirements is shown in Figure 26 for standard I/Os, and in Figure 26 for

5 V tolerant I/Os.

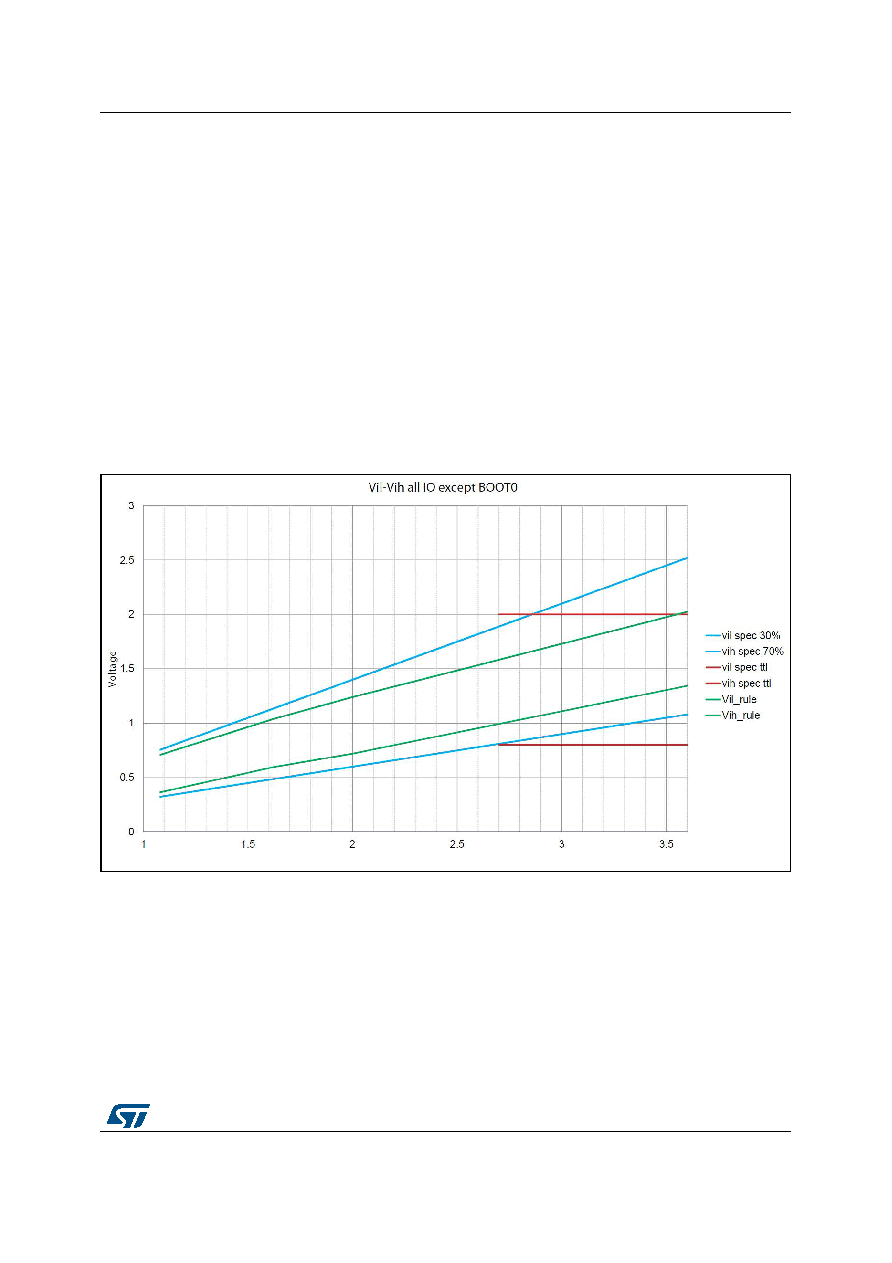

Figure 26. I/O input characteristics

Output driving current

The GPIOs (general purpose input/outputs) can sink or source up to ±8 mA, and sink or

source up to ± 20 mA (with a relaxed VOL/VOH).

1. Refer to Figure 26: I/O input characteristics.

2. Tested in production.

3. Guaranteed by design.

4. This value represents the pad leakage of the IO itself. The total product pad leakage is provided by this formula:

ITotal_Ileak_max = 10 µA + [number of IOs where VIN is applied on the pad] ₓ Ilkg(Max).

5. All FT_xx GPIOs except FT_u and PC3 I/O.

6. Max(VDDXXX) is the maximum value of all the I/O supplies. Refer to Table: Legend/Abbreviations used in the pinout table.

7. To sustain a voltage higher than Min(VDD, VDDA, VDDUSB) +0.3 V, the internal Pull-up and Pull-Down resistors must be

disabled.

8. Pull-up and pull-down resistors are designed with a true resistance in series with a switchable PMOS/NMOS. This

PMOS/NMOS contribution to the series resistance is minimal (~10% order).
