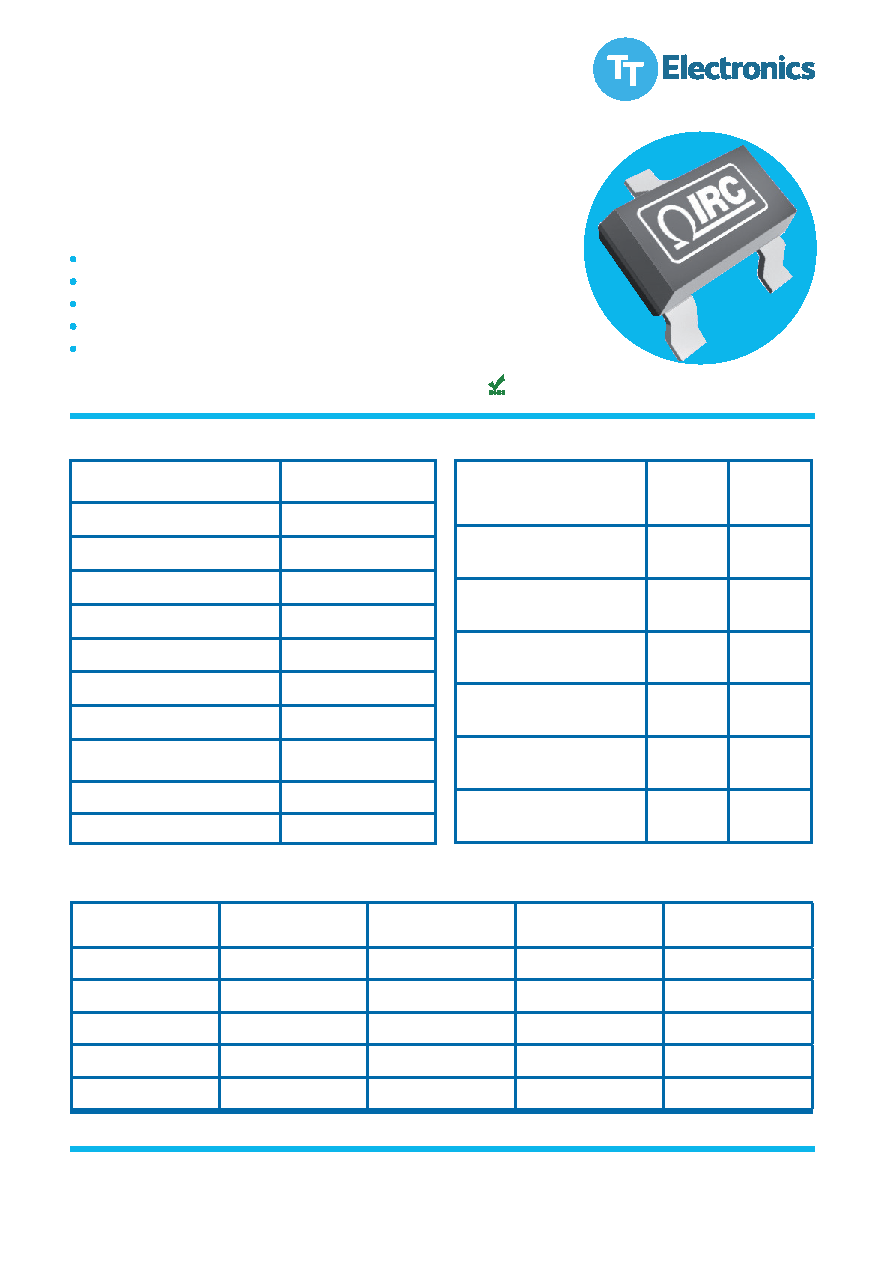

SOT23 Surface Mount

Voltage Divider

DIV23 Series

Replaces legacy SOT23 Series for new designs

Precision ratio tolerances to ±0.05%

Superior alternative to matched sets

Ultra-stable TaNSil® resistors on silicon substrate

RoHS Compliant and Sn/Pb terminations available

General Note

IRC reserves the right to make changes in product specification without notice or liability.

All information is subject to IRC’s own data and is considered accurate at time of going to print.

A subsidiary of

TT electronics plc

• 4222 South Staples Street • Corpus Christi Texas 78411 USA

© IRC Advanced Film Division

Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com

DIV23 Series Issue October 2009 Sheet 1 of 2

SOT23 Surface Mount

Voltage Divider

New DIV23 Series

Element Resistance

Available

Absolute Tolerances

Available

Ratio Tolerances

Best

Absolute TCR

Tracking TCR

10 - 25

F G J K

D F G

±100ppm/°C

±25ppm/°C

25.1 - 50

D F G J K

C D F G

±50ppm/°C

±10ppm/°C

51 - 500

C D F G J K

B C D F G

±25ppm/°C

±2ppm/°C

501 - 100K

B C D F G J K

A B C D F G

±25ppm/°C

±2ppm/°C

101K - 200K

B C D F G J K

B C D F G

±25ppm/°C

±2ppm/°C

Manufacturing Capability

Electrical Data

Environmental Data

Test Per

MIL-PRF-83401

Typical

Delta R

Max Delta

R

Thermal Shock

±0.02%

±0.1%

Power Conditioning

±0.03%

±0.1%

High Temperature Exposure

±0.03%

±0.05%

Short-time Overload

±0.02%

±0.05%

Low Temperature Storage

±0.03%

±0.05%

Life

±0.05%

±0.1%

Element Resistance Range

10 to 200K

Total Resistance Range

20 to 400K

Absolute Tolerance

To ±0.1%

Ratio Tolerance to R1

To ±0.05%

Absolute TCR

To ±25ppm/°C

Tracking TCR

To ±2ppm/°C

Element Power Rating @ 70°C

125mW

Package Power Rating @ 70°C

250mW

Rated Operating Voltage

(not to exceed P x R)

100 Volts

Operating Temperature

-55°C to

+125°C

Noise

<-30dB

√

______

General Note

IRC reserves the right to make changes in product specification without notice or liability.

All information is subject to IRC’s own data and is considered accurate at time of going to print.

A subsidiary of

TT electronics plc

• 4222 South Staples Street • Corpus Christi Texas 78411 USA

© IRC Advanced Film Division

Telephone: 361 992 7900 • Facsimile: 361 992 3377 • Website: www.irctt.com

DIV23 Series Issue October 2009 Sheet 1 of 2

SOT23 Surface Mount

Voltage Divider

New DIV23 Series

Element Resistance

Available

Absolute Tolerances

Available

Ratio Tolerances

Best

Absolute TCR

Tracking TCR

10 - 25

F G J K

D F G

±100ppm/°C

±25ppm/°C

25.1 - 50

D F G J K

C D F G

±50ppm/°C

±10ppm/°C

51 - 500

C D F G J K

B C D F G

±25ppm/°C

±2ppm/°C

501 - 100K

B C D F G J K

A B C D F G

±25ppm/°C

±2ppm/°C

101K - 200K

B C D F G J K

B C D F G

±25ppm/°C

±2ppm/°C

Manufacturing Capability

Electrical Data

Environmental Data

Test Per

MIL-PRF-83401

Typical

Delta R

Max Delta

R

Thermal Shock

±0.02%

±0.1%

Power Conditioning

±0.03%

±0.1%

High Temperature Exposure

±0.03%

±0.05%

Short-time Overload

±0.02%

±0.05%

Low Temperature Storage

±0.03%

±0.05%

Life

±0.05%

±0.1%

Element Resistance Range

10 to 200K

Total Resistance Range

20 to 400K

Absolute Tolerance

To ±0.1%

Ratio Tolerance to R1

To ±0.05%

Absolute TCR

To ±25ppm/°C

Tracking TCR

To ±2ppm/°C

Element Power Rating @ 70°C

125mW

Package Power Rating @ 70°C

250mW

Rated Operating Voltage

(not to exceed P x R)

100 Volts

Operating Temperature

-55°C to

+125°C

Noise

<-30dB

√

______
