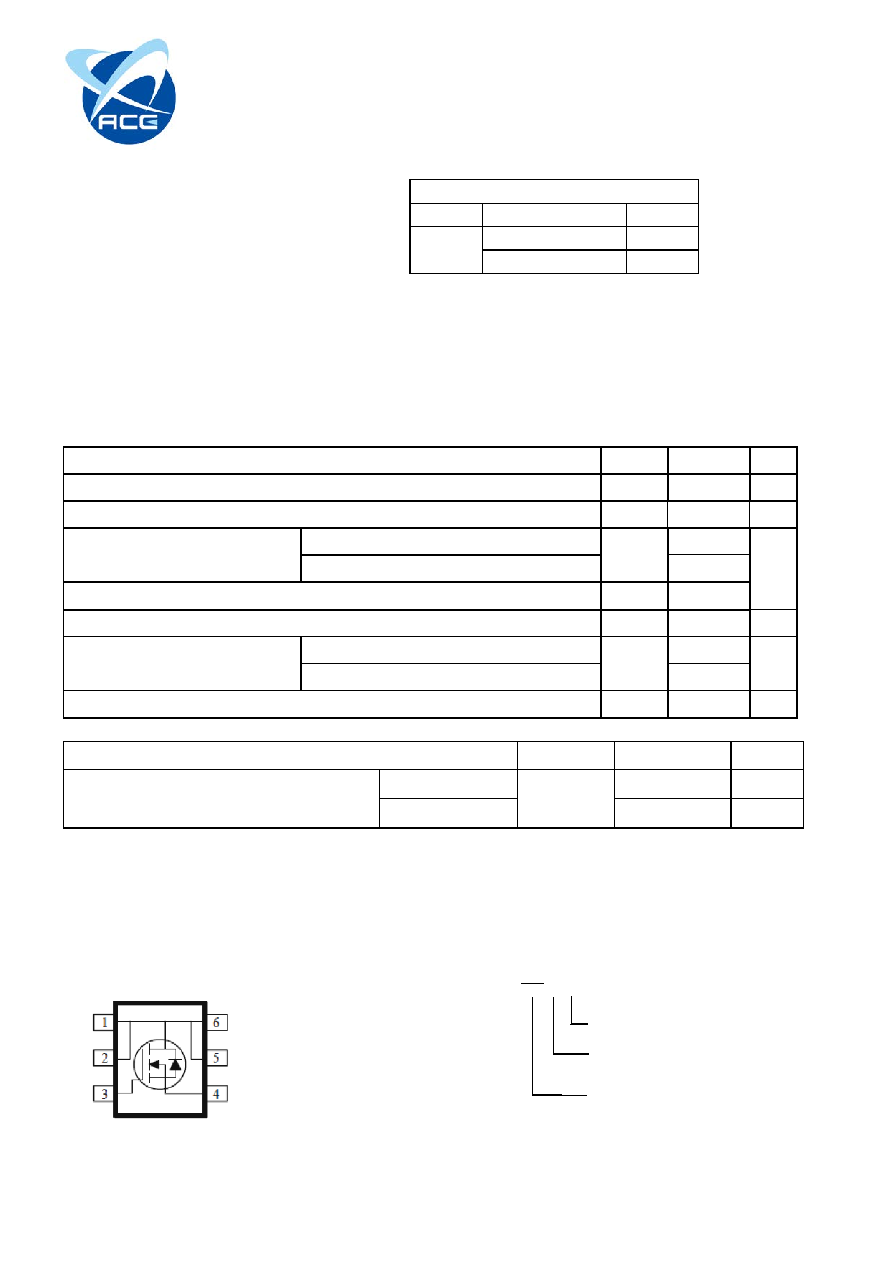

ACE13402M

N-Channel 30-V (D-S) MOSFET

VER 1.1

1

Features



Low rDS(on) trench technology



Low thermal impedance



Fast switching speed

Applications



DC/DC Conversion



Power Routing



Motor Drives

Absolute Maximum Ratings

Parameter

Symbol

Limit

Units

Drain-Source Voltage

VDS

30

V

Gate-Source Voltage

VGS

±20

V

Continuous Drain Current

a

TA=25

OC

ID

7.1

A

TA=70

OC

5.7

Pulse Drain Current

b

IDM

30

Continuous Drain Current (Diode Continuous)

a

IS

2.9

A

Power Dissipation

a

TA=25

OC

PD

2

W

TA=70

OC

1.3

Operating Junction and Storage Temperature Range

TJ,TSTG -55 to 150

OC

Parameter

Symbol

Maximum

Units

Maximum Junction-to-Ambient

a

t≦10sec

RθJA

62.5

℃/W

Steady State

110

℃/W

Notes

a. Surface Mounted on 1” x 1” FR4 Board.

b. Pulse width limited by maximum junction temperature

Packaging Type

Ordering information

SOT-23-6

ACE13402M XX + H

PRODUCT SUMMARY

VDS (V)

rDS

(on) (mΩ)

ID(A)

30

27@ VGS = 10V

7.1

35@ VGS = 4.5V

6.2

GM: SOT-23-6

Pb - free

Halogen - free
