2SA733-R datasheet(1/2 Pages) MCC

部件名	2SA733-R

功能描述	PNP Silicon Plastic-Encapsulate Transistor

PDF	2 Pages

Scroll/Zoom	100%

制造商	MCC [Micro Commercial Components]

网页	http://www.mccsemi.com

标志

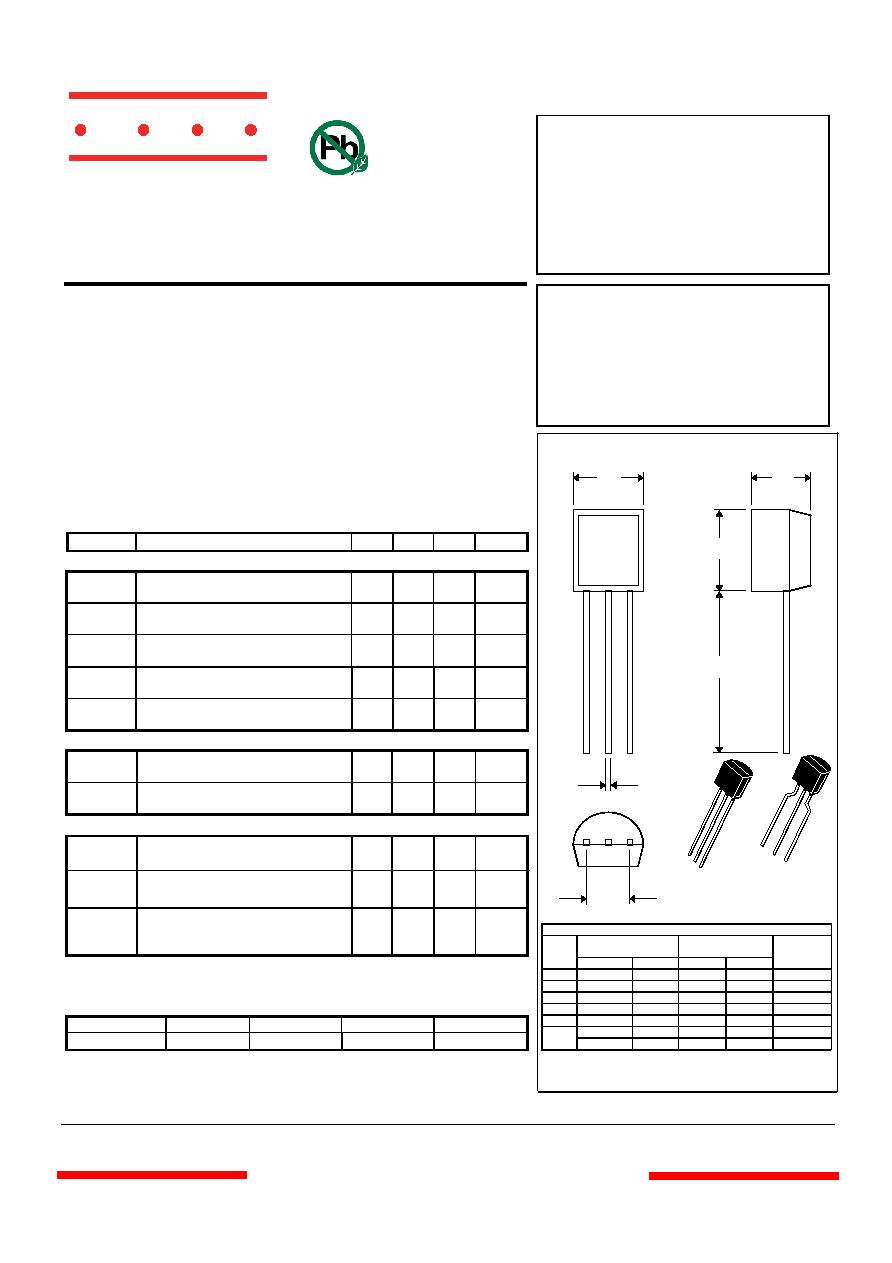

1 / 2 page

PNP Silicon

Plastic-Encapsulate

Transistor

Features

•

Capable of 0.25Watts of Power Dissipation.

•

Collector-current 0.1A

•

Collector-base Voltage 60V

•

Operating and storage junction temperature range: -55

OC to +150OC

Electrical Characteristics @ 25OC Unless Otherwise Specified

Symbol

Parameter

Min

Typ

Max

Units

OFF CHARACTERISTICS

V (BR)CEO

Collector-Emitter Breakdown Voltage

(IC=

-1.0mAdc, I

B=0)

-50

---

Vdc

V (BR)CBO

Collector-Base Breakdown Voltage

(IC=

-5.0µAdc, I

E=0)

-60

---

Vdc

V (BR)EBO

Emitter-Base Breakdown Voltage

(IE=

-50µAdc, I

C=0)

-5.0

---

Vdc

ICBO

Collector Cutoff Current

(VCB=

-60Vdc, I

E=0)

---

-0.1

µAdc

IEBO

Emitter Cutoff Current

(VEB=

-5.0Vdc, I

C=0)

---

-0.1

µAdc

ON CHARACTERISTICS

h FE

DC Current Gain

(IC=

-1.0mAdc, VCE=-6.0Vdc)

90

200

600

---

V CE(sat)

Collector-Emitter Saturation Voltage

(IC=

-100mAdc, I

B=

-10mAdc)

---

-0.18

-0.3

Vdc

SMALL-SIGNAL CHARACTERISTICS

fT

Transistor Frequency

(IC=10mAdc, VCE=

-6.0Vdc )

100

---

MHz

CLASSIFICATION OF HFE (1)

Rank

R

Q

P

K

Range

90-180

135-270

200-400

300-600

Revision:

E

201

6/02/02

omponents

20736 Marilla Street Chatsworth

!"#

$% !"#

www.mccsemi.com

1 of 2

2SA733-R

2SA733-P

2SA733-K

2SA733-Q

•

Lead Free Finish/Rohs Compliant ("P"Suffix designates

Compliant. See ordering information)

•

Epoxy meets UL 94 V-0 flammability rating

•

Moisure Sensitivity Level 1

INCHES

MM

DIM

MIN

MAX

MIN

MAX

NOTE

A

.175

.185

4.45

4.70

B

.175

.185

4.45

4.70

C

.500

---

12.70

---

D

.016

.020

0.41

0.63

E

.135

.145

3.43

3.68

.095

.105

2.42

2.67

Straight Lead

A

E

B

C

D

G

E

C

B

STRAIGHT LEAD BENT LEAD

BULK PACK

AMMO PACK

* For ammo packing detailed specification, click here to visit our website

of product packaging for details.

.

173

.

220

4.40

5.60

Bent Lead

G

TO-92

DIMENSIONS

Halogen free available upon request by adding suffix "-HF"

•

Cob

Collector output capacitance

(

V

C

B=-10Vdc, IE=0,f=1MHz )

6

---

pF

NF

Noise figure

(

V

C

E=-6Vdc, IC=-03mAdc, )

20

---

dB

(Rg=10kΩ,f=100HZ )

Micro Commercial Components

M C C

TM
