2SB772-R_13 datasheet(1/2 Pages) MCC

部件名	2SB772-R

功能描述	PNP Silicon Plastic-Encapsulate Transistor

PDF	2 Pages

Scroll/Zoom	100%

制造商	MCC [Micro Commercial Components]

网页	http://www.mccsemi.com

标志

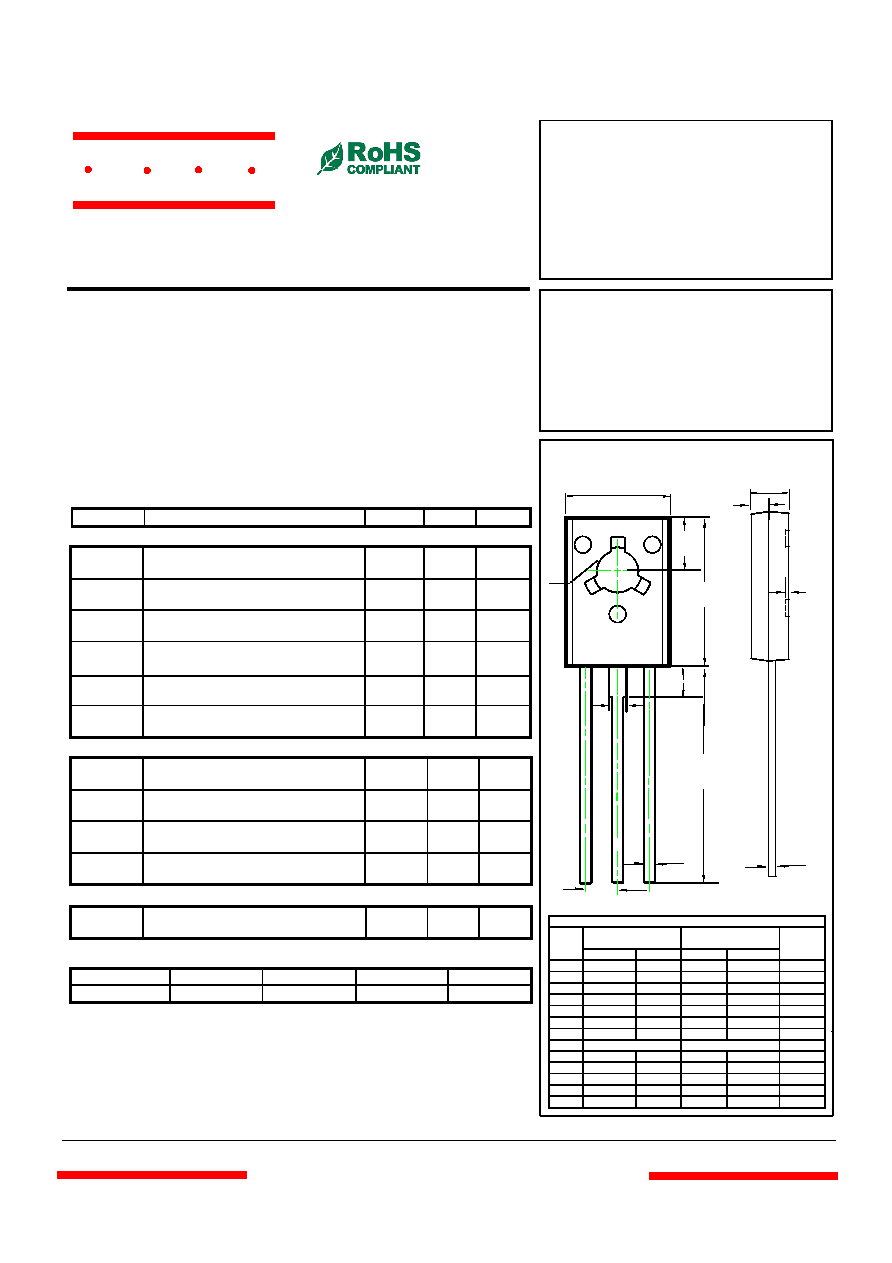

1 / 2 page

2SB772

-R

PNP Silicon

Plastic-Encapsulate

Transistor

Features

Electrical Characteristics @ 25

OC Unless Otherwise Specified

Symbol

Parameter

Min

Max

Units

OFF CHARACTERISTICS

V (BR)CEO

Collector-Emitter Breakdown Voltage

(IC=10mAdc, IB=0)

30

---

Vdc

V (BR)CBO

Collector-Base Breakdown Voltage

(I C=100uAdc, IE=0)

40

---

Vdc

V (BR)EBO

Emitter-Base Breakdown Voltage

(I E=100uAdc, IC=0)

5.0

---

Vdc

I CBO

Collector Cutoff Current

(V CB=40Vdc, IE=0)

---

1.0

uAdc

ICEO

Collector Cutoff Current

(V CE=30Vdc, IB=0)

---

1.0

uAdc

IEBO

Emitter Cutoff Current

(V EB=6.0Vdc, IC=0)

---

1.0

uAdc

ON CHARACTERISTICS

h FE(1)

DC Current Gain

(IC=1.0Adc, VCE=2.0Vdc)

60

400

---

h FE(2)

DC Current Gain

(IC=100mAdc, VCE=2.0Vdc)

32

---

V CE(sat)

Collector-Emitter Saturation Voltage

(I C=2.0Adc, IB=0.2Adc)

---

0.5

Vdc

V BE(sat)

Base-Emitter Saturation Voltage

(I C=2.0Adc, IB=0.2Adc)

---

2.0

Vdc

SMALL-SIGNAL CHARACTERISTICS

f T

Transistor Frequency

(I C=0.1Adc, VCE=5.0Vdc, f=10MHz)

50

---

MHz

CLASSIFICATION OF HFE (1)

Rank

R

O

Y

GR

Range

60-120

100-200

160-320

200-400

omponents

20736 Marilla

Street Chatsworth

!"#

$% !"#

MCC

Revision: B

2013/01/01

TM

Micro Commercial Components

www.mccsemi.com

1 of 2

0.291

0.307

7.40

7.80

0.417

0.433

10.60

11.00

0.602

0.618

15.30

15.70

4

1

3.90

4.10

0.118

0.126

3.00

3.20

0.026

0.034

0.66

0.86

0.046

0.054

1.17

1.37

0.090TYP

2.290TYP

0.098

0.114

2.50

2.90

D

B

N

A

C

E

F

G

Q

K

M

N

0.043

0.059

1.10

1.50

Q

0.018

0.024

0.45

0.60

L

J

PIN 1.

EMITTER

PIN 2.

COLLECTOR

PIN 3.

BASE

1

2

3

L

0.083

0.091

2.10

2.30

M

0.000

0.012

0.00

0.30

DIMENSIONS

2SB772

-O

2SB772

-Y

2SB772

-GR

•

Lead Free Finish/RoHS Compliant (Note1) ("P" Suffix designates

RoHS Compliant. See ordering information)

•

Epoxy meets UL 94 V-0 flammability rating

•

Moisure Sensitivity Level 1

•

Capable of 1.25Watts of Power Dissipation.

•

Collector-current 3.0A

•

Collector-base Voltage 40V

•

Operating and storage junction temperature range: -55

OC to +150OC

Notes: 1. High Temperature Solder Exemption Applied, see EU Directive Annex Notes 7.

Halogen free available upon request by adding suffix "-HF"

•
