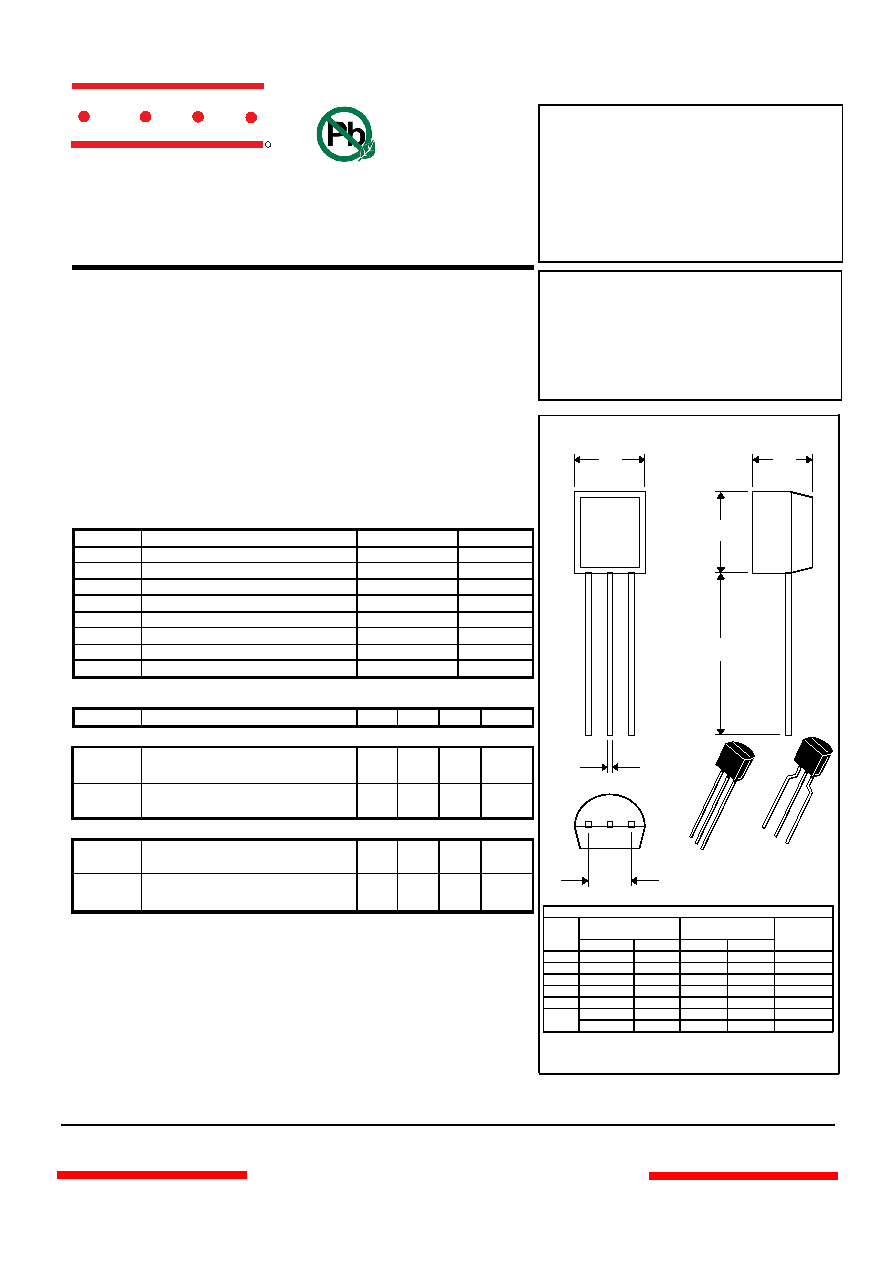

2SC1923-R datasheet(1/3 Pages) MCC

部件名	2SC1923-R

功能描述	Power Silicon NPN Transistor

PDF	3 Pages

Scroll/Zoom	100%

制造商	MCC [Micro Commercial Components]

网页	http://www.mccsemi.com

标志

1 / 3 page

Power Silicon

NPN Transistor

Features

•

General Purpose Switching Application

Maximum Ratings

Symbol

Rating

Unit

VCEO

Collector-Emitter Voltage

30

V

VCBO

Collector-Base Breakdown Voltage

40

V

VEBO

Emitter-Base Voltage

4.0

V

IC

Collector Current

20

mA

RthJA

Thermal Resistance Junction To Ambient

1

250

°C/W

PC

Collector Power Dissipation

100

mW

TJ

Operating Junction Temperature

-55 to +150

OC

TSTG

Storage Temperature

-55 to +150

OC

Electrical Characteristics @ 25

OC Unless Otherwise Specified

Symbol

Parameter

Min

Typ

Max

Units

OFF CHARACTERISTICS

ICBO

Collector-Base Cutoff Current

(VCB=18Vdc, IE=0)

---

0.

5

µAdc

IEBO

Emitter-Base Cutoff Current

(VEB=4.0Vdc, IC=0)

---

0.

5

µAdc

ON CHARACTERISTICS

hFE-1

DC Current Gain*

(IC=1.0mAdc, VCE=6.0Vdc)

40

---

200

---

fT

Transition Frequency

(VCE=6.0Vdc, IC=

1.0mAdc)

---

500

---

MHZ

Note: hFE(1) Classification R: 40~80, O: 70~140, Y: 100~200

omponents

20736 Marilla

Street Chatsworth

!"#

$% !"#

Revision: A

2016/06/08

www.mccsemi.com

1 of 3

•

Lead Free Finish/Rohs Compliant ("P"Suffix designates RoHS

Compliant. See ordering information)

2SC19

23-R

2SC19

23-O

2SC19

23-Y

•

Epoxy meets UL 94 V-0 flammability rating

•

Moisure Sensitivity Level 1

INCHES

MM

DIM

MIN

MAX

MIN

MAX

NOTE

A

.175

.185

4.45

4.70

B

.175

.185

4.45

4.70

C

.500

---

12.70

---

D

.016

.020

0.41

0.63

E

.135

.145

3.43

3.68

.095

.105

2.42

2.67

Straight Lead

A

E

B

C

D

G

E

C

B

E

C

B

BENT LEAD

STRAIGHT LEAD

BULK PACK

AMMO PACK

* For ammo packing detailed specification, click here to visit our website

of product packaging for details.

.

173

.

220

4.40

5.60

Bent Lead

G

TO-92

DIMENSIONS

Halogen free available upon request by adding suffix "-HF"

•
