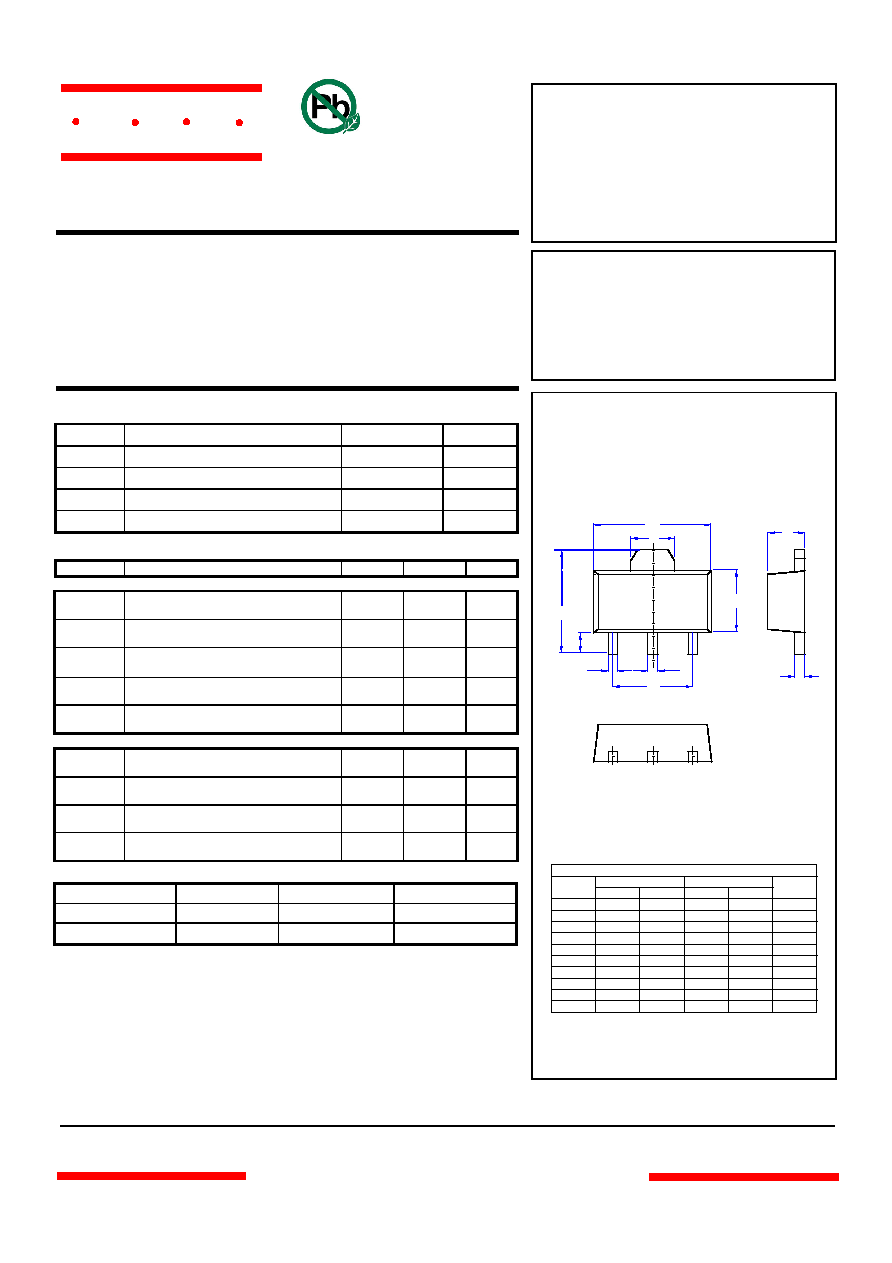

background image

NPN

Plastic-Encapsulate

Transistors

Features

•

Ideally Suited For Automatic Instertion

•

Untral Small Surface Mount Package

SOT-89

omponents

20736 Marilla

Street Chatsworth

!"#

$% !"#

MCC

Revision: B

2013/01/01

TM

Micro Commercial Components

www.mccsemi.com

1 of 3

Maximum Ratings @ Ta = 25

(unless otherwise noted)

Symbol

Parameter

Value

Unit

IC

Collector Current

2

A

PD

Total Device Dissipation

0.5

W

TJ

Junction Temperature

150

TSTG

Storage Temperature Range

-55 to +150

Electrical Characteristics @ 25

OC Unless Otherwise Specified

Symbol

Parameter

Min

Max

Units

OFF CHARACTERISTICS

V(BR)CEO

Collector-Emitter Breakdown Voltage

(IC=1mAdc,IB=0)

50

V

V(BR)CBO

Collector-Base Breakdown Voltage

(IC=50

µAdc,I

E=0)

60

V

V(BR)EBO

Collector-Base Breakdown Voltage

(IE=50

µAdc,I

C=0)

6V

ICBO

Collector-Base Cutoff Current

(VCB=60Vdc, IE=0)

0.1

µAdc

IEBO

Emitter-Base Cutoff Current

(VEB=5Vdc, IC=0)

0.1

uAdc

ON CHARACTERISTICS

hFE

DC Current Gain

(IC=0.5Adc, VCE=2Vdc)

82

270

VCE(sat)

Collector-Emitter Saturation Voltage

(IC=1Adc, IB=50mAdc)

0.35

Vdc

fT

Transition Frequency

(VCE=2Vdc,IC=500mAdc,f=100MHZ)

210(typ)

MHZ

Cob

Collector Output Capacitance

(VCB=10Vdc,IE=0,f=1MHZ)

25(typ)

PF

CLASSIFICATION OF

hFE

Rank

P

Q

R

Range

82-180

120-270

180~390

Marking

DKP

DKQ

DKR

2SC4672-R

25

B

A

E

D

G

H

F

K

J

C

1.55

.061

REF.

123

1.BASE

2.COLLECTOR

3.EMITTER

•

Lead Free Finish/RoHS Compliant ("P" Suffix designates

RoHS Compliant. See ordering information)

•

Epoxy meets UL 94 V-0 flammability rating

•

Moisure Sensitivity Level 1

2SC4672-P

2SC4672-Q

Halogen free available upon request by adding suffix "-HF"

•
