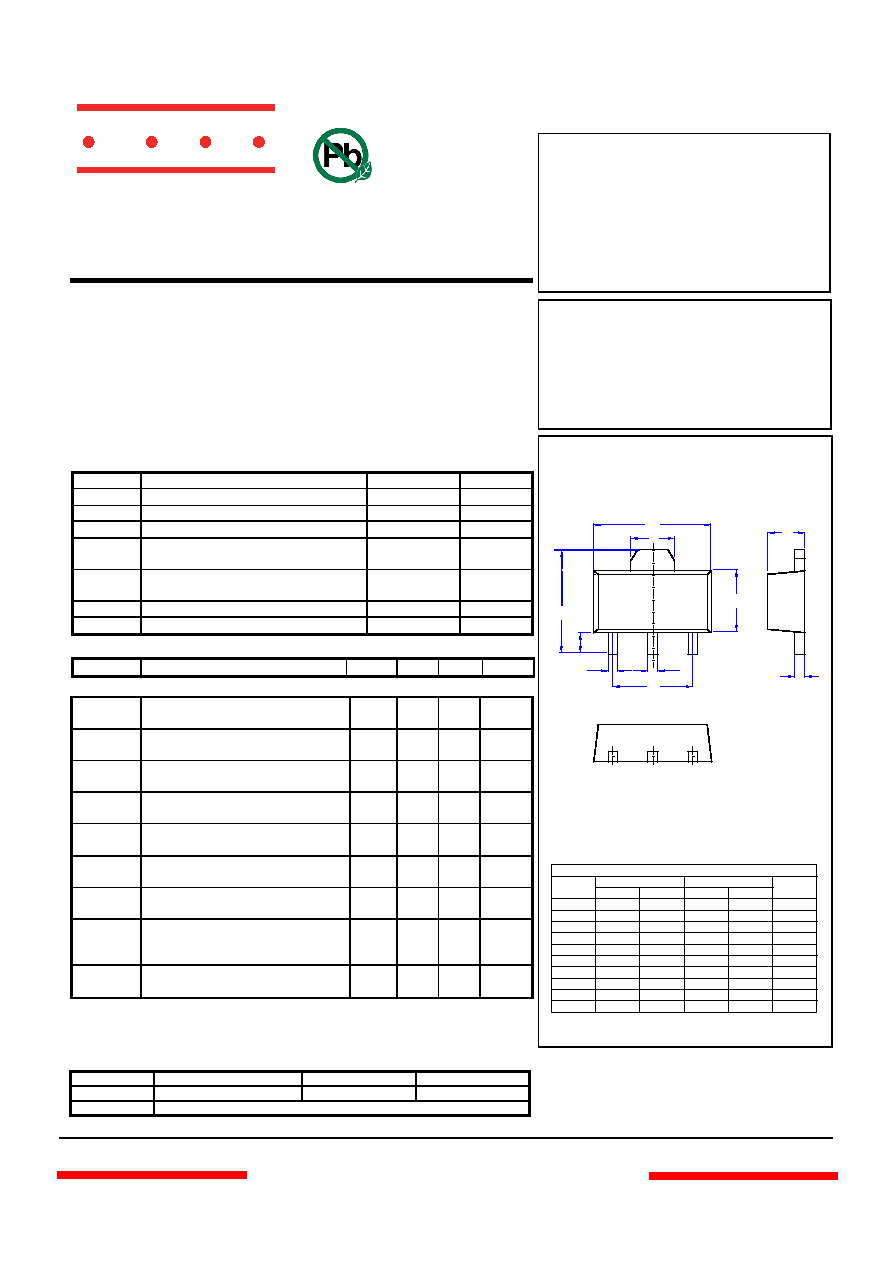

2SD1898

-P

NPN Silicon

Power Transistors

Features

•

High VCEO, VCEO=80V

•

High IC, IC=1.0A(DC)

Maximum Ratings

Symbol

Rating

Value

Unit

VCEO

Collector-Emitter Voltage

80

V

VCBO

Collector-Base Voltage

100

V

VEBO

Emitter-Base Voltage

5.0

V

IC

Collector Current, DC

Pulse

(1)

1.0

2.0

A

PC

Collector Power Dissipation

(2)

0.5

2.0

W

TJ

Junction Temperature

-55 to +150

OC

TSTG

Storage Temperature

-55 to +150

OC

Electrical Characteristics @ 25

°C Unless Otherwise Specified

Symbol

Parameter

Min

Typ

Max

Units

OFF CHARACTERISTICS

VCEO

Collector-Emitter Breakdown Voltage

(IC=1.0mAdc)

80

---

Vdc

VCBO

Collector-Base Breakdow n Voltage

(IC=50uAdc)

100

---

Vdc

VEBO

Emitter-Base Breakdown Voltage

(IE=50uAdc)

5.0

---

Vdc

ICBO

Collector Cutoff Current

(VCB=80Vdc)

---

1.0

uAdc

IEBO

Emitter Cutoff Current

(VEB=4.0Vdc, IC=0)

---

1.0

uAdc

hFE

DC Current Transfer Ratio

(3)

(VCE=3.0Vdc, IC=0.5Adc)

82

---

390

---

VCE(sat)

Collector-Emitter Saturation Voltage

(IC/IB=500mA/20mA)

---

0.15

0.4

Vdc

fT

Transition Frequency

(VCE=10Vdc, IE=50mAdc,

f=100MHz)

---

100

---

MHz

Cob

Output Capacitance

(VCB=10Vdc, IE=0, f=1.0MHz)

---

20

---

pF

(1) Pw=20ms, duty=1/2

(2) When mounted on a 40x40x0.7mm ceramic board.

(3) Measured using pulse current

SOT-89

1. BASE

2. COLLECTOR

3. EMITTER

Revision:

B

20

13/01/01

omponents

20736 Marilla

Street Chatsworth

!"#

$% !"#

www.mccsemi.com

1 of 2

25

B

A

E

D

G

H

F

K

J

C

1.55

.061

REF.

123

2SD1898

-Q

2SD1898

-R

CLASSIFICATION OF hFE

Rank

P

Q

R

Range

82-180

120-270

180-390

Marking

DF

•

Lead Free Finish/RoHS Compliant ("P" Suffix designates

RoHS Compliant. See ordering information)

•

Epoxy meets UL 94 V-0 flammability rating

•

Moisure Sensitivity Level 1

Halogen free available upon request by adding suffix "-HF"

•

Micro Commercial Components

M C C

TM
