RS3JB 数据表(PDF) 3 Page - Galaxy Semi-Conductor Holdings Limited

部件名 RS3JB
功能描述  Fast Recovery Rectifier
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  BILIN [Galaxy Semi-Conductor Holdings Limited]
网页  http://www.galaxycn.com
标志 BILIN - Galaxy Semi-Conductor Holdings Limited

RS3JB 数据表(HTML) 3 Page - Galaxy Semi-Conductor Holdings Limited

  RS3JB Datasheet HTML 1Page - Galaxy Semi-Conductor Holdings Limited RS3JB Datasheet HTML 2Page - Galaxy Semi-Conductor Holdings Limited RS3JB Datasheet HTML 3Page - Galaxy Semi-Conductor Holdings Limited RS3JB Datasheet HTML 4Page - Galaxy Semi-Conductor Holdings Limited
Zoom Inzoom in Zoom Outzoom out
 3 / 4 page
background image
Fast Recovery Rectifier
RS3JB
SMB205AA
www.gmesemi.com
Rev.B
Production specification
Ratings and Characteristic Curves (TA=25°C unless otherwise noted)

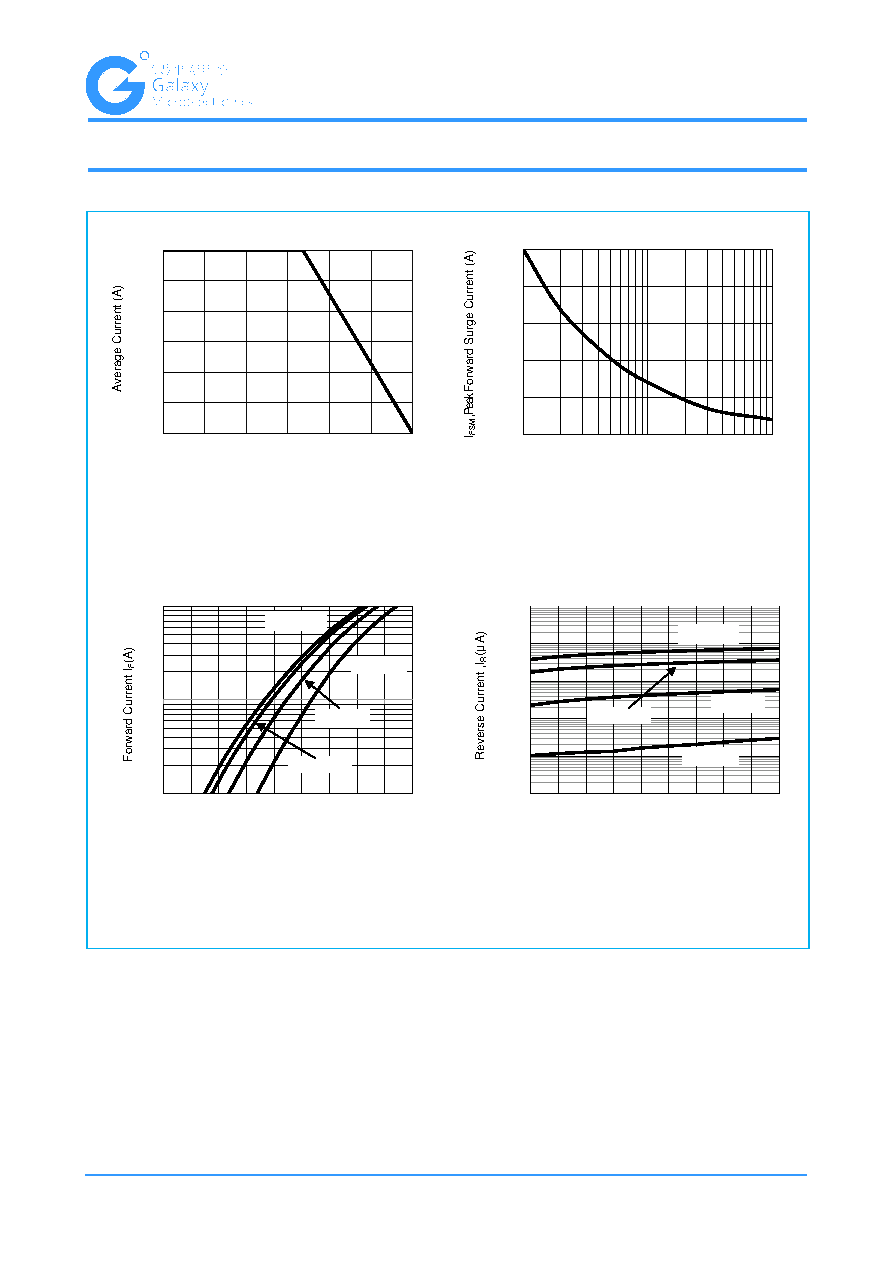

Fig.1-Forward Current Derating Curve
Fig.2- Surge Current Derating Curve
Fig.3- Typical Forward Voltage Characteristic
Fig.4- Typical Reverse Characteristic
