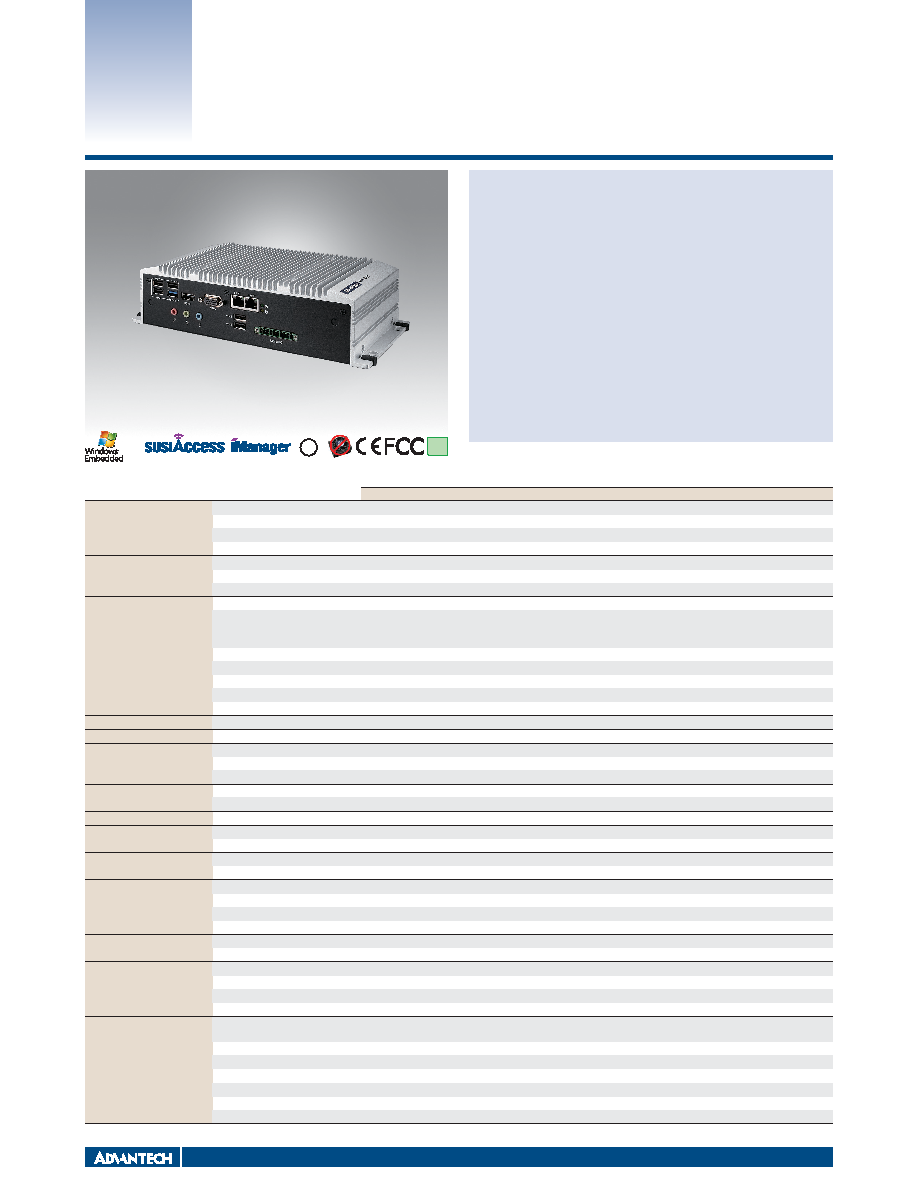

Fanless Embedded Box PCs

Features

ARK-2121F

ƒ VGA and HDMI dual independent display

ƒ 6 x COM, 6 x USB, isolated DIO

ƒ -20 ~ 70° C extend temperature operating

ƒ Mini PCIe expansion with SIM holder for communication module

ƒ mSATA and 1 x 2.5" SATA storage device

ƒ Optional DVI/2nd HDMI/4x GbE by project support

ƒ Internal USB for security dongle

with Multiple I/Os Fanless Box PC

LISTED

E180881

RoHS

COMPLIANT

2002/95/EC

Specifications

ARK-2121F-U0A1E

Processor System

CPU

Intel Celeron Processor J1900 Quad Core SoC

Frequency

2.0 GHz, turbo boost up to 2.42 GHz

L2 Cache

2 MB

BIOS

AMI EFI

Memory

Technology

DDR3L 1333 MHz

Max. Capacity

8 GB

Socket

1 x 204-pin SO-DIMM

Graphics

Chipset

Intel Celeron J1900 SoC integrated, 7th Gen. Intel Graphic core

Graphic Engine

DirectX 11.1, OCL 1.2, OGL 3.2

Encode: H.264, MPEG2/4, VC1, WMV9

Decode: H.264, MPEG2

VGA

Up to 2048 x 1152 @ 60Hz

HDMI

1 HDMI port (default), HDMI 1.4a for HD video playback, 1080P at 60Hz (2nd HDMI support by project only)

DisplayPort*

Up to 2560 x 1600 at 60Hz (by Project only)

DVI-D

Up to 1920 x 1200 at 60Hz (by Project only)

Dual Display

Yes, VGA + HDMI

Ethernet

LAN1/LAN2

10/100/1000Mbps Intel i210 GbE, support Wake On LAN, optional LAN3/LAN4 support by project

Audio

Interface

Realtek ALC888S, High Definition Audio. Line-out,Mic-in,Line-in

IO Interface

Serial Ports

6 x RS-232/422/485 with auto flow control

USB Interface

1 x USB 3.0, 5 x USB 2.0, 1 x internal USB 2.0 for security dongle

PS/2

Yes ( by project only)

Other

Watchdog timer

255 levels timer interval, setup by software

Digital I/O

4ch digital input and 4ch digital output with 3kV isolation

Expansion

Mini PCIe

2 x full size Mini PCIe (1 with SIM holder)

Storage

HDD

Supports one SATA 2.5" HDD Bay (Compatible with 12.5mm height HDD) (Max. Data Transfer Rate 600 MB/s)

mSATA

1 x full size mSATA socket, with USB signal co-lay

Software Support

Microsoft Windows

WES8, Windows 8, WES7, Windows 7

Linux

Support by project

Power Requirement

Power Type

ATX

Power Input Voltage

Minimum Power Input

12 V, 1.5 A

Power Adapter

AC to DC, DC19 V/3.42 A, 65 W (Optional)

Power Consumption

Typical

8.4W

Max.

16.2W

Mechanical

Construction

Aluminum housing

Mounting

Din-Rail mounting, Desk/wall-mounting, VESA mounting

Dimensions (W x H x D)

264.5 x 68.4 x 133.0 mm (10.41" x 2.69" x 5.24")

Weight

2.3 kg (5.07 lb)

Environment

Operating Temperature

With extended temperature peripherals: -20 ~ 70° C (-4 ~ 158° F) with 0.7m/s air flow

With 2.5-inch hard disk 0 ~ 45° C (32 ~ 112° F) with 0.7m/s air flow

Storage Temperature

- 40 ~ 85° C ( -40 ~ 185° F)

Relative Humidity

95% @ 40° C (non-condensing)

Vibration During Operation

With SSD: 3 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis.

Shock During Operation

With SSD: 30 G, IEC 60068-2-27, half sine, 11 ms duration

EMC

CE/FCC Class A, CCC, BSMI

Safety Certifications

UL, CB, CCC, BSMI

* DisplayPort is supported by project only.

All product specifications are subject to change without notice

Last updated : 5-Oct-2015
