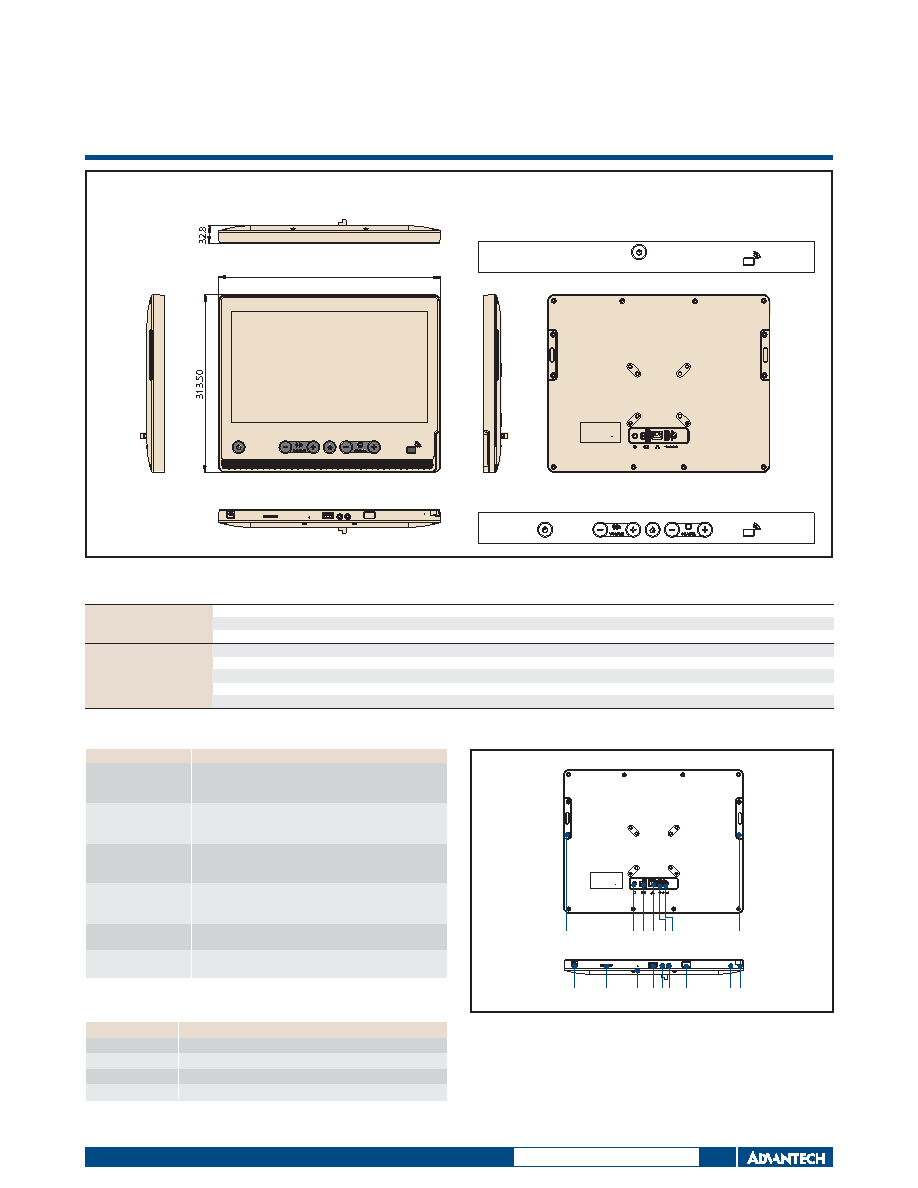

Dimensions

Unit: mm

392

HIT-R151

Ordering Information

Part No.

Description

HIT-R151BR-AMW1E

15.6" Wide Screen, Intel J1900, Resistive Touch, 4G RAM,

500G HDD, Smart Card Reader, Camera, WiFi, BT, RFID,

Medical Adapter, Win8 Embedded Standard

HIT-R151BP-AMW1E

15.6" Wide Screen, Intel J1900, Pcap Touch, 4G RAM,

500G HDD, Smart Card Reader, Camera, WiFi, BT, RFID,

Medical Adapter, Win8 Embedded Standard

HIT-R151FR-AMW1E

15.6" Wide Screen, Freescale iMX6, Resistive Touch,

1G RAM, 8G eMMC, Smart Card Reader, Camera, RFID,

Medical Adapter

HIT-R151FP-AMW1E

15.6" Wide Screen, Freescale iMX6, PCap Touch, 1G RAM,

8G eMMC, Smart Card Reader, Camera, RFID, Medical

Adapter

HIT-R151FR-APW1E

15.6" Wide Screen, Freescale iMX6, Resistive Touch, 1G

RAM, 8G eMMC, Smart Card Reader, Camera, RFID, POE

HIT-R151FP-APW1E

15.6" Wide Screen, Freescale iMX6, Pcap Touch, 1G RAM,

8G eMMC, Smart Card Reader, Camera, RFID, POE

Accessories

Part Number

Description

HIT-R151-HSK0E

HIT-R151 Handset Kit

HIT-R151-MSR0E

HIT-R151 Magnetic Card Reader

PIT-ARM-WM0E

Swing Arm (Wall Mount Type, Maximum Loading: 6kg)

PIT-ARM-CM0E

Swing Arm (Ceiling Mount Type, Maximum Loading: 6kg)

Fully- Integrated I/O

A. TV Tuner (Optional)

B. 2-Pin GPIO

C. RJ-45 LAN port

D. USB 2.0

E. DC Inlet

F. Handset Dock

G. RJ-12 Handset Connector

H. SD slot (iMX6 only)

I. Power Button

J. USB 2.0 x 1 (iMX6), USB 2.0 x 2 (Baytrail)

K. MIC in

L. Line out

M. Barcode Scanner (optional)

N. Microphone

O. Smart Card Reader

Front Touch Button Layout of 5-key type for Resistive touch :

Front Touch Button Layout (PCAP) 1 Key Type :

Specifications (Cont.)

F

G

H

J K

M

NO

L

I

A BC DE

F

Power Supply

AC/DC Adapter

Input Voltage

Output Voltage

Environment

Operating Temperature

0 ~ 40° C

IP Rating

IP65 Front Panel

Vibration

1 G

Shock

10 G peak acceleration (11 msec, duration)

EMC & Safety Cert.

CE, FCC, CCC, BSMI, CB, UL ITE & Medical, EN 60950 & 60601-1 approved
