PCDF24-R68M-RC datasheet(1/2 Pages) ALLIED

部件名	PCDF24-R68M-RC

功能描述	Power Inductors

PDF	2 Pages

Scroll/Zoom	100%

制造商	ALLIED [Allied Components International]

网页	http://www.alliedcomponents.com

标志

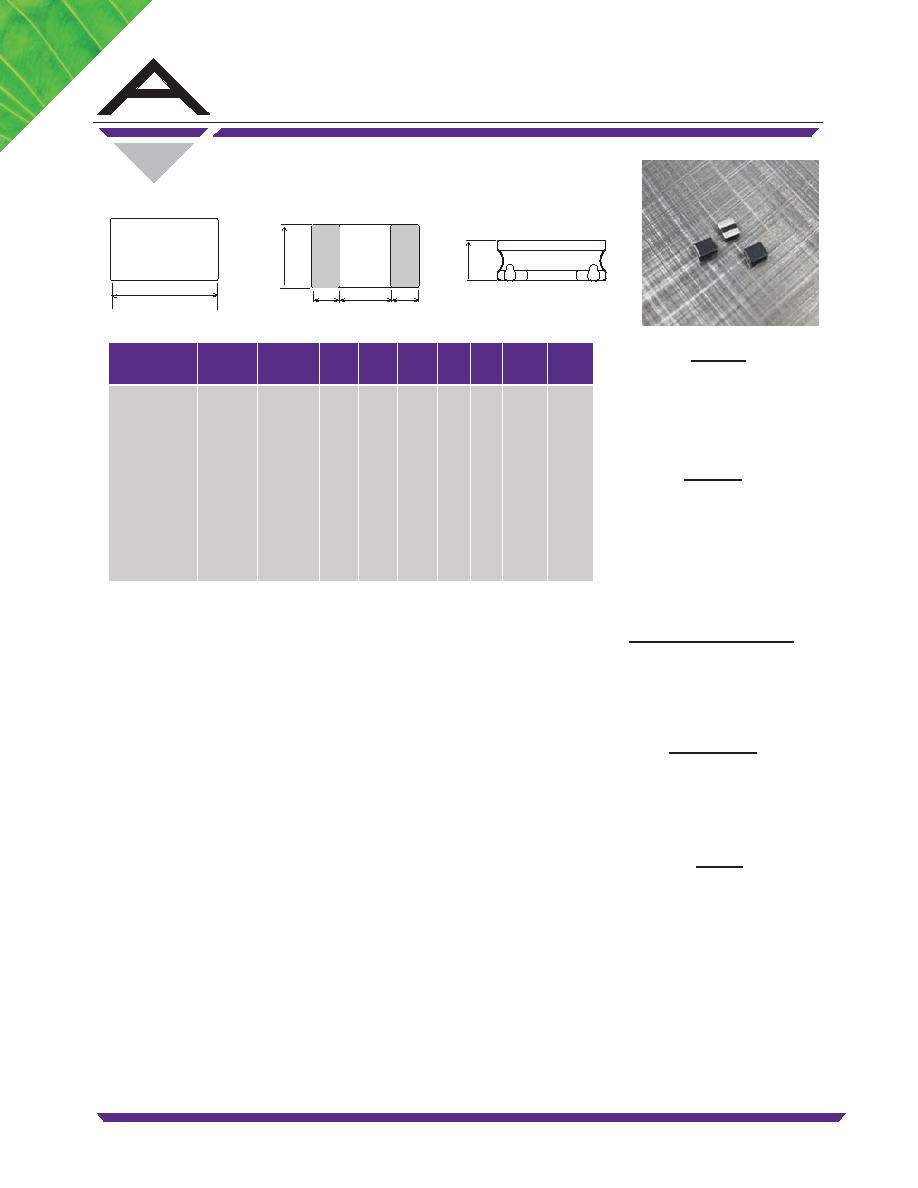

1 / 2 page

PCDF24-RC

15

All specifications subject to change without notice.

ALLIED COMPONENTS INTERNATIONAL

949-356-1780

www.alliedcomponents.com

RoHS

Power Inductors

Revised 03/01/2017

Features

• SMD Shielded Inductor

• For Power Circuits

• Lead (Pb) and Halogen-Free

• Low Profile

Electrical

Inductance Range: .24µH to 2.2µH

Tolerance: 20% over entire range

Operating Temp: -40ºC to +125ºC

Isat: The Current at which the Inductance will drop

by no more than 30% of its initial value w/o current

Resistance to Soldering Heat

Pre-Heat 150ºC, 1 Min.

Solder Composition: Sn/Ag3.0/Cu0.5

Solder Temp: 260ºC ±5ºC for 10 sec ± 1 sec.

Test Equipment

(L): HP4284A LCR Meter

(RDC): Chen Hwa CH16502A

(IDC): HP4284A with HP42841A or

Physical

Packaging: 2000 pieces per 13 inch Reel

Marking: None

Chen Hwa 1061 + Chen Hwa 301A

Allied

Part

Number

Inductance

(µH)

Tolerance

(%)

Test

Freq.

(MHz)

DCR

(Ω)

Typ.

Isat

(A)

Typ.

Irms

(A)

Typ.

PCDF24-R24M-RC

PCDF24-R33M-RC

PCDF24-R47M-RC

PCDF24-R56M-RC

PCDF24-R68M-RC

PCDF24-1R0M-RC

PCDF24-1R2M-RC

PCDF24-1R5M-RC

PCDF24-2R2M-RC

.24

.33

.47

.56

.68

1.0

1.2

1.5

2.2

20

1, 0.1V

.030

.032

.034

.045

.046

.060

.090

.130

.042

.044

.046

.054

.055

.080

.108

.169

4.80

4.30

4.00

3.80

3.70

3.40

2.90

2.70

2.40

4.30

3.80

3.30

3.00

2.90

2.70

2.30

2.10

1.90

3.60

3.50

3.40

3.30

2.60

2.30

1.80

3.10

3.00

2.90

2.80

2.20

1.90

1.50

2.5 -0.1/+0.2

2.0 -0.05/+0.35

1.0 Max

0.85 Ref.

0.80 Ref.

V

0.85 Ref.

Irms: The Current at which the Temperature will rise

by no more than 40ºC. from ambient

See Page 2 for Performance Graphs.

Unit: mm

DCR

(Ω)

Max

Isat

(A)

Max

Irms

(A)

Typ.
