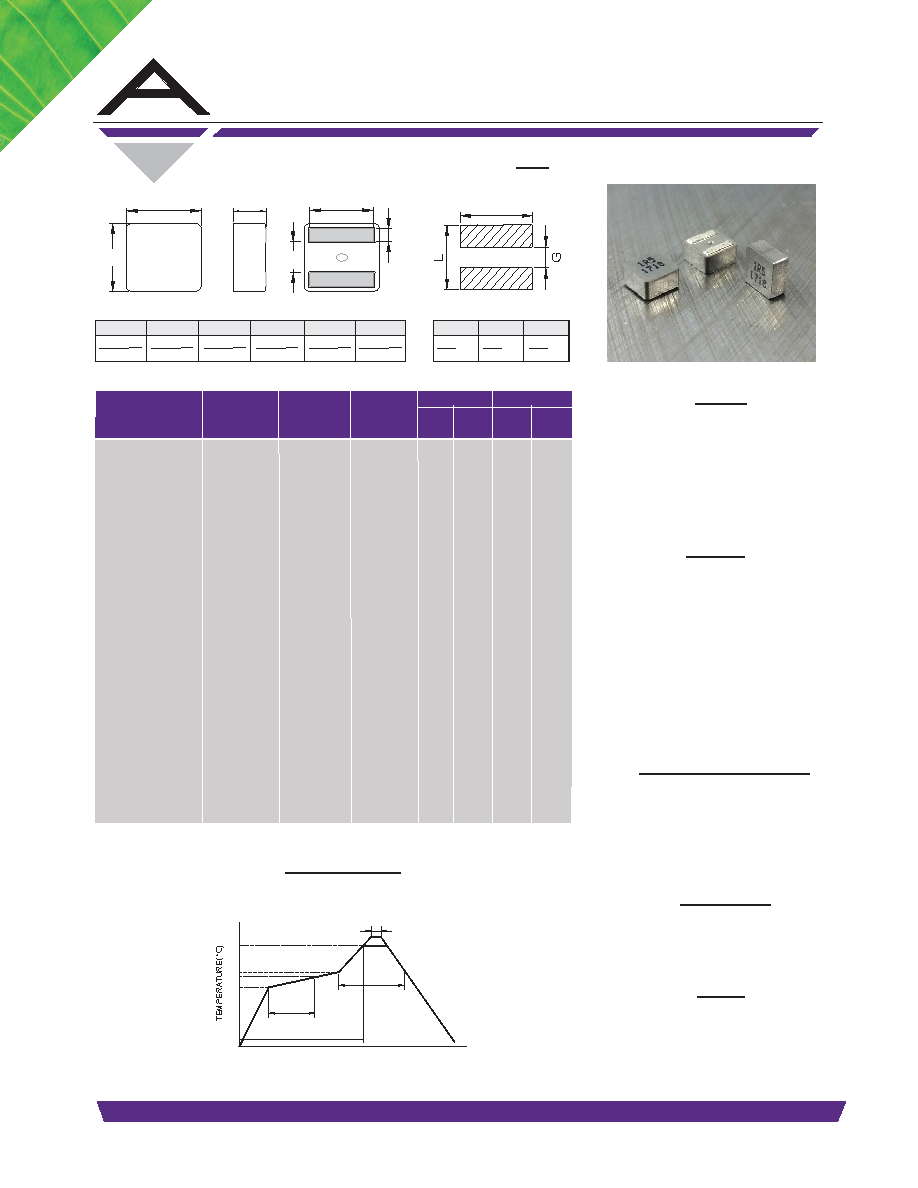

1 / 3 page  Shielded High Current Power Choke PCXA503 15 DCR (mΩ) Typ.@25°C Isat (A) Allied Part Number Inductance (µH) ±20% @ 0A ALLIED COMPONENTS INTERNATIONAL 949-356-1780 www.alliedcomponents.com RoHS All specifications subject to change without notice. 04/13/2017 Irms (A) Typ. Features • High Operating Temperature Range • High Efficiency Electrical Inductance Range: 0.15µH to 4.7µH Tolerance: ±20% Across entire series Operating Temp: -40ºC to +125ºC Test Equipment (L): HP4284A LCR meter or equivalent Pre-Heat: 150ºC, 1 minute. Physical Packaging: 2000 pieces per 13 inch reel. Resistance to Soldering Heat Solder Composition: Sn96.5% Ag3% Cu0.5% Solder Temp: 245ºC ± 5ºC DCR: CH16502, Agilent 33420A Mirco- Ohmmeter Marking: EIA Inductance Code/ Date Code Irms: Current at which temp rise without core loss. Isat: Current at which Inductance drop is appoximately 30%. The part temperature (ambient + temp rise) should not exceed 125°C under worst case operating conditions. Test Frequency: 100KHz, 0.1V • Low DCR • Suitable for pick and place ∆ T=20ºC & ∆ T=40ºC Immersion Time: 4 sec. ± 1 sec. 2.10 2.12 3.20 3.75 4.05 4.11 5.14 5.25 6.90 8.80 10.1 11.5 13.2 21.0 33.0 36.0 35.0 28.0 26.0 22.2 22.0 20.0 19.7 16.5 15.0 14.0 12.3 10.0 9.5 8.2 14.3 14.2 13.8 13.7 13.6 13.6 10.1 9.90 9.00 8.50 8.00 7.60 7.20 5.90 4.30 • Very low acoustic noise and very low leakage flux noise. PAGE 1 OF 3 DCR (mΩ) Max@25°C 2.31 2.33 3.52 4.13 4.52 4.52 5.65 5.78 7.60 9.70 11.2 12.7 14.5 23.1 36.3 • High Current with Soft Saturation Depth: Completely cover the termination Reflow times: 3 times max. 60~180s 60~150s 217 150 TIME( sec.) 200 25 480s max. tp(245° C / 20~40s.) PRE-HEATING Reflow Soldering SOLDERING NATURAL COOLING TP(260℃ / 10s max.) 20°C Rise 40°C Rise 22.2 22.2 19.2 18.4 17.7 17.7 13.1 12.9 12.2 11.0 10.5 10.1 9.70 8.10 5.90 Typ Max 32.5 32.0 26.0 24.0 20.2 20.0 18.0 17.6 14.3 13.5 12.5 11.3 9.0 8.7 7.0 MSL: Level 1 Dimensions: Inches (mm) H B C E F A D Recommend PCB Layout L G H A B C D E F 1R0 YYWW .209±.008 (5.3±0.2) .217±.008 (5.5±0.2) .114±.008 (2.9±0.2) .169±.012 (4.3±0.3) .043±.008 (1.1±0.2) .091±.010 (2.3±0.25) .177 (4.5) Ref .079 (2.0) Ref .185 (4.7) Ref PCXA503-R15M PCXA503-R16M PCXA503-R33M PCXA503-R47M PCXA503-R56M PCXA503-R60M PCXA503-R80M PCXA503-R82M PCXA503-1R0M PCXA503-1R2M PCXA503-1R5M PCXA503-1R8M PCXA503-2R2M PCXA503-3R3M PCXA503-4R7M 0.15 0.16 0.33 0.47 0.56 0.60 0.80 0.82 1.00 1.20 1.50 1.80 2.20 3.30 4.70 |
