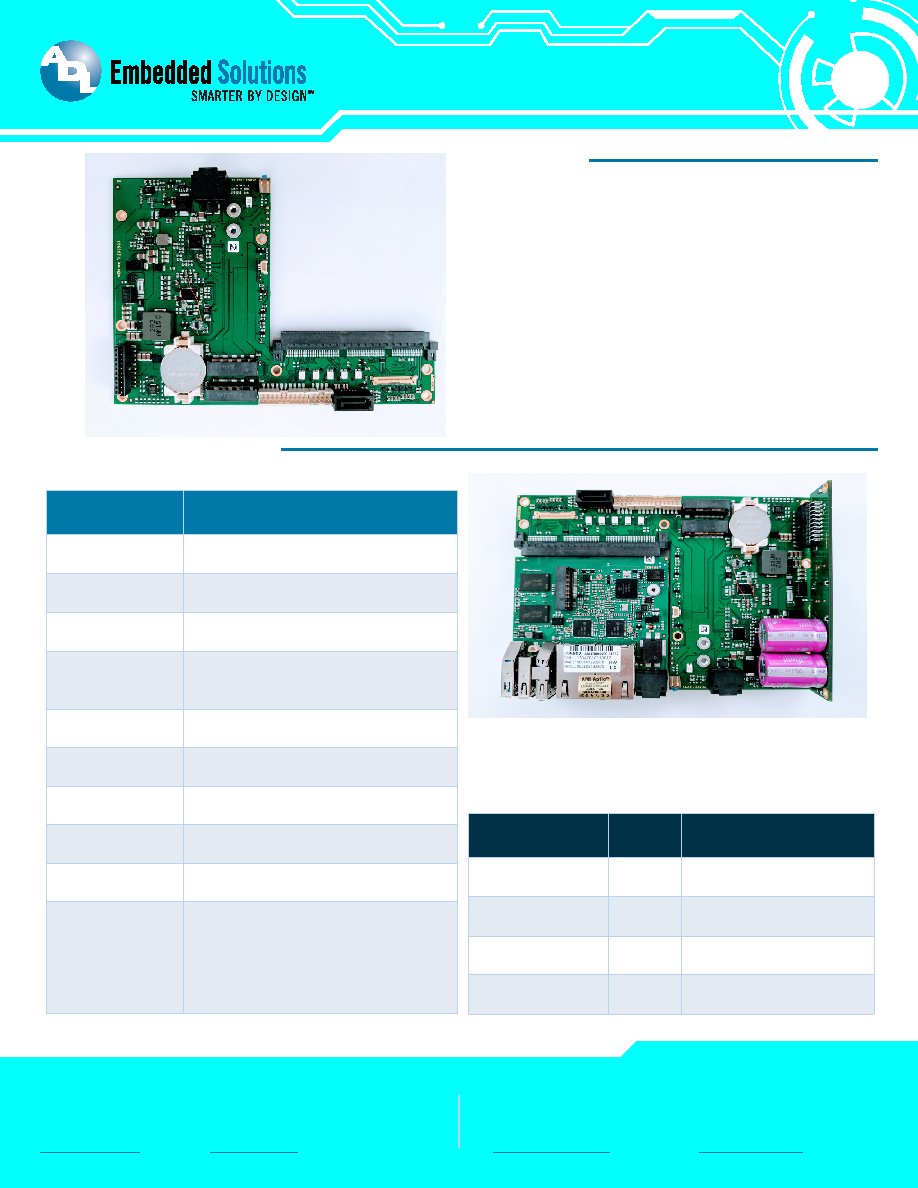

The ADLSEC-1710 board is designed for convenient expansion of the

ADLE3800SEC Bay Trail Atom SBC via its edge-connect architecture.

The ADLE3800SEC plus ADLSEC-1710 L-peripheral combined provide a

complete 3.5” SBC solution with a host of expanded features including M.2

PCIe, SATA, DVI/DP/HDMI or USB3.0, UPS option, and more.

As part of a customer product portfolio, the ADLE3800SEC and

ADLSEC-1710 allows for a single processor, BIOS, firmware, and customer

software across products from small, compact ADLE3800SEC solutions to

more complex 3.5” sized solutions.

adl-usa.com or sales@adl-europe.com

TECHNICAL SPECIFICATIONS

ORDERING INFORMATION

ITEM CODE

PART #

DESCRIPTION

ADLSEC-1710

3.5” SBC-Sized Expansion board

for ADLSEC SBCs.

ADLSEC-UPS50

50 mWh UPS Battery Option; -40C

to 65C.

ADL-LP1

Front LED: Snap-on Panel Indicator.

ADL-LP2

Rear LED: Long,flexible light-guide

for Front Panel Indicator.

ADLSEC-1710

FEATURES

FUNCTIONS

Dimensions

3.5” SBC Footprint: 145mm x 102mm

(5.7” x 4.0”)

Operating Temperature

-40C to 85C

PCIe Expansion

Two PCIe X1 M.2 Key B Sockets with USB2.0:

2280 and 2260. No SATA.

UPS Option

50 mWh UPS Battery module; -40C to 65C

Estimated Capacitor Lifetime = 10yr@25C or

1500hr@65C.**

IPEX Connector

1x Displayport or HDMI or DVI or USB 3.0*

SATA

1x SATA II (3 Gb/s)

GPIO

16 bit GPIO; PCA9535BS Controller; Non-Interrupt

Power

Vin = 20V to 30V with Power Reset Button

Battery

3V Circular CR2032 Socket

LED

1x Front CPU Status

1x Rear Power Status

1x Rear UPS Status

3x Rear Programmable LEDs

Note: LED light-pipe options for front panel indica-

tion available for both front and rear LEDs.

DESCRIPTION

*Not available on all mating SBCs.

**Highly dependent on temperature and charge/discharge cycles.
