Electrical Characteristics

Inductance

[Within]

(μH) ※1

Temperature

Rise Current

(A) ※3

Saturation Current

at 20℃(A) ※2

D.C.R. at 20℃

max(typ) (mΩ)

Part Number

6.30

201610CDMCDDS-R24MC

0.24 ± 20%

20.00

(16.00)

7.20

4.60

201610CDMCDDS-R47MC

0.47 ± 20%

32.00

(26.00)

5.30

4.20

201610CDMCDDS-R68MC

0.68 ± 20%

43.00

(36.00)

4.20

3.30

201610CDMCDDS-1R0MC

1.00 ± 20%

57.00

(48.00)

3.50

2.10

201610CDMCDDS-2R2MC

2.20 ± 20%

138 (115)

2.30

※1 Measuring frequency Inductance at 1MHz,0.1V

※2 Saturation current: This indicates the actual value of D.C. current when the inductance becomes 30% lower than its initial

value.

※3 Temperature rise current: The actual value of D.C. current when the temperature of coil becomes

△T=40℃ (Ta＝25℃).(Test board condition: FR4, Copper=70μm, four-layer PWB t=1.6mm)

201610CDMCD/DS

SMD Power Inductor

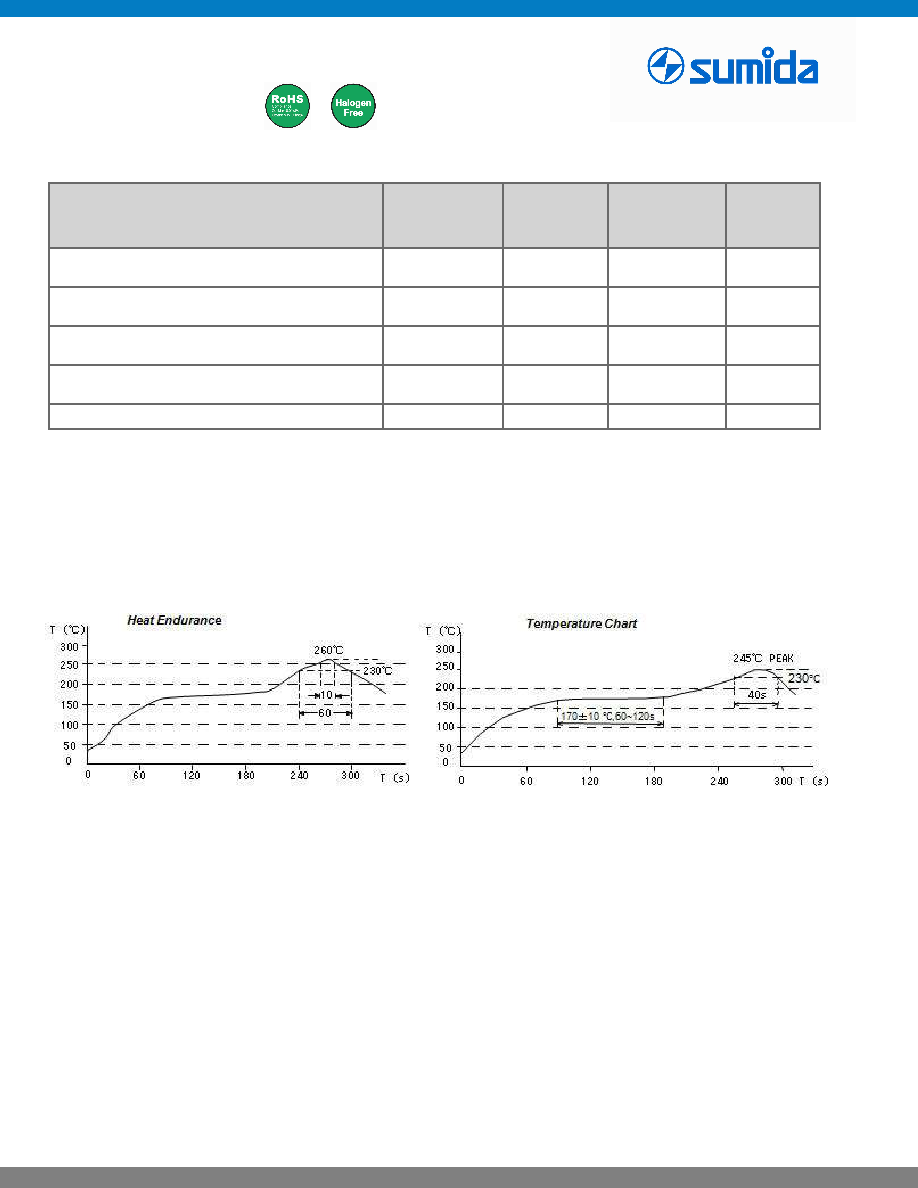

Solder Reflow Condition

Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.

Page 3 of 4

Ver. 2018-05-14
