Performance Charts

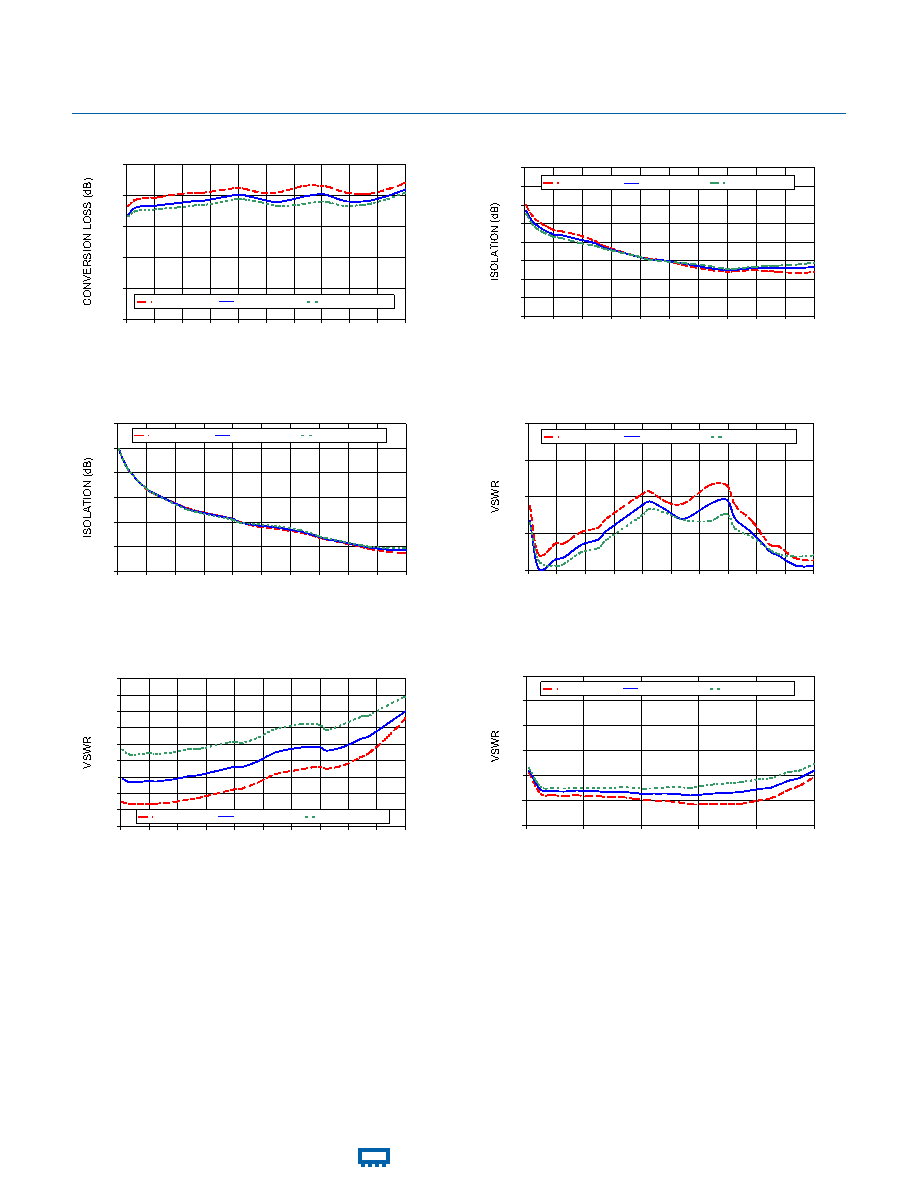

ADE-R11XLH+

CONVERSION LOSS

0.0

2.0

4.0

6.0

8.0

10.0

0

200 400 600 800 1000 1200 1400 1600 1800 2000

FREQUENCY (MHz)

LO= +7 dBm

LO= +10 dBm

LO= +13 dBm

at IF Freq of 30 MHz

ADE-R11XLH+

L-R ISOLATION

0

10

20

30

40

50

60

70

80

0

200 400 600 800 1000 1200 1400 1600 1800 2000

FREQUENCY (MHz)

LO= +7 dBm

LO= +10 dBm

LO= +13 dBm

ADE-R11XLH+

RF VSWR

1.0

1.5

2.0

2.5

3.0

0

200 400 600 800 1000 1200 1400 1600 1800 2000

FREQUENCY (MHz)

LO= +7 dBm

LO= +10 dBm

LO= +13 dBm

ADE-R11XLH+

L-I ISOLATION

20

30

40

50

60

70

80

0

200 400 600 800 1000 1200 1400 1600 1800 2000

FREQUENCY (MHz)

LO= +7 dBm

LO= +10 dBm

LO= +13 dBm

ADE-R11XLH+

LO VSWR

1.0

1.5

2.0

2.5

3.0

3.5

4.0

4.5

5.0

5.5

0

200 400 600 800 1000 1200 1400 1600 1800 2000

FREQUENCY (MHz)

LO= +7 dBm

LO= +10 dBm

LO= +13 dBm

ADE-R11XLH+

IF VSWR

1.0

1.2

1.4

1.6

1.8

2.0

2.2

0

200

400

600

800

1000

FREQUENCY (MHz)

LO= +7 dBm

LO= +10 dBm

LO= +13 dBm
