MCSO2EL 2/4

v1.0

Frequency (std)

32.768kHz

Frequency range

10.0 ~ 50.0kHz

Dimensions

5.0 x 3.2 x 1.7mm

Supply voltage (V )

+5.0V (±5%)

Storage temperature range

-65 to +125°C

Supply current (32.768kHz)

120µA

Driving ability

CMOS

Load

3pF min, 27pF max

Logic levels

‘0’ level = +0.4V max

‘1’ level = V -0.5V min

Start up time

5ms max

Waveform symmetry

40:60 max @ 50%V ..

Rise / fall time

25ns max @ 32.768kHz

Shock resistance

10,000g, 0.3ms, ½ sine

Vibration resistance

80g rms 10.0 ~ 2,000Hz

Soldering condition

260°C, 10 sec max

To request a quotation for the MCSO2EL please use the

configurable options form to choose the options you require

and then submit your configured product to our team. Our

expert advisers are always happy to help with your

requirements and can be contacted on +44 1460 256 100 or

at sales@golledge.com.

Following product selection you will be issued with a seven

character Golledge part number. Your Golledge part number is

the internationally accepted Golledge manufacturing part

number (MPN) that should be used for all project

documentation, including bills of materials (BoMs) and

purchase orders.

If you have any queries regarding any of our documentation

our dedicated sales team will be happy to help.

Input (pad 1)

Output (pad 3)

Open

Enabled

'1' level

Enabled

'0' level

No clock

Human Body Model (HBM) 1A (250V to <500V)

Moisture Sensitivity Level (MSL): 1 (or not applicable)

Ceramic base and lid

SPECIFICATIONS

DD

DD

DD

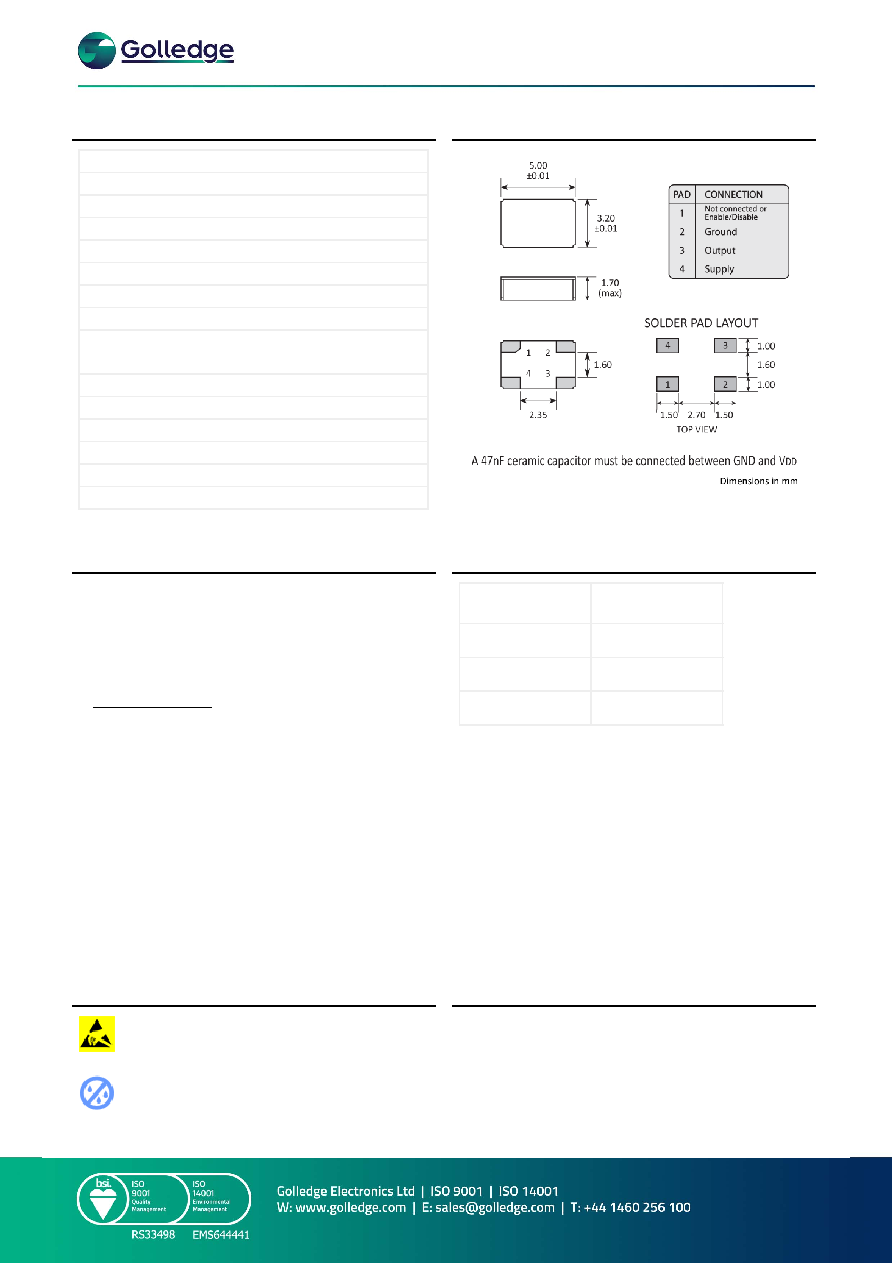

PACKAGE DRAWING

ORDERING INFORMATION

ENABLE / DISABLE FUNCTION

HANDLING & STORAGE

CONSTRUCTION
