MCSO2FHZ 2/4

v1.0

Frequency range

20.0 ~ 225MHz

Dimensions

5.0 x 3.2 x 1.7mm

Supply voltage (V )

+1.8V (±5%)

Supply current

25mA max

Driving ability

CMOS

Load

3pF min, 47pF max

Logic levels

‘0’ level = +0.4V max

‘1’ level = V -0.5V min

Start up time

5ms max

Waveform symmetry

40:60 max @ 50%V

< 10ps

Rise / fall time

3ns max (15pF, 10~90%V )

150ns max @ 32.768kHz

Vibration resistance

50g rms 10.0 ~ 2,000Hz

Soldering condition

260°C, 10 sec max

To request a quotation for the MCSO2FHZ please use the

configurable options form to choose the options you require

and then submit your configured product to our team. Our

expert advisers are always happy to help with your

requirements and can be contacted on +44 1460 256 100 or

at sales@golledge.com.

Following product selection you will be issued with a seven

character Golledge part number. Your Golledge part number is

the internationally accepted Golledge manufacturing part

number (MPN) that should be used for all project

documentation, including bills of materials (BoMs) and

purchase orders.

If you have any queries regarding any of our documentation

our dedicated sales team will be happy to help.

Input (pad 1)

Output (pad 3)

Open

Enabled

'1' level

Enabled

'0' level

No clock

Reaction time <1µs

Human Body Model (HBM) 1A (250V to <500V)

Moisture Sensitivity Level (MSL): 1 (or not applicable)

Ceramic base and lid

SPECIFICATIONS

DD

DD

DD

P-P

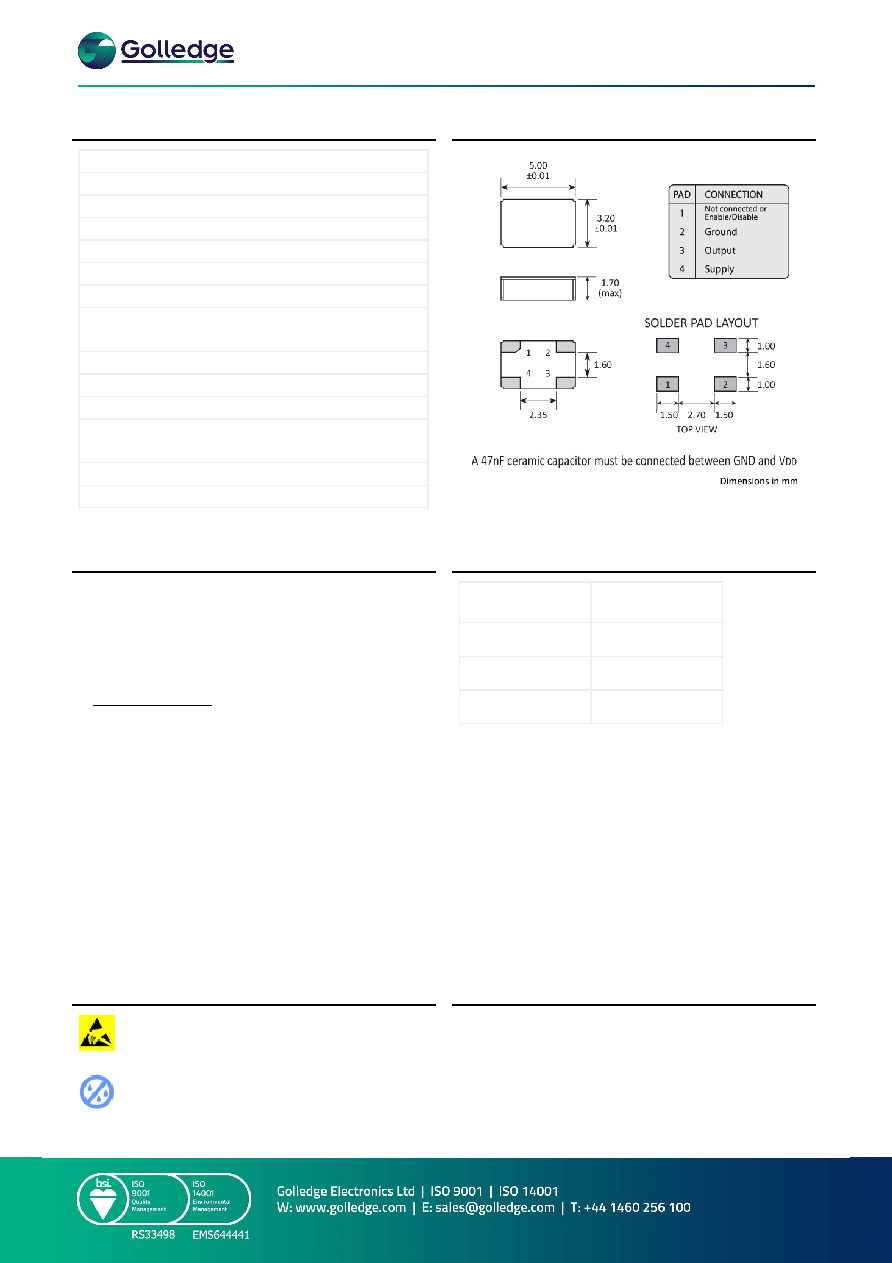

PACKAGE DRAWING

ORDERING INFORMATION

ENABLE / DISABLE FUNCTION

HANDLING & STORAGE

CONSTRUCTION
