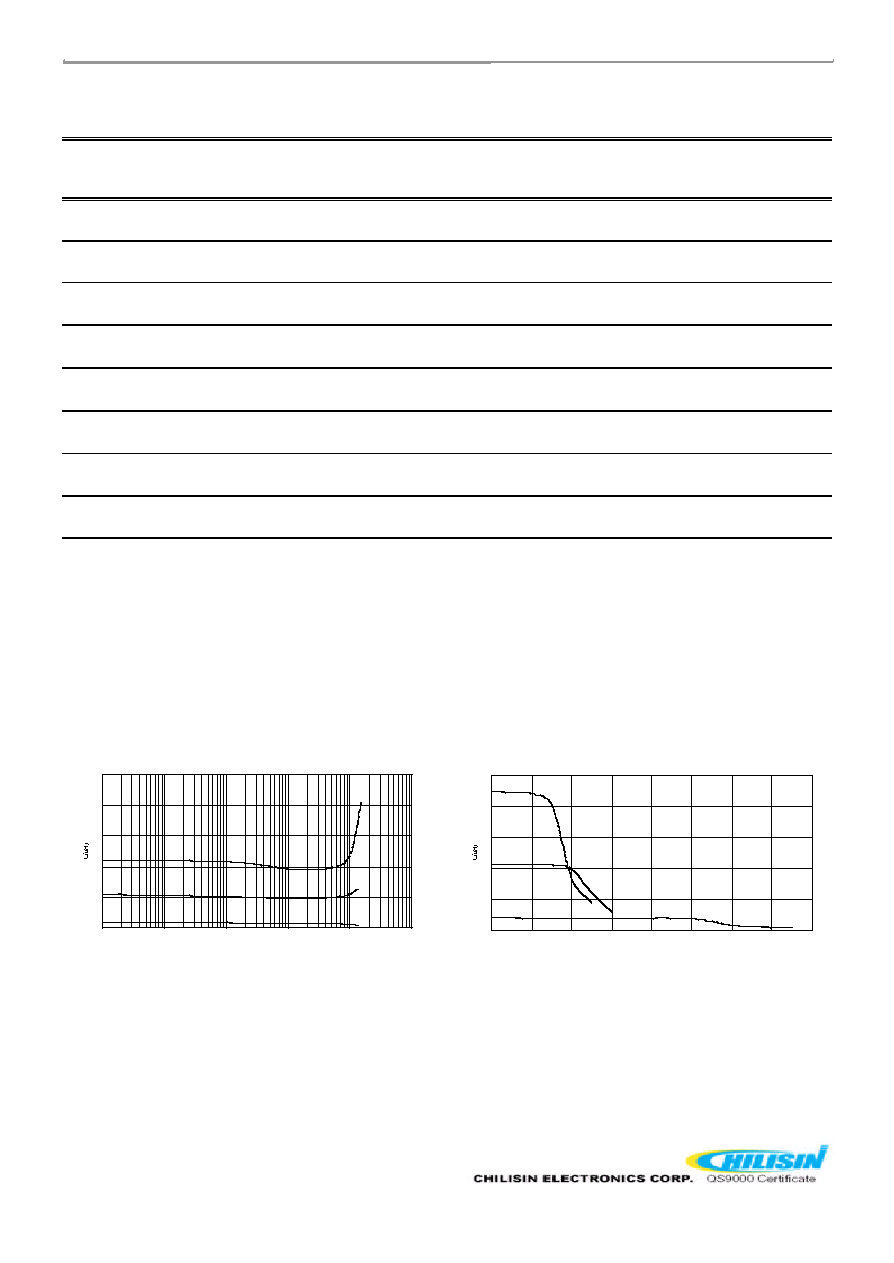

SMD Unshielded Power Inductors – SSL 0804HC Series

Electrical Characteristics

Part Number

Inductance

•

(

µH)

Tolerance

(±%)

DC Resistance

(Ω) max.

Self Resonant

‚

Frequency

(MHz) Typ

Isat

ƒ

(A)

Irms

„

(A)

SSL0804HC- R33M-S

0.33

20

0.002

300

20.0

16.0

SSL0804HC- R68M-S

0.68

20

0.005

200

13.0

12.0

SSL0804HC-1R0M-S

1.0

20

0.006

100

11.0

10.0

SSL0804HC-1R5M-S

1.5

20

0.008

90

9.0

SSL0804HC-2R2M-S

2.2

20

0.011

90

7.8

7.4

SSL0804HC-2R7M-S

2.7

20

0.012

65

7.0

6.6

SSL0804HC-3R3M-S

3.3

20

0.014

65

6.4

5.9

SSL0804HC-4R7M-S

4.7

20

0.018

45

5.4

4.8

SSL0804HC-6R8M-S

6.8

20

0.035

35

3.6

5.0

SSL0804HC-100M-S

10.0

20

0.04

26

3.3

4.3

SSL0804HC-150M-S

15.0

20

0.06

21

2.4

3.5

SSL0804HC-220M-S

22.0

20

0.08

17

2.0

2.8

SSL0804HC-330M-S

33.0

20

0.15

14

1.7

2.1

SSL0804HC-470M-S

47.0

20

0.28

12

1.4

1.7

SSL0804HC-680M-S

68.0

20

0.3

9

1.2

1.5

SSL0804HC-101M-S

100.0

20

0.4

7

0.95

1.2

l

Inductance tested at 100 kHz, 0.1 Vrms.

l

SRF measured using HP8753D network analyzer

l

Inductance drop = 10% typ. at Isat.

l

ΔT = 40℃ typ at Irms.

l

Operating temperature range -40℃ to +85℃

l

Electrical specifications at 25℃

Test Instruments：

INDUCTANCE vs. FREQUENCY CHARACTERISTICS

0

10

20

30

40

50

1

10

100

1000

10000

100000

FREQUENCY (KHZ)

1.5uH

10uH

22uH

INDUCTANCE vs. IDC CHARACTERISTICS

0

5

10

15

20

25

0

2

4

6

8

10

12

14

16

IDC (A)

1.5uH

10uH

22uH

All specifications are subject to change without notification.
