Relay Module - PR2-RSC3-LDP-24DC/2X21 - 2834643

Technical data

Connection data output side

Connection name

Contact side

Connection method

Screw connection

Stripping length

7 mm

Screw thread

M3

Conductor cross section solid

0.14 mm² ... 2.5 mm²

Conductor cross section flexible

0.14 mm² ... 2.5 mm²

Conductor cross section AWG

26 ... 14

Standards and Regulations

Standards/regulations

IEC 60664

EN 50178

Degree of pollution

3

Overvoltage category

II

Environmental Product Compliance

China RoHS

Environmentally Friendly Use Period = 50

For details about hazardous substances go to tab “Downloads”,

Category “Manufacturer's declaration”

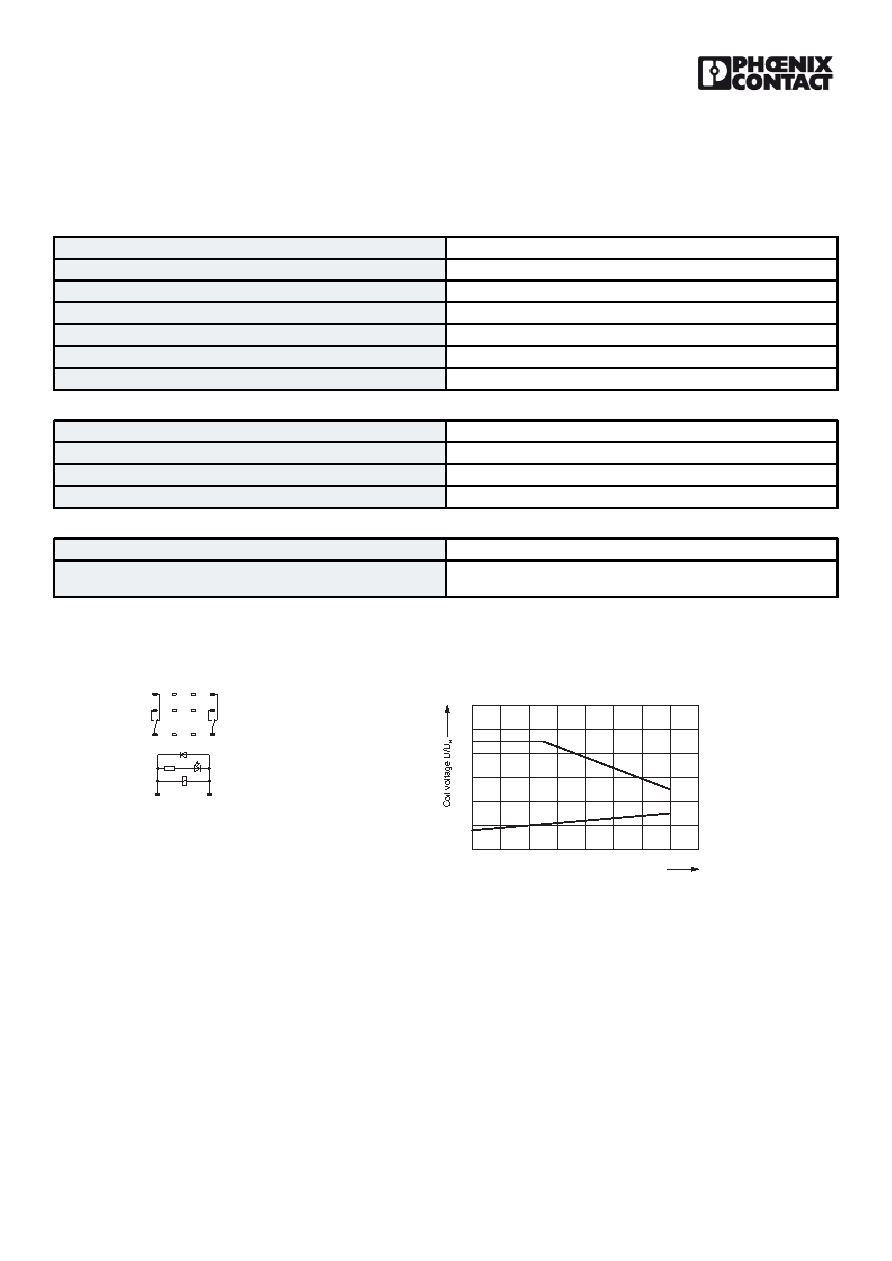

Drawings

Circuit diagram

12

42

A1+

A2-

14

44

11

41

DC coils

Diagram

Ambienttemperature[°C]

0

0,6

0,8

1

1,2

1,4

1,6

1,8

20

40

60

80

10

30

50

70
