MCSO2LW 2/4

v1.0

Frequency range

40.0 ~ 130MHz

Dimensions

5.0 x 3.2 x 1.7mm

Supply voltage (V )

+2.5V (±5%)

Storage temperature

range

-65 to +125°C

Supply current

5mA max (@40.0MHz)

10mA max (@100MHz)

20mA max (@130MHz)

Output

LVDS

Output load

Logic levels (typ)

‘0’ level = +1.1V

‘1’ level = +1.4V

Start up time

5ms max

Waveform symmetry

45:55 max @ 50%V

Jitter RMS

0.3ps max (1.0kHz ~ 1.0MHz)

Rise / fall time

1ns max (20% - 80%)

Phase noise (typ @

100MHz)

-70dBc/Hz @ 10Hz

-100dBc/Hz @ 100Hz

-125dBc/Hz @ 1kHz

-145dBc/Hz @ 10kHz

-150dBc/Hz @ 100kHz

Shock resistance

5,000g, 0.3ms, ½ sine

Vibration resistance

50g rms 10.0 ~ 2,000Hz

Soldering condition

260°C, 10 sec max

To request a quotation for the MCSO2LW please use the

configurable options form to choose the options you require

and then submit your configured product to our team. Our

expert advisers are always happy to help with your

requirements and can be contacted on +44 1460 256 100 or

at sales@golledge.com.

Following product selection you will be issued with a seven

character Golledge part number. Your Golledge part number is

the internationally accepted Golledge manufacturing part

number (MPN) that should be used for all project

documentation, including bills of materials (BoMs) and

purchase orders.

If you have any queries regarding any of our documentation

our dedicated sales team will be happy to help.

Input (pad 1)

Output (pads 4 & 5)

Open

Enabled

'1' level

Enabled

'0' level

No clock

Reaction time <1µs

SPECIFICATIONS

DD

DD

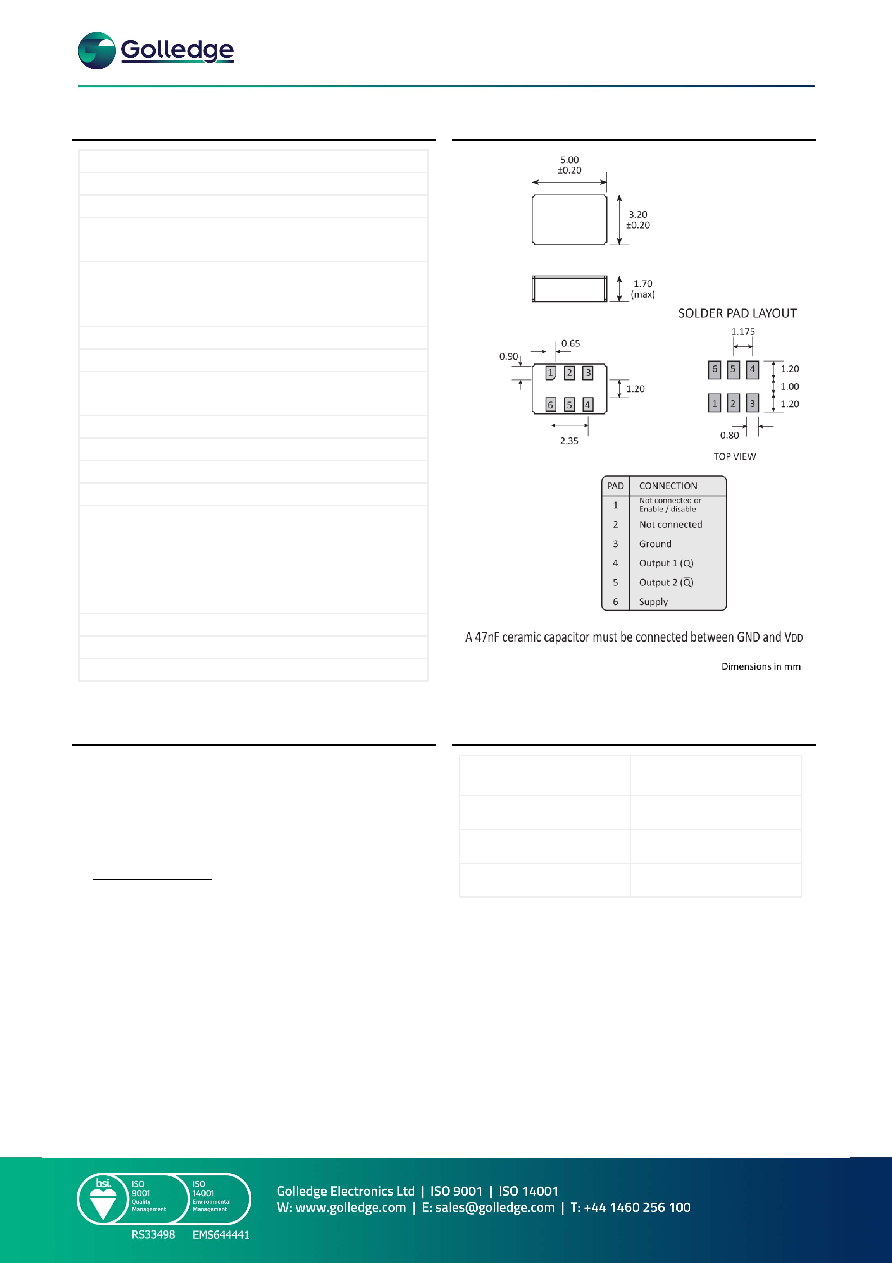

PACKAGE DRAWING

ORDERING INFORMATION

ENABLE / DISABLE FUNCTION
