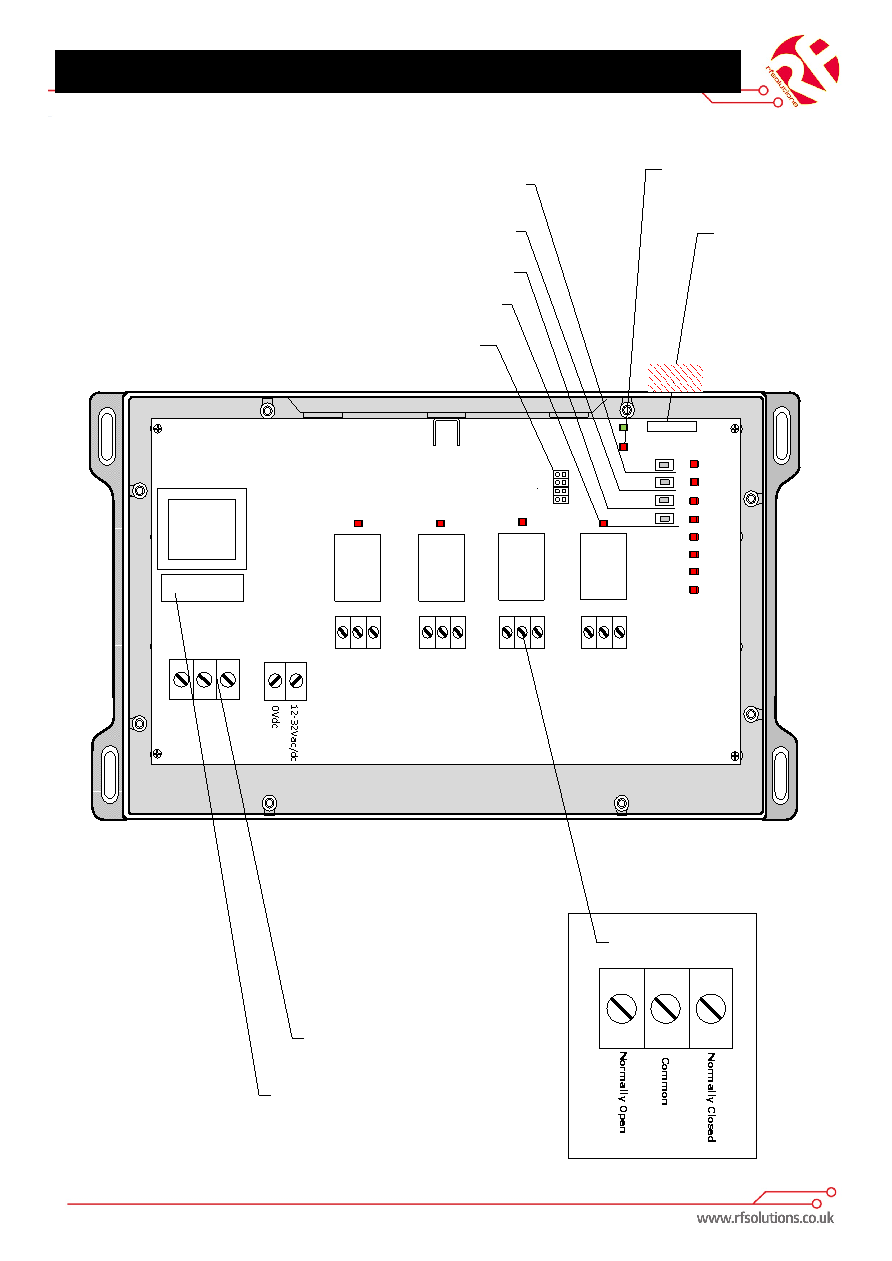

RELAY 1

RELAY 2

RELAY 3

RELAY 4

FUSE

POWER

TIMER

Timer Select Button – Used to select timer mode

Erase Button – Press and hold to erase all pairings, see

advanced operation for individual erase

Signal Test mode – Press to enter signal test mode

Sync/Pair Button – Press once to auto sync. See

Advanced operation for other pairing options.

Momentary/ Latching selection – Make the link to select momentary

operation break the link for latching operation. (default is latching)

230Vac power

input

Power input fuse – must be 500mA

(Fast blow recommended)

Relay switch terminals:

RELAY 1

RELAY 2

RELAY 3

RELAY 4

SYNC

TEST

ERASE

Status LEDs– Flash when

signals are sent/received

L N E

8

7

6

5

4

3

2

1

Mag sync – Touch a

magnet to the plastic

case in the cross

hatched area to

replicate the sync

button on board

without opening the

case

NO COM NC

NO COM NC

NO COM NC

NO COM NC

CONNECT EITHER

230Vac OR 12-32Vac/dc

NEVER BOTH
