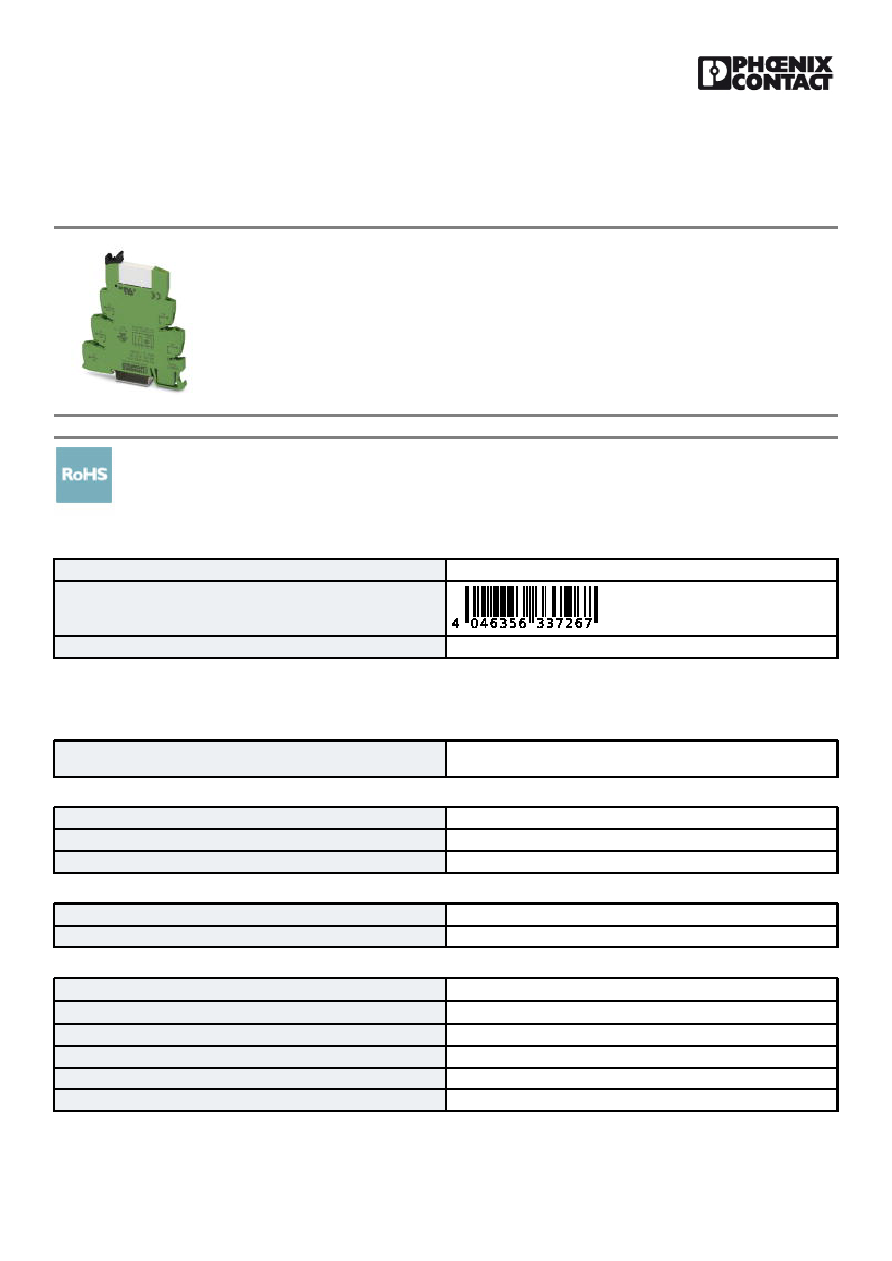

07/23/2018 Page 1 / 4

Relay Module - PLC-RSC-220DC/21AU - 2987286

Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's

documentation. Our General Terms of Use for Downloads are valid

(http://phoenixcontact.com/download)

PLC-INTERFACE, consisting of PLC-BSC.../21 basic terminal block with screw connection and plug-in

miniature relay with multi-layer gold contact, for mounting on DIN rail NS 35/7,5, 1 PDT, input voltage 220 V

DC

Key Commercial Data

Packing unit

10 STK

GTIN

GTIN

4046356337267

Technical data

Note

Utilization restriction

EMC: class A product, see manufacturer's declaration in the download

area

Dimensions

Width

6.2 mm

Height

80 mm

Depth

94 mm

Ambient conditions

Ambient temperature (operation)

-25 °C ... 55 °C

Ambient temperature (storage/transport)

-40 °C ... 85 °C

Coil side

Nominal input voltage UN

220 V DC

Typical input current at UN

3 mA

Typical response time

7 ms

Typical release time

15 ms

Coil voltage

60 V DC

Protective circuit

Reverse polarity protection Polarity protection diode

类似零件编号 - PLC-RSC-220DC

制造商	部件名	数据表	功能描述
PHOENIX CONTACT	PLC-RSC-230UC	87Kb / 5P	PLC-INTERFACE, consisting of DIN-rail-mountable basic terminal block in 14 mm with screw connection
	PLC-RSC-24DC	116Kb / 11P	PLC-INTERFACE, consisting of DIN rail-mountable basic terminal block with screw connection and plug-in miniature relay with power contact, 1 PDT, input voltage: 24 V DC, UL/cUL: approved for use in Ex Zone Class I, Div. 2 and ATEX (Zone 2)
	PLC-RSC-24UC	208Kb / 6P	The illustration shows the version PLC-RSC- 24DC/21-21

类似说明 - PLC-RSC-220DC

制造商	部件名	数据表	功能描述
PHOENIX CONTACT	PLC-RPIT-12DC	186Kb / 7P	PLC interface, consisting of PLC-BPIT.../21 basic terminal block with Push-In connection and pluggable miniature relay with power contact, for assembly on DIN rail NS 35/7.5, 1 PDT, input voltage 12 V DC
	PLC-RPIT-48DC	162Kb / 7P	PLC interface, consisting of PLC-BPIT.../21 basic terminal block with Push-In connection and pluggable miniature relay with power contact, for assembly on DIN rail NS 35/7.5, 1 PDT, input voltage 48 V DC
	PLC-RPIT-60DC	162Kb / 7P	PLC interface, consisting of PLC-BPIT.../21 basic terminal block with Push-In connection and pluggable miniature relay with power contact, for assembly on DIN rail NS 35/7.5, 1 PDT, input voltage 60 V DC
	PLC-RPIT-230UC	146Kb / 7P	PLC interface, consisting of PLC-BPIT.../21 basic terminal block with Push-In connection and pluggable miniature relay with multi-layer contact, for assembly on DIN rail NS 35/7.5, 1 PDT, input voltage 230 V AC/220 V DC
	PLC-RPT-12DC	99Kb / 6P	PLC-INTERFACE, consisting of PLC-BPT.../21-21 basic terminal block with push-in connection and plug-in miniature relay with power contact, for mounting on NS 35/7,5 DIN rail, 2 PDTs, input voltage 12 V DC
	PLC-RPT-24DC	110Kb / 7P	PLC-INTERFACE, consisting of PLC-BPT.../21-21 basic terminal block with push-in connection and plug-in miniature relay with power contact, for mounting on NS 35/7,5 DIN rail, 2 PDTs, input voltage 24 V DC
	PLC-RPT-120UC	130Kb / 12P	PLC-INTERFACE, consisting of PLC-BPT.../21 basic terminal block with push-in connection and plug-in miniature relay with multi-layer gold contact, for mounting on DIN rail NS 35/7,5, 1 PDT, input voltage 120 V AC/110 V DC
	PLC-RPT-230UC	90Kb / 6P	PLC-INTERFACE for input functions, consisting of PLC-BPT.../SEN basic terminal block with push-in connection and plug-in miniature relay with multi-layer gold contact, for mounting on DIN rail NS 35/7,5, 1 N/O contact, input voltage 230 V AC/220 V DC
	PLC-RSC-36DC	75Kb / 4P	PLC-INTERFACE, comprising PLC-BSC.../21 basic terminal block with screw connection and plug-in miniature relay with multi-layer contact, for mounting on NS 35/7.5 DIN rail, 1 PDT, 36 V DC input voltage
	PLC-RSC-125DC	143Kb / 6P	PLC relay, consisting of basic terminal block PLC-BSC.../21 with screw connection and pluggable miniature relay with power contact, for assembly on DIN rail NS 35/7.5, 1 PDT, input voltage 125 V DC
