Electrical Characteristics

Inductance

[Within]

(μH) ※1

Temperature

Rise Current

(A) ※3

Saturation Current

at 20℃(A) ※2

D.C.R. at 20℃

max(typ) (mΩ)

Part Number

6.00

252010CDMCDDS-R47MC

0.47 ± 20%

21.00

(17.00)

6.10

4.20

252010CDMCDDS-R68MC

0.68 ± 20%

37.00

(31.00)

4.40

4.00

252010CDMCDDS-1R0MC

1.00 ± 20%

48.00

(40.00)

4.00

3.00

252010CDMCDDS-1R5MC

1.50 ± 20%

72.00

(60.00)

2.90

2.50

252010CDMCDDS-2R2MC

2.20 ± 20%

97.00

(85.00)

2.60

※1 Measuring frequency Inductance at 1MHz,0.1V

※2 Saturation current: This indicates the actual actual value of D.C. current when the inductance becomes 30% lower than its

initial value.

※3 Temperature rise current: The actual value of D.C. current when the temperature of coil becomes

△T=40℃ (Ta＝25℃).(Test board condition: FR4, Copper=70μm, four-layer PWB t=1.6mm)

252010CDMCD/DS

SMD Power Inductor

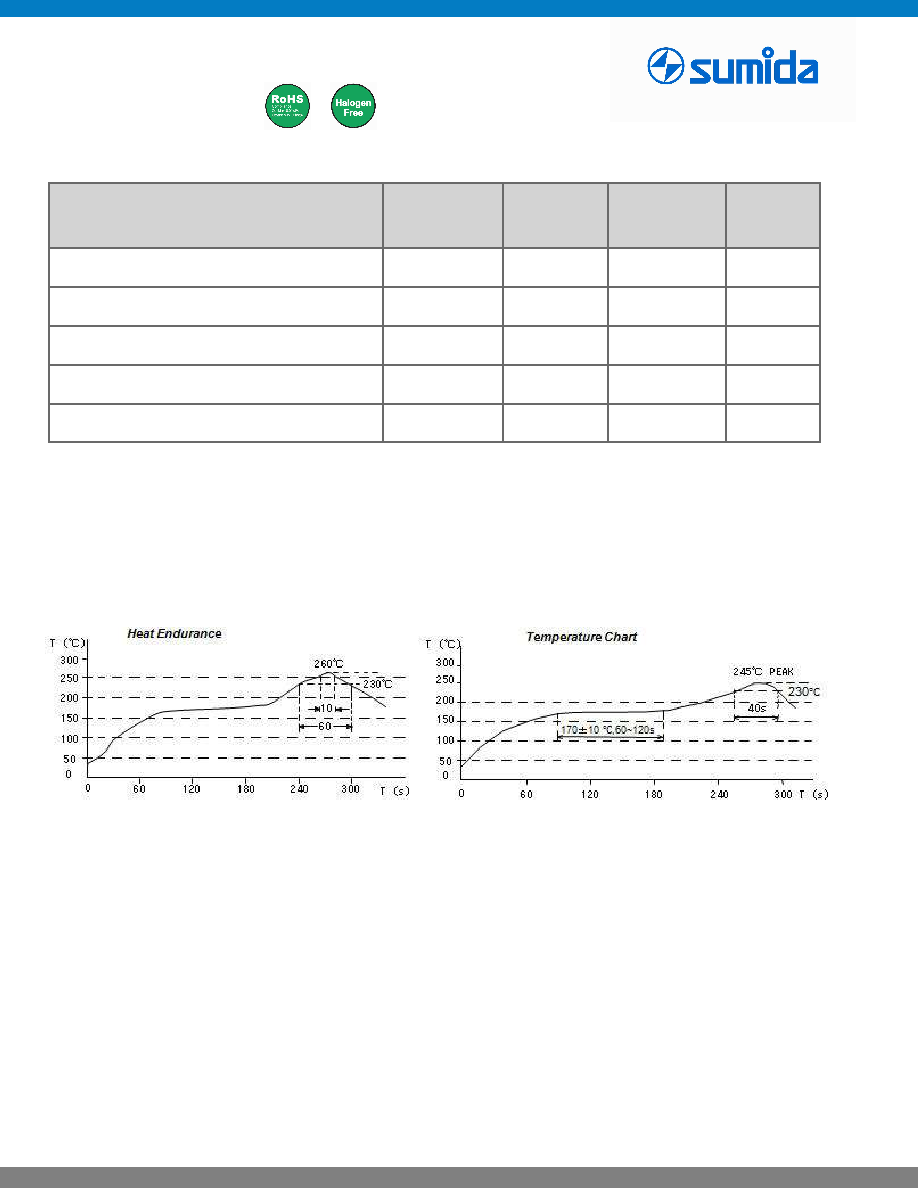

Solder Reflow Condition

Note： This specification is subject to change without notice. Please contact your nearest sales office for updated information when placing an order.

Page 3 of 4

Ver. 2018-05-14
