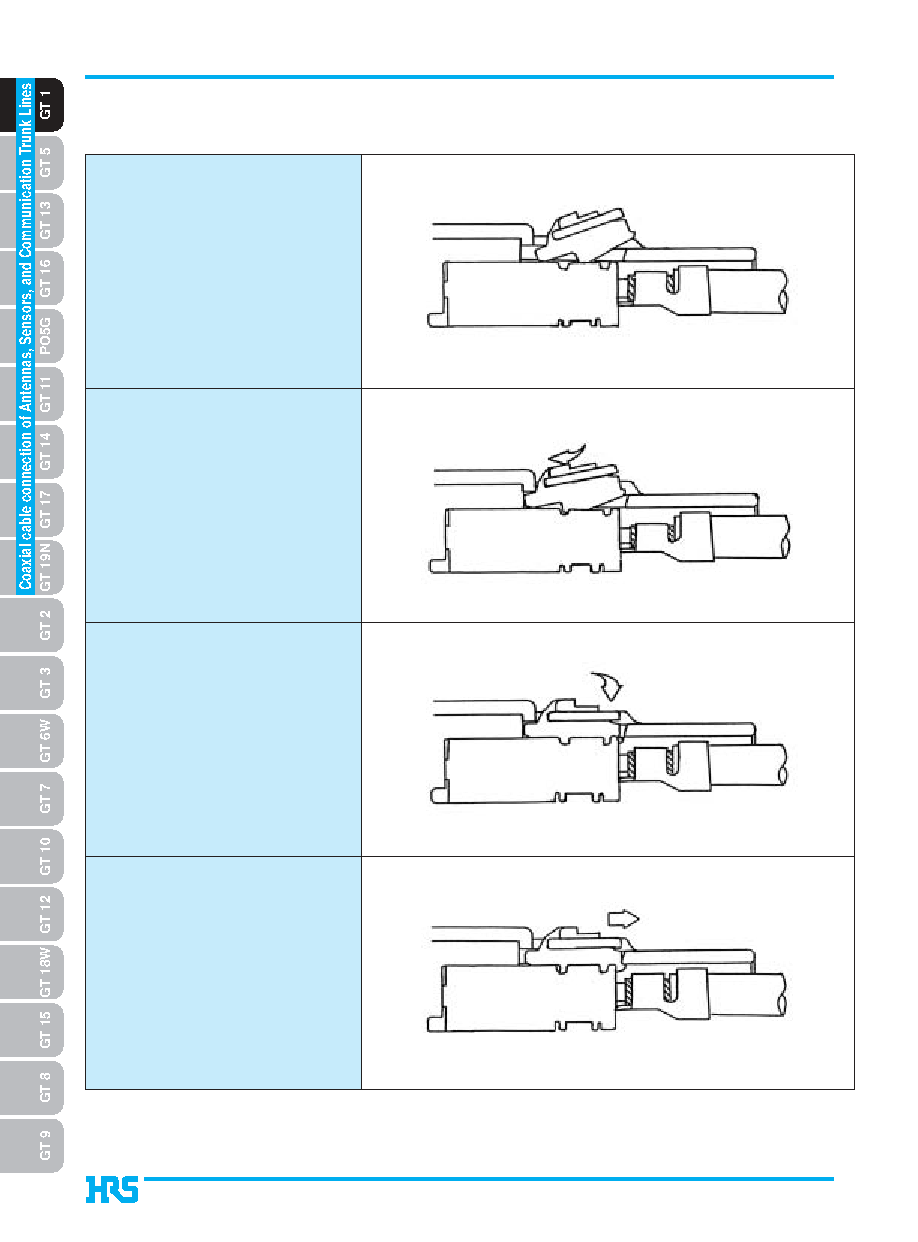

a. Insert so that the terminal

locking tab is inserted

between the top surface

of the terminal and the

housing.

b. Push in while changing

the angle of the retainer

until the front surface

comes to a stop.

c. Press the rear portion of

the retainer and snap it

into the locked position.

d. If locking is not complete,

press the rear portion of

the retainer again while

pulling it backward.

* Check that all locations are locked.
