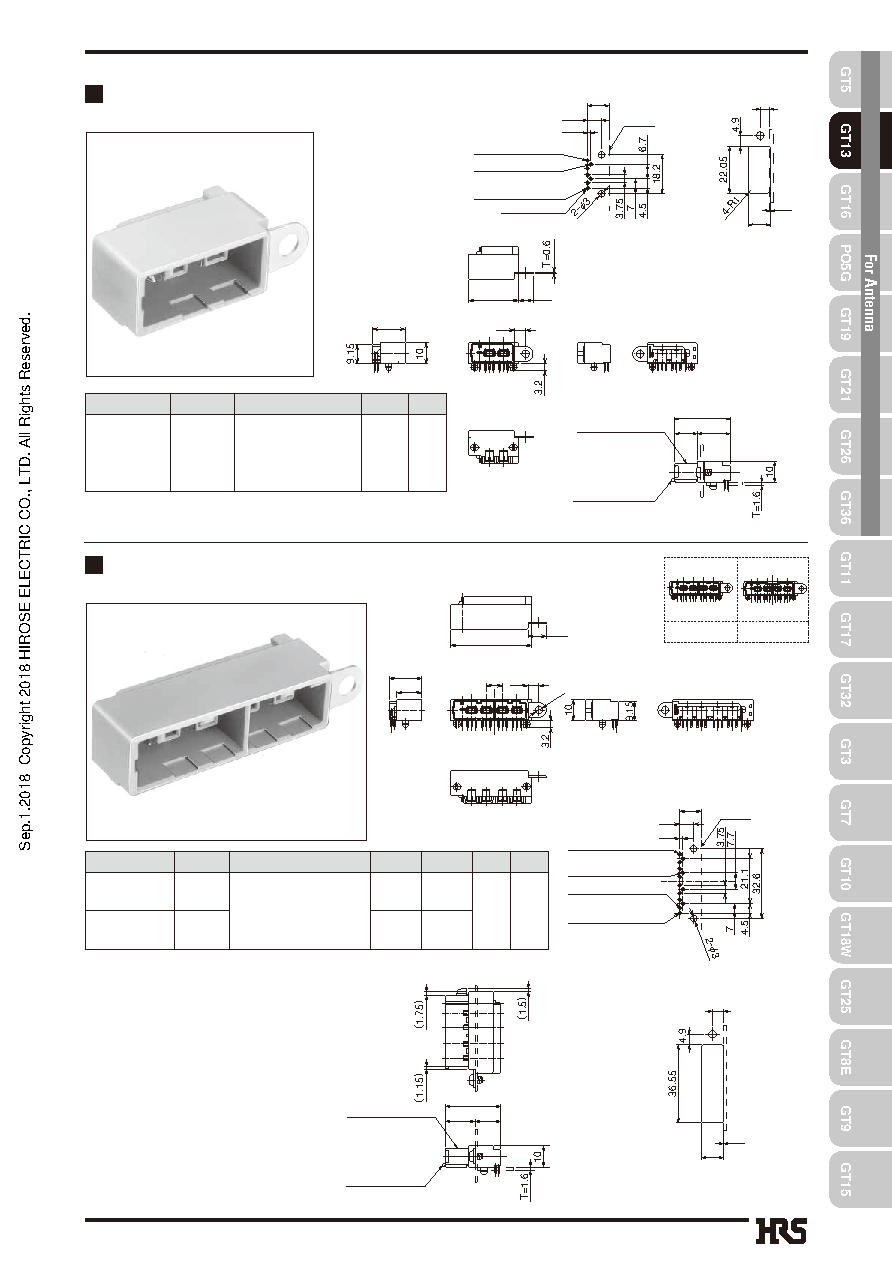

GT13 Series ● For Antenna
Standard
(A)
Part No.
HRS No.
Material
／Plating or Color Packaging RoHS
GT13SC-2/1PP-DS(70) 763-0018-6 70
Housing
：PBT／Light Gray
Center terminal
：Copper alloy
／Tin plating
Outer terminal
：Copper alloy
／Tin plating
Power terminal
：Copper alloy
／Tin plating
Metal bracket
：Copper alloy
／Tin plating
1
YES
Part No.
HRS No.
Material
Color
Key polarizing
code
Packaging RoHS
GT13SC-4/1PP-DS(70)
763-0019-9 70
Housing
：PBT
Center terminal
：Copper alloy／Tin plating
Outer terminal
：Copper alloy／Tin plating
Power terminal
：Copper alloy／Tin plating
Metal bracket
：Copper alloy／Tin plating
Light Gray
Standard
1
YES
GT13SC-4/1PP-DS(A)(70) 763-0020-8 70
Brown
（A）
23.45
15.3
5.1
6.8
10.4
5
0.2
（25.9）
（10.6）
GT13SC-2/1S-HU
GT13SC-2/1S-R
15.3
Lands
4-Ø1.6
For outer terminal
Ø1
For inner terminal
Ø1
For power supply
terminal
Ø1
6.6
1.5
10.1
Board
37.95
15.3
7.7 5.1
11.7
8.6
10.4
0.2
5.05
（25.9）
（13.8）
GT13SC-4/1S-HU
GT13SC-4/1S-R
12.1
For power supply
terminal
Ø1
For outer terminal
8-Ø1
For inner terminal
4-Ø1
Board
Lands
13-Ø1.6
10.1
6.6
1.5
Ø3.5
Printed Circuit Board Type
(4 Coaxials + 1 Power contact)
Printed Circuit Board Type
(2 Coaxials +1 Power contact)
BRecommended PCB
pattern
BRecommended panel
cutout dimension
BMated condition
BRecommended PCB
pattern
BRecommended panel
cutout dimension
BMated condition
