Specifications are subject to change without notice.

Users should verify actual device performance in their specific applications.

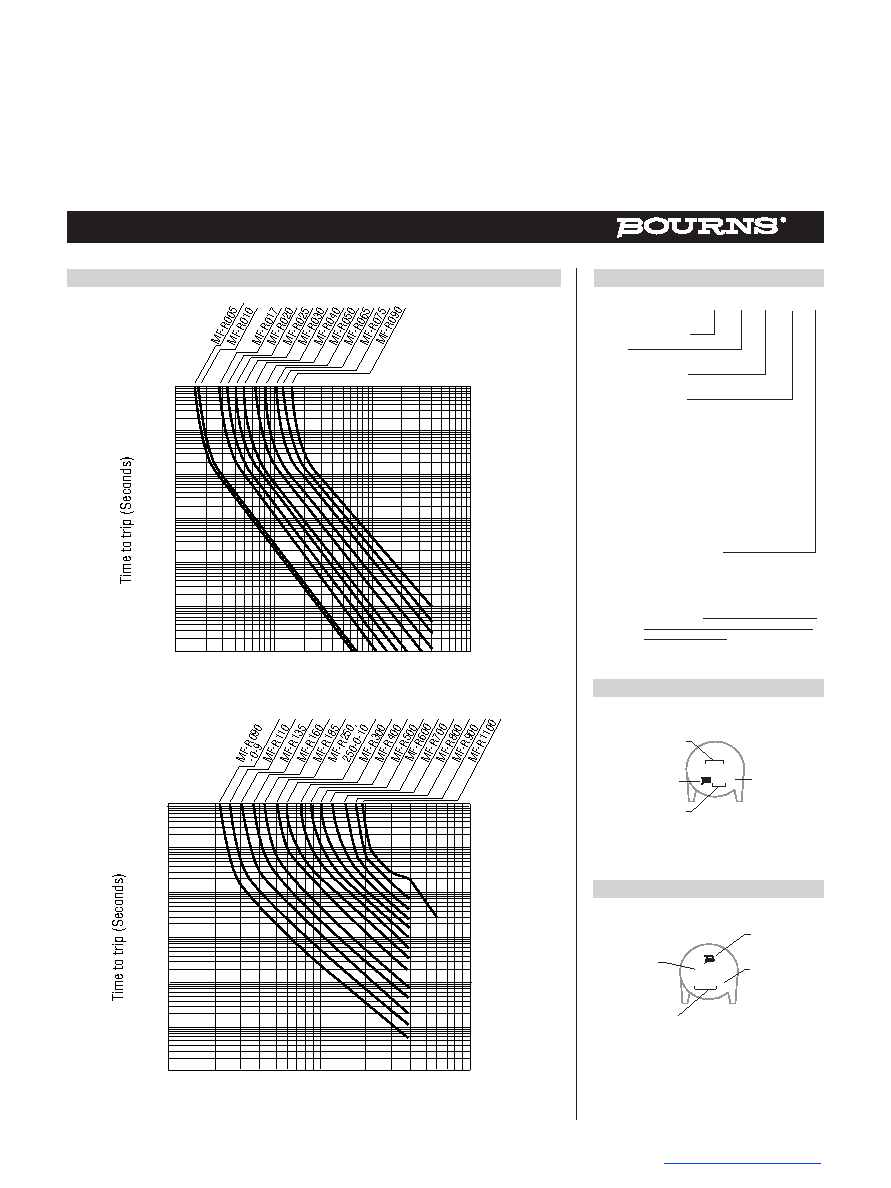

Typical Time to Trip at 23 ºC

MF-R SERIES, REV. AH, 11/17

How to Order

MF - R 110 - 0 - 99

Product Designator

Series

R = Radial Leaded Component

Hold Current, Ihold

005-1100 (0.05 Amps - 11.0 Amps)

Packaging Options

- __ = Bulk Packaging without part

numbersuffixoption

- 0-99 = Bulk Packaging with part

numbersuffixoption

- 2 =

Tape and Reel without part

numbersuffixoption*

- 2-99 = Tape and Reel with part number

suffixoption*

-AP= Ammo-Pak*

- 0-14 = Kinked leads where straight

leads are standard

- 0-17 = Straight leads where kinked

leads are standard

PartNumberSuffixOption

- 99 = RoHS Compliancy

As of date code April 1, 2005 all MF-R

modelsareRoHScompliant.Thesuffix

“-99” can be used if a new part number

is required to reference the RoHS

compliance, but including the “-99”

suffix option is not recommended

for new designs.

*PackagedperEIA486-B

100

10

1

0.1

0.01

0.001

0.1

110

100

Fault Current (Amps)

100

10

1

0.1

0.01

0.001

1

10

100

Fault Current (Amps)

Typical Part Marking: MF-R005 - R025

Represents total content. Layout may vary.

Typical Part Marking: MF-R030 - R1100

Represents total content. Layout may vary.

025

7A S

PART

IDENTIFICATION

MANUFACTURER'S

TRADEMARK

DATE CODE:

WEEK 1 OF 2017 = 7A (YEAR & WEEK)

WEEK 27 OF 2017 = A7 (WEEK & YEAR)

MANUFACTURING

LOCATION:

S = CHINA

R250

7180 S

MANUFACTURER'S

TRADEMARK

PART

IDENTIFICATION

DATE CODE:

FIRST DIGIT = LAST DIGIT OF YEAR;

NEXT THREE DIGITS = DAY OF YEAR

MANUFACTURING

LOCATION:

T = TAIWAN

S = CHINA
