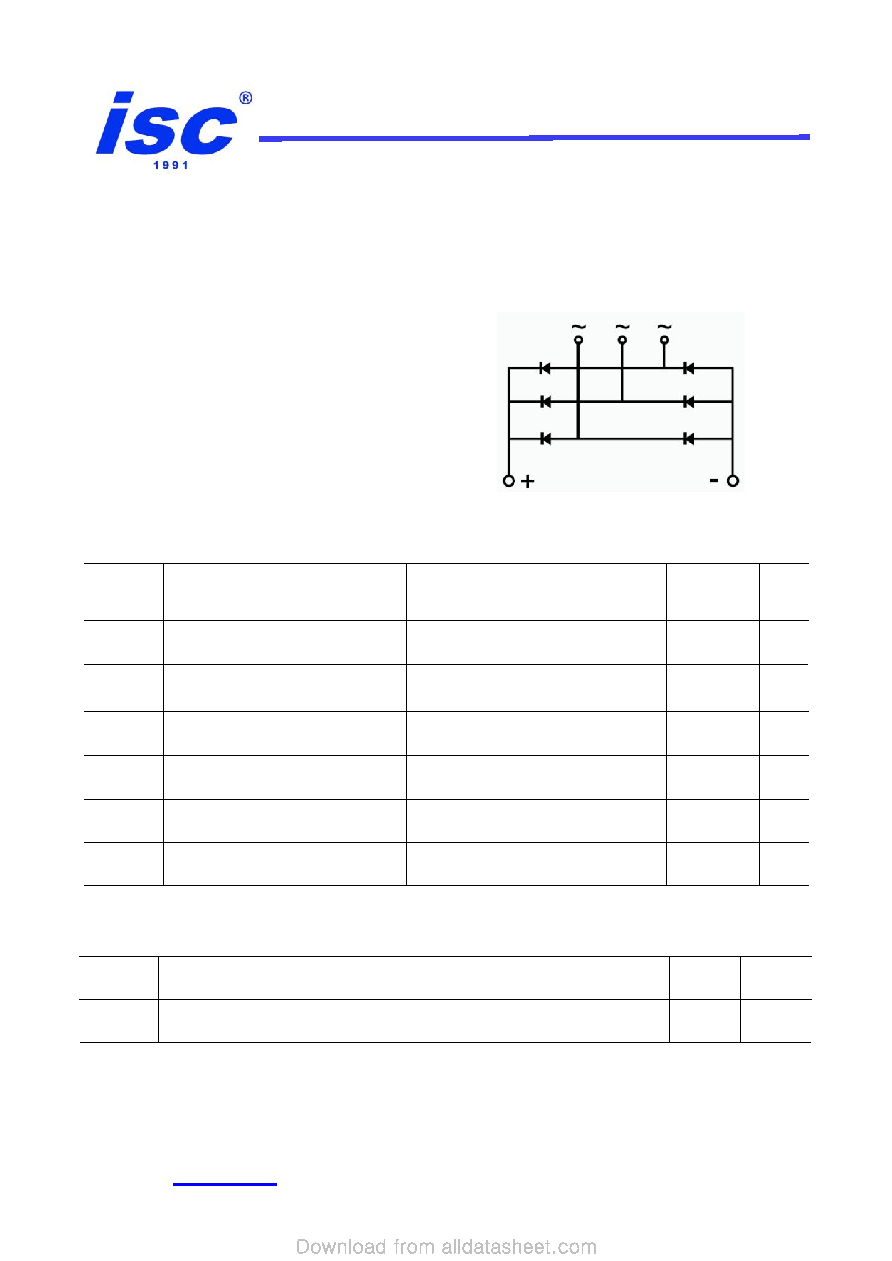

ISCZ18150

Three Phases Rectifying Bridge Module

FEATURES

·

The chips are electrically insulated from bosom plate ,2500V AC voltage

·

Package as per international standard

·

Low forward voltage drop

·

Minimum Lot-to-Lot variations for robust device

performance and reliable operation

APPLICATIONS

·

AC, DC Motor Drive/AVR/Switching for

three phase rectification

ABSOLUTE MAXIMUM RATINGS

SYMBOL

PARAMETER

CONDITIONS

VALUE

UNIT

VRRM

Repetitive Peak Reverse Voltage

Three Phase full wave ,Tp=10ms

300

V

ID

Output Current (D.C)

TC=100℃

10

A

IFSM

Surge Forward Current

Half-sine wave,

VR=0.6VRRM

750

A

Viso

Maximum Power Dissipation

50Hz,R.M.S,t=1ms,Iiso=1mA(max)

2500

V

TJ

Junction Temperature

-40~125

℃

Tstg

Storage Temperature Range

-40~125

℃

THERMAL CHARACTERISTICS

SYMBOL

PARAMETER

MAX

UNIT

Rth j-c

Thermal Resistance, Junction to Case

0.2

℃

/W
