US203
CMOS IC
UNISONICTECHNOLOGIESCO.,LTD
2 of 7
www.unisonic.com.tw
QW-R502-435.K

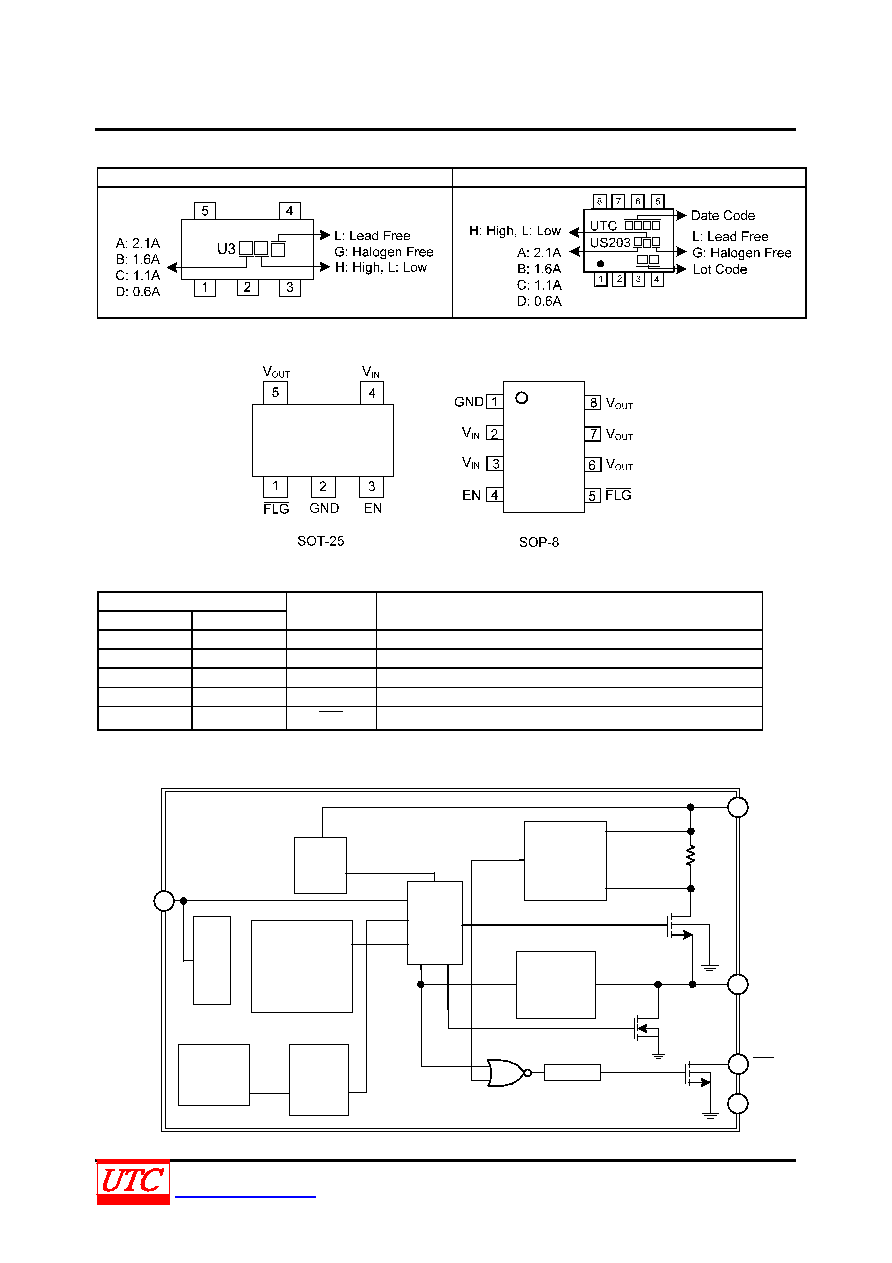

MARKING
SOT-25
SOP-8
PIN CONFIGURATION
PIN DESCRIPTION
PIN NO.
SOP-8
SOT-25
PIN NAME
DESCRIPTION
6,7,8
5
VOUT
Output Voltage
1
2
GND
Ground
4
3
EN
Enable. Never let this pin floating.
2,3
4
VIN
Power Input Voltage
5
1
FLG
Open-Drain Fault Flag Output
BLOCK DIAGRAM
Bias
UVLO
Charge
Pump
Oscillator
Thermal
Protection
Gate
Control
Current
Limiting
Delay
EN
VIN
VOUT
FLG
GND
Output
Voltage
Detection
