Data Sheet

SSM2306

Rev. A | Page 11 of 16

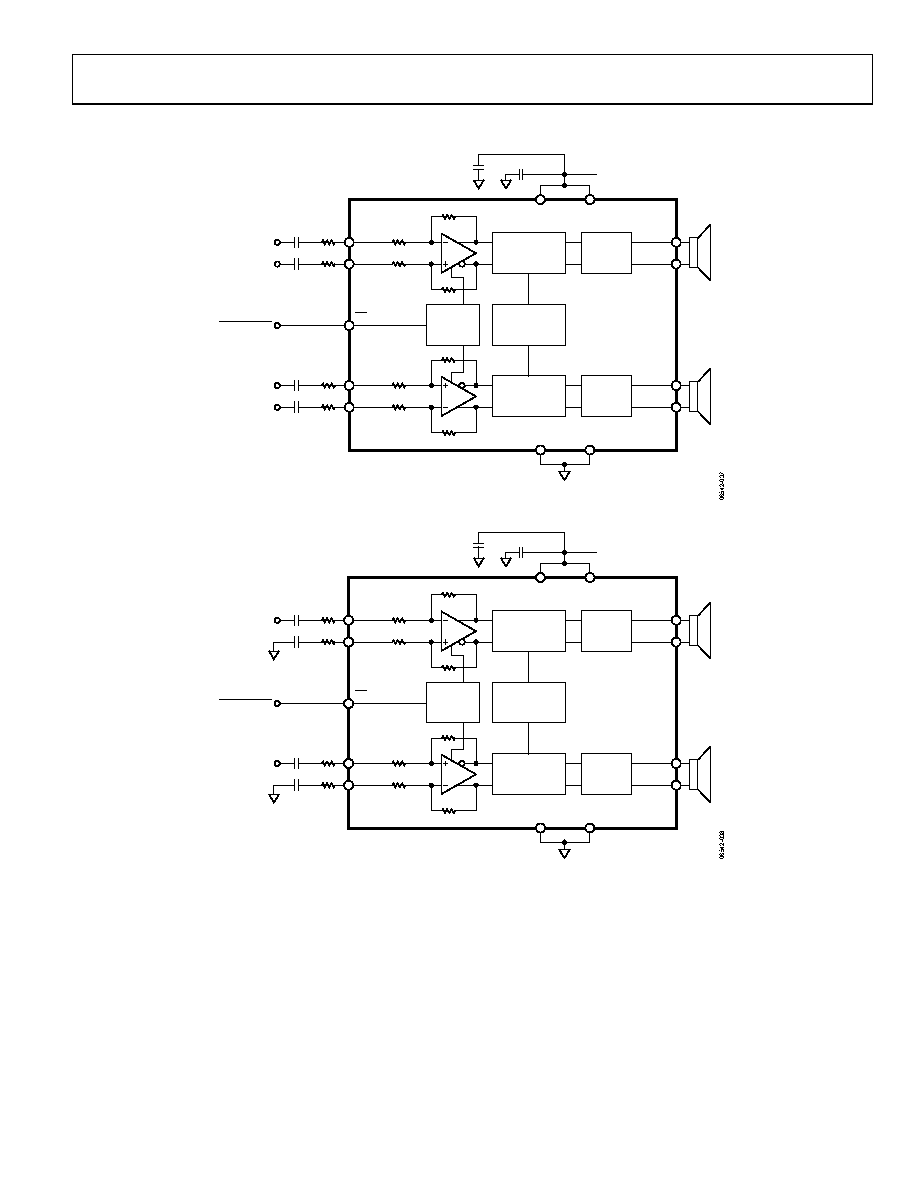

TYPICAL APPLICATION CIRCUITS

FET

DRIVER

MODULATOR

VDD

GND

INTERNAL

OSCILLATOR

OUTR+

OUTR–

OUTL+

OUTL–

BIAS

FET

DRIVER

MODULATOR

INR+

INR–

SHUTDOWN

INL+

INL–

22nF1

1 INPUT CAPS ARE OPTIONAL IF INPUT DC COMMON-MODE

VOLTAGE IS APPROXIMATELY VDD/2.

22nF1

LEFT IN+

LEFT IN–

RIGHT IN–

RIGHT IN+

SSM2306

0.1µF

VBATT

2.5V TO 5.0V

10µF

REXT

Figure 32. Stereo Differential Input Configuration

FET

DRIVER

MODULATOR

VDD

GND

INTERNAL

OSCILLATOR

OUTR+

OUTR–

OUTL+

OUTL–

BIAS

FET

DRIVER

MODULATOR

INR+

INR–

SHUTDOWN

INL+

INL–

22nF

LEFT IN

RIGHT IN

SSM2306

0.1µF

VBATT

2.5V TO 5.0V

10µF

REXT

Figure 33. Stereo Single-Ended Input Configuration
