AXGPS5050 Rev.2

www.axtal.com

Roemerring 9

Drawing D0

fon: +49 (6261) 939834

D-74821 Mosbach

Page 3(4)

fax: +49 (6261) 939836

Germany

E-mail: info@axtal.com

GmbH & Co. KG

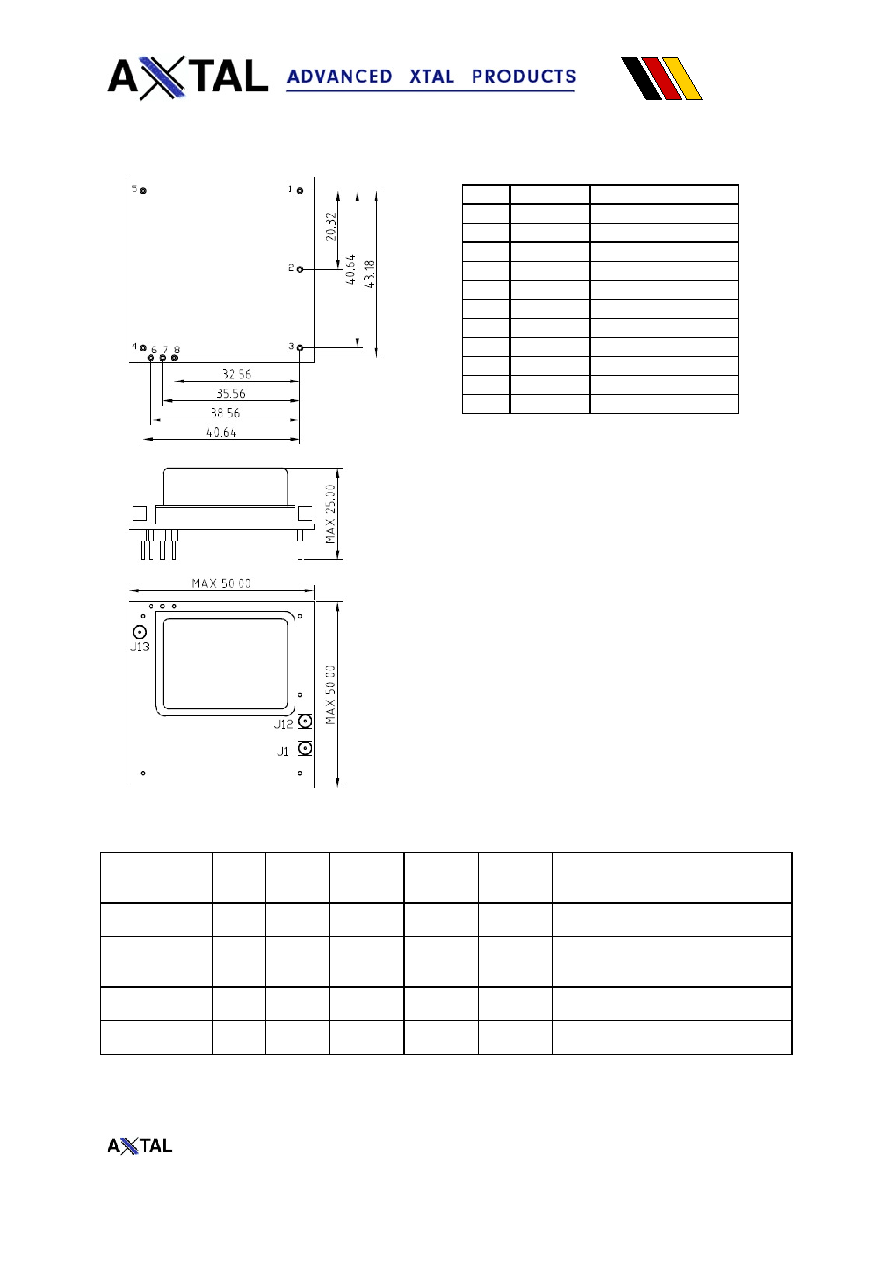

Enclosure drawing

Environmental conditions

Test

IEC

60068

Part …

IEC

60679-1

Clause

MIL-STD-

202G

Method

MIL-STD-

810F

Method

MIL-PRF-

55310D

Clause

Test conditions (IEC)

Sealing tests

(if applicable)

2-17

5.6.2

112E

3.6.1.2

Gross leak: Test Qc,

Fine leak: Test Qk

Solderability

Resistance to

soldering heat

2-20

2-58

5.6.3

208H

210F

3.6.52

3.6.48

Test Ta Method 1

Shock*

2-27

5.6.8

213B

516.4

3.6.40

Test Ea, 3 x per axes 50g,

6 ms half-sine pulse

Vibration,

sinusoidal*

2-6

5.6.7.1

201A

204D

516.4-4

3.6.38.1

3.6.38.2

Test Fc, 30 min per axes,

10 Hz - 55 Hz 0,75mm; 55 Hz - 2 kHz, 5g

Other environmental conditions on request

Data sheet is for information purposes only and may be subject to modifications or may be discontinued without notice.

Pin connections

Pin #

Symbol

Function

1

N.C.

No Connection

2

CASE

Ground Case

3

RF OUT

10 MHz Output

4

GND

Ground

5

Supply Voltage

6

LD

Lock Detect

7

TX

Serial Transmit

8

RX

Serial Receive

J1

GPS ANT

GPS Signal Input (5V)

J12

1PPS IN

External 1PPS Input

J13

1PPS OUT

1PPS Output
