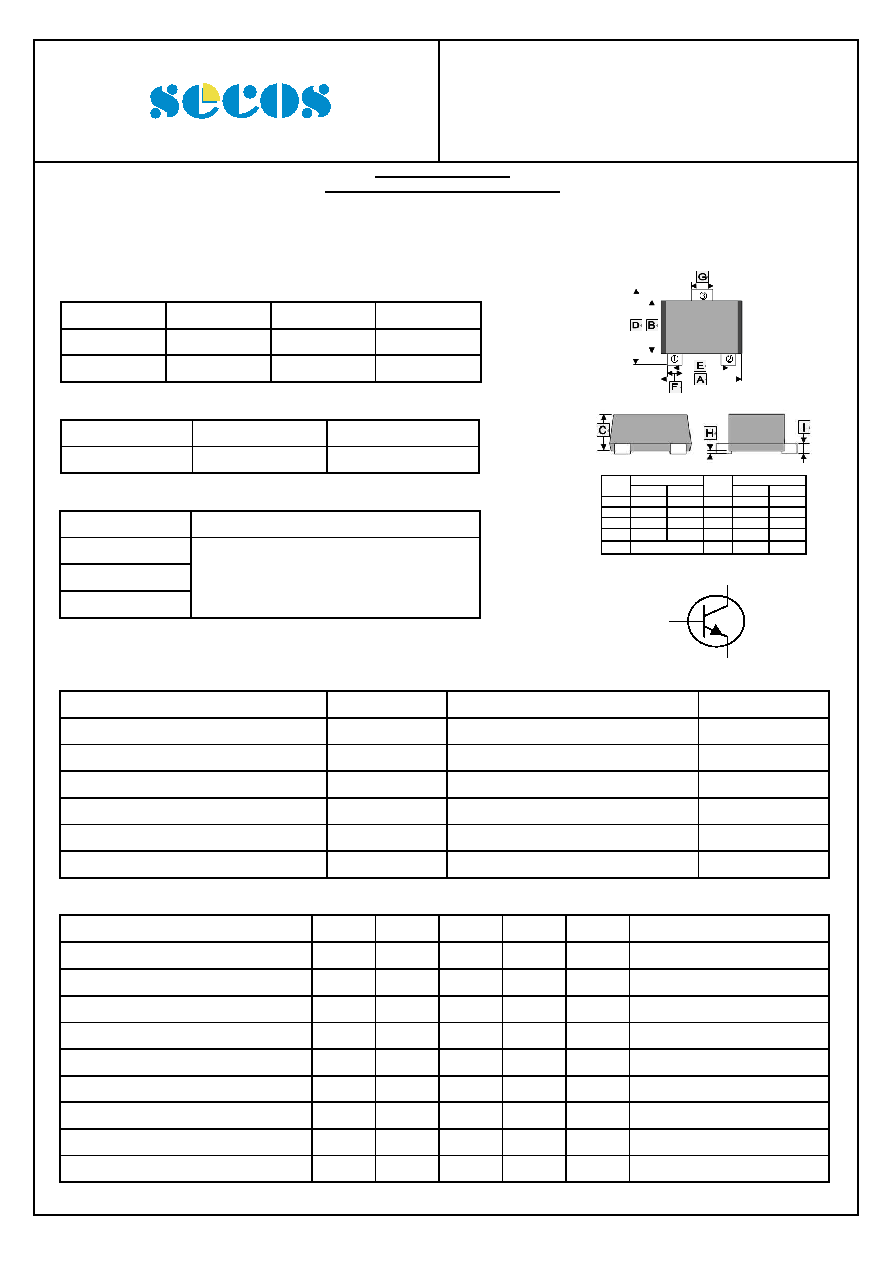

1 / 2 page

2SC5658-C

0.15A , 60V

NPN Plastic Encapsulated Transistor

Elektronische Bauelemente

06-Nov-2017 Rev. B

Page 1 of 2

http://www.SeCoSGmbH.com/

Any changes of specification will not be informed individually.

RoHS Compliant Product

A suffix of “-C” specifies halogen & lead-free

FEATURE

Low Current (Max. 150mA)

Low Voltage

CLASSIFICATION OF hFE

Product-Rank 2SC5658-Q-C 2SC5658-R-C 2SC5658-S-C

Range

120~270

180~390

270~560

Marking

BQ

BR

BS

PACKAGE INFORMATION

Package

MPQ

Leader Size

SOT-723

8K

7 inch

ORDER INFORMATION

ABSOLUTE MAXIMUM RATINGS (T

A=25°C unless otherwise specified)

Parameter

Symbol

Ratings

Unit

Collector-Base Voltage

VCBO

60

V

Collector-Emitter Voltage

VCEO

50

V

Emitter-Base Voltage

VEBO

7

V

Collector Current-Continuous

IC

150

mA

Collector Power Dissipation

PC

100

mW

Junction, Storage Temperature

TJ, TSTG

150, -55~150

°C

ELECTRICAL CHARACTERISTICS (T

A=25°C unless otherwise specified)

Parameter

Symbol

Min.

Typ.

Max.

Unit

Test conditions

Collector-Base Breakdown Voltage

V(BR)CBO

60

-

V

IC=50µA, IE=0

Collector-Emitter Breakdown Voltage

V(BR)CEO

50

-

V

IC=1mA, IB=0

Emitter-Base Breakdown Voltage

V(BR)EBO

7

-

V

IE=50µA, IC=0

Collector Cut-off Current

ICBO

-

0.1

µ

A

VCB=60V, IE=0

Emitter Cut-off Current

IEBO

-

0.1

µ

A

VEB=7V, IC=0

DC Current Gain

hFE

120

-

560

VCE=6V, IC=1mA

Collector-Emitter Saturation Voltage

VCE(sat)

-

0.4

V

IC=50mA, IB=5mA

Transition Frequency

fT

-

180

-

MHz

VCE=12V, IC=2mA, f=100MHz

Collector Output Capacitance

Cob

-

3.5

pF

VCB=12V, IE=0, f=1MHz

Part Number

Type

2SC5658-Q-C

Lead (Pb)-free and Halogen-free

2SC5658-R-C

2SC5658-S-C

SOT-723

REF.

Millimeter

REF.

Millimeter

Min.

Max.

Min.

Max.

A

1.150

1.250

F

0.170

0.270

B

0.750

0.850

G

0.270

0.370

C

-

0.500

H

0

0.050

D

1.150

1.250

I

-

0.150

E

0.800TYP.

1

Base

2

Emitter

Collector

3
