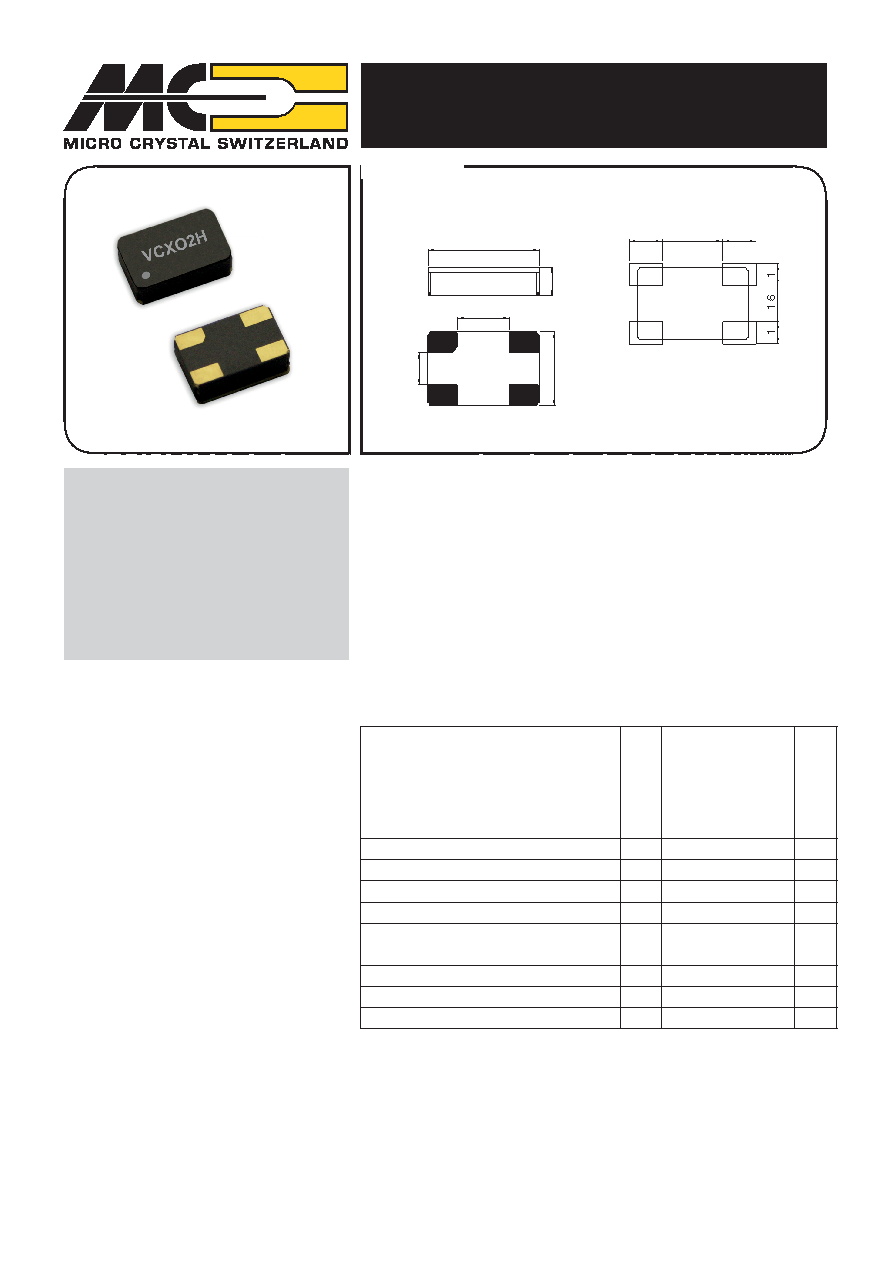

DIMENSIONS

T range up to 125°C 40MHz to 130MHz

Recommended Solder Pad:

All dimensions in mm typical

ELECTRICAL

CHARACTERISTICS AT +25°C

Absolute Frequency Pulling range APR

(Minimum frequency deviation including 2)*

Temperature range

B= -40 to 85°C

C= -55 to 125°C

ΔF/F ± 130

± 110

ppm

Supply voltage ± 5%

1)*

Vdd

3.3

V

Input current

Idd

see table 1

Output signal

HC-MOS compatible

Symmetry at Vdd/2

40 / 60

%

Rise & fall time

(load 15pf 20% to 80%)

≤2

ns

Level "0" & "1"

<0.4>Vdvd-0.5

V

Start-up time

t

<5

ms

Load min / max

3/27

pF

100% Leadfree, RoHScompliant:

DESCRIPTION:

This SMD oscillator in ceramic package has been specially designed for

surface mount using infrared, vapor phase or epoxy techniques.

APPLICATIONS:

- Radio transmission / tranceiver

- Avionics

- Airborne equipments

- Firefighterequipments

The VCXO2H's are supplied on trays (128 pcs / tray)

For pick-and-place equipment, the parts are available in 12mm tapes

with 250 parts min

SMT Voltage control oscillator in

ceramic package

Fundamental quartz mode frequency

High shock and vibration resistance

Wide temperature range

Low aging

Ultra low internal MSL

Very fast start-up

Excellent solderability

Swiss made quality

Customer specification on request

5.00

2.35

3.20

1.6

1.6

1

2

3

4

1.5

2.7

1.5

4

3

1

2

pin 1 Vc

pin 2 GND

pin 3 Fout

pin 4 Vdd

Package:

Bottom view

* 1) C = 47nF ceramic must be connected between GND & Vdd

* 2) APR is inclusive of frequency deviation due to stability

adjustment at +25°C,

long term aging 1 year

over supply voltage ±5%

over load min to max

frequency stability over T range
