Only One Name Means ProTek’Tion™

05602.R0 1/19

Page 1

PBYG10Y

1.5A GLASS PASSIVATED RECTIFIER DIODE

ISO 9001: 2015 CERTIFIED

APPLICATIONS

• Rectification in Power Supplies

• Freewheeling Diode For Consumer Electronics, Automotive & Telecom

FEATURES

• Glass Passivated Chip

• Low Power Loss

• Low Forward Voltage Drop

• Low Reverse Current

• Low Forward Voltage Drop

• RoHS Compliant

• REACH Compliant

MECHANICAL CHARACTERISTICS

• Molded JEDEC DO-214AC Package

• Approximate Weight: 0.06 grams

• Lead-Free Pure-Tin Plating (Annealed)

• Solder Reflow Temperature:

Pure-Tin - Sn, 100: 260-270°C

• 12mm Tape and Reel Per EIA Standard 481

• Terminal: Solderable per MIL-STD-750, Method 2026

• Flammability Rating UL 94V-0

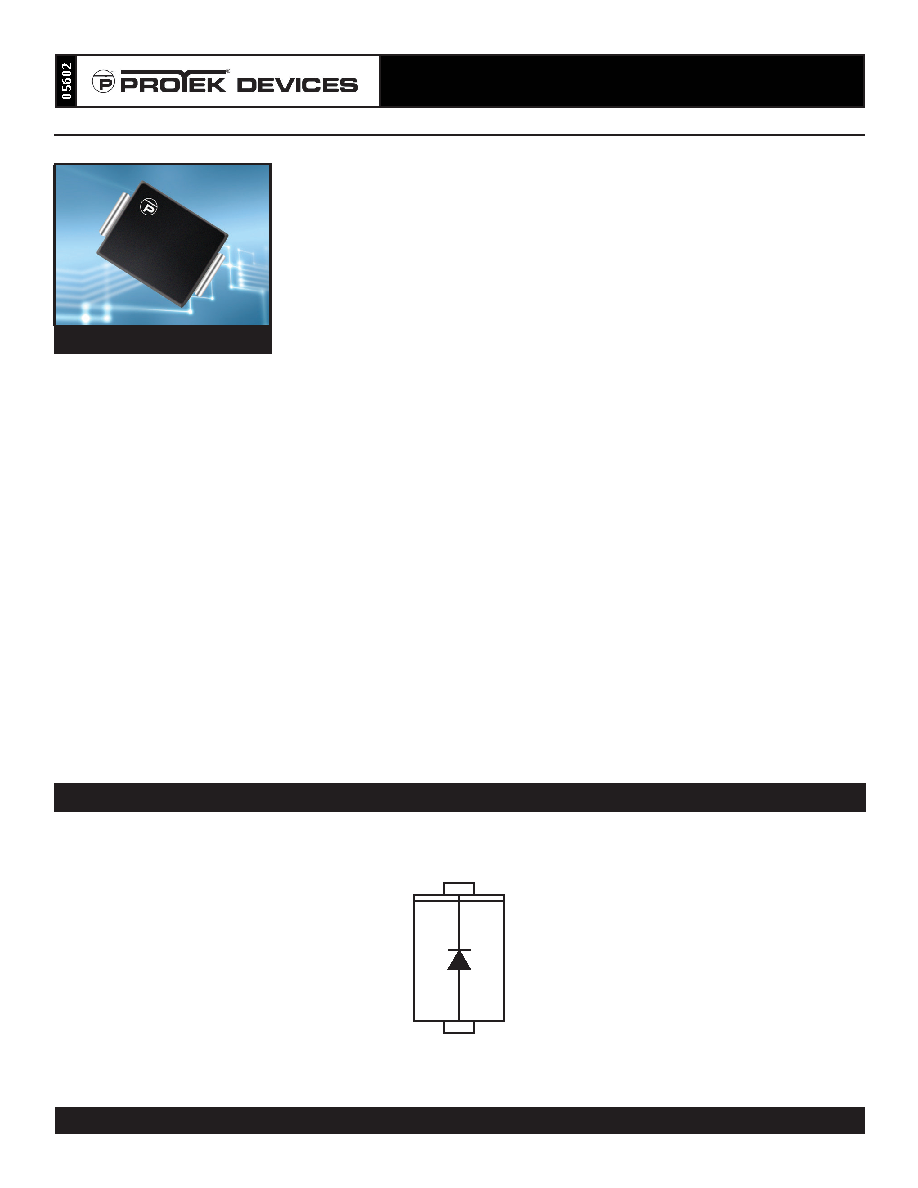

PIN CONFIGURATION

DO-214AC PACKAGE

1

2
