isc website：www.iscsemi.com

isc & iscsemi is registered trademark

1

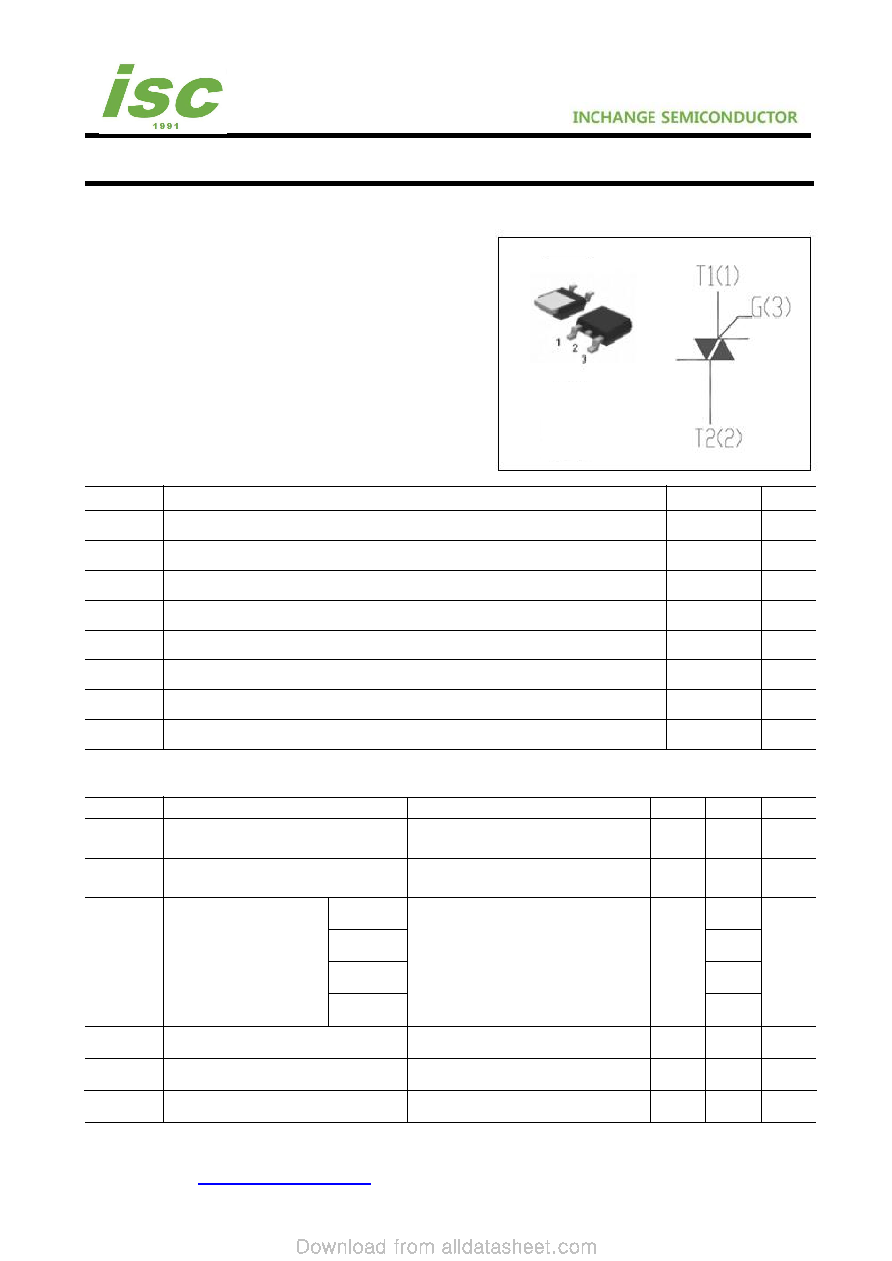

isc Triacs

ISC4B35D

FEATURES

·

With TO-252 package

·

Glass passivated triacs in a plastic envelope, for use in

Applications requiring high bidirectional transient and

blocking voltage capability and high thermal cycling

performance.Typical applications include motor control,

industrial and domestic lighting,heating and static

switching.

ABSOLUTE MAXIMUM RATINGS(Ta=25℃)

SYMBOL

PARAMETER

MIN

UNIT

VDRM

Repetitive peak off-state voltage

800

V

VRRM

Repetitive peak off-state voltage

800

V

IT(RMS)

RMS on-state current (full sine wave)

16

A

ITSM

Non-repetitive peak on-state current

tp=20ms

160

A

PGM

Peak gate power dissipation

4

W

PG(AV)

Average gate power dissipation

0.4

W

Tj

Operating junction temperature

110

℃

Tstg

Storage temperature

-40~150

℃

ELECTRICAL CHARACTERISTICS (TC=25℃ unless otherwise specified)

SYMBOL

PARAMETER

CONDITIONS

MIN

MAX

UNIT

IRRM

Repetitive peak reverse current

VR=VRRM,

VR=VRRM, Tj=125℃

0.02

0.5

mA

IDRM

Repetitive peak off-state current

VD=VDRM,

VD=VDRM, Tj=125℃

0.02

0.5

mA

IGT

Gate trigger current

Ⅰ

VD=12V; IT= 0.1A

35

mA

Ⅱ

35

Ⅲ

35

Ⅳ

70

VTM

On-state voltage

IT= 20A

1.6

V

IH

Holding current

IGT= 0.1A, VD= 12V

30

mA

VGT

Gate trigger voltage

VD=12V; IT= 0.1A

1.5

V

DPAK
