FENG-JUI TECHNOLOGY CO., LTD

HIGH CURRENT INDUCTOR-RoHS

Your Perfect Inductor

Rev.1701

PI07024Q1 TYPE

●FEATURE

1.

Shielded construction，Frequency range up to 5MHz

2.

AEC-Q200 Grade 1 qualified

●Applications

1.

Notebook, server application, High current power supplier

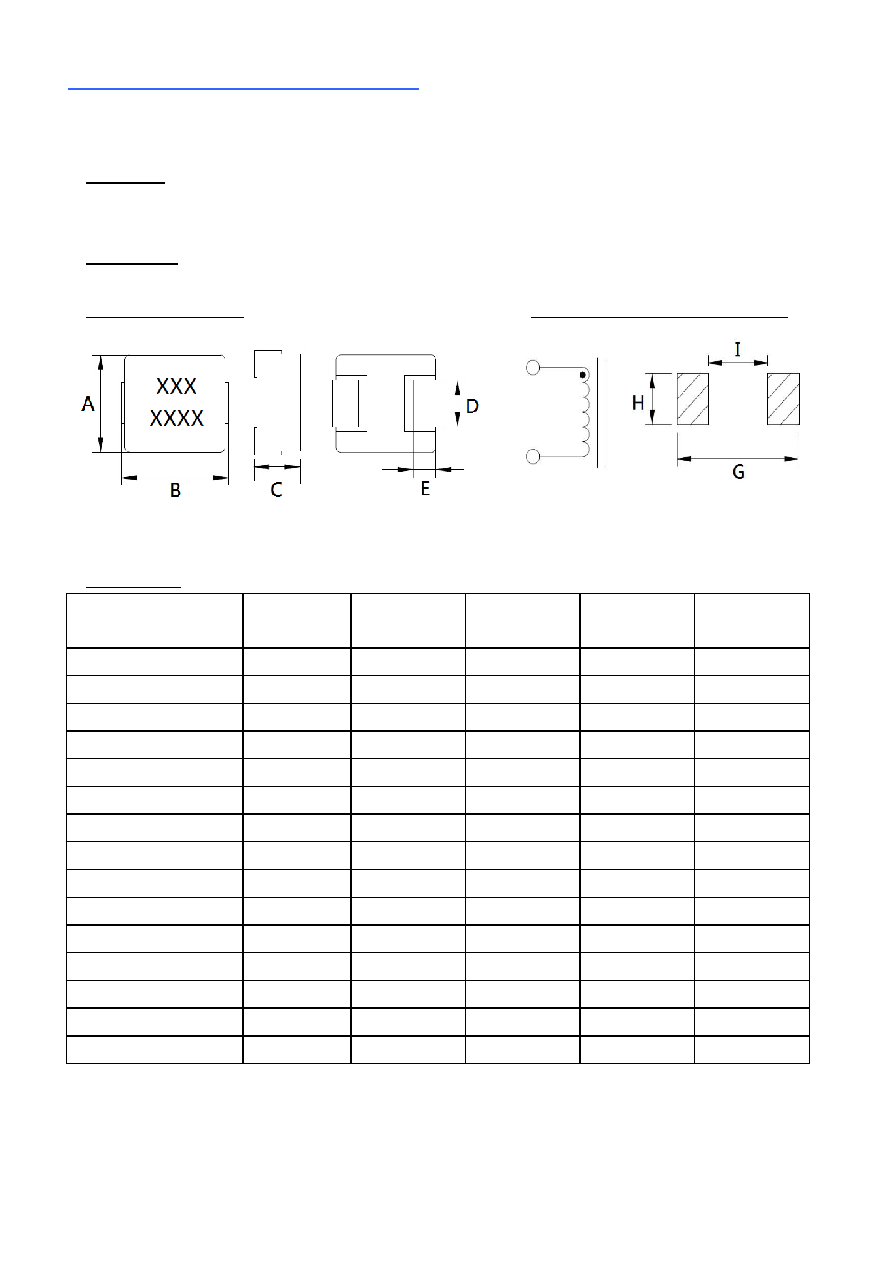

●Shape and Dimension

●Schematics and Land Patterns(mm)

A=6.80m/m Max ; B=7.30m/m Max ; C=2.40m/m Max ; D=3.00±0.3m/m ; E=1.50m/m Ref. ;

G=8.00m/m Ref. ; H=3.45m/m Ref. ; I=3.70m/m Ref.

●Specification

P/N

L

(μH)

RDC

(m

Ω) Typical

RDC

(m

Ω)Max

Isat

(A)

Irms

(A)

PI07024Q1-R10M

0.10±20%

1.5

1.7

50

30

PI07024Q1-R22M

0.22±20%

2.9

3.2

34

21

PI07024Q1-R33M

0.33±20%

3.7

4.1

22

18

PI07024Q1-R47M

0.47±20%

6.0

6.5

21

13.5

PI07024Q1-R68M

0.68±20%

8.7

9.4

18

11

PI07024Q1-R82M

0.82±20%

10.6

11.8

17

10

PI07024Q1-1R0M

1.0±20%

13.1

14.2

16

9.0

PI07024Q1-1R5M

1.5±20%

18.5

21.2

15

7.5

PI07024Q1-2R2M

2.2±20%

28.0

34.0

14

6.5

PI07024Q1-3R3M

3.3±20%

36.5

51.6

13

5.0

PI07024Q1-4R7M

4.7±20%

45.2

63.0

10

4.5

PI07024Q1-6R8M

6.8±20%

72.5

95.0

9

3.5

PI07024Q1-8R2M

8.2±20%

95.0

120

8

3.0

PI07024Q1-100M

10±20%

115.6

129

7

2.5

PI07024Q1-220M

22±20%

320.0

320

3.0

1.5

Note1. Measurement frequency of Inductance value : at 100KHz
