FENG-JUI TECHNOLOGY CO., LTD

HIGH CURRENT INDUCTOR-RoHS

Your Perfect Inductor

Rev.1502

PI07035 TYPE

●FEATURE

1. Shielded constrution

2. Frequency range up to 5MHz, Low DCR(uH)

3. Low Buzz Noise

●Applications

1. Notebook, server application, High current power supplier

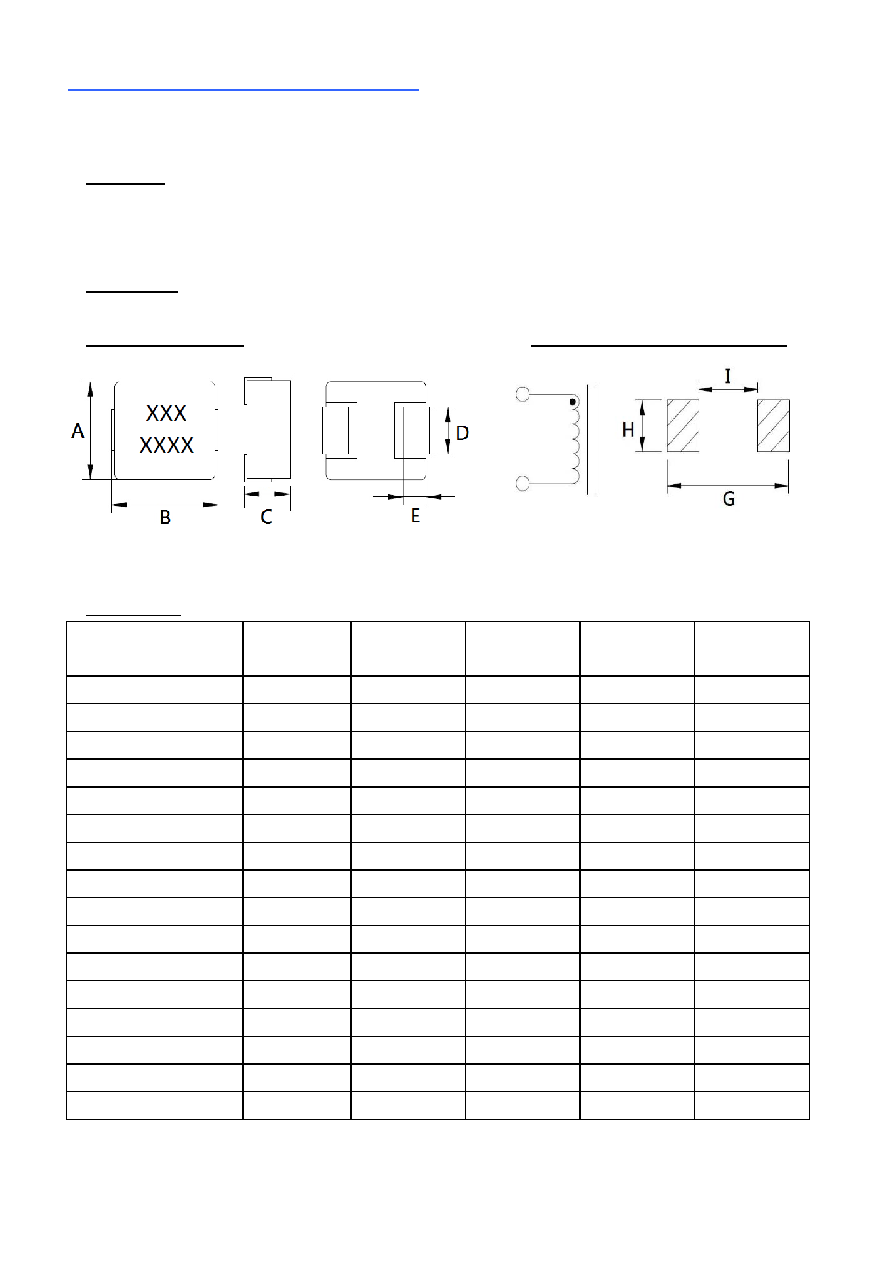

●Shape and Dimension

●Schematics and Land Patterns(mm)

A=6.90m/m Max ; B=7.60m/m Max ; C=3.50m/m Max. ; D=3.20m/m Ref. ; E=

1.40m/m Ref.

G=8.00m/m Ref. ; H=3.45m/m Ref. ; I=3.70m/m Ref.

●Specification

FENG JUI

P/N

L

(

μH)

RDC

(m

Ω) Typical

RDC

(m

Ω)Max

Isat

(A)

Irms

(A)

PI07035-R10M

0.10±20%

1.5

1.8

60

32.5

PI07035-R15M

0.15±20%

1.9

2.6

52

26

PI07035-R20M

0.20±20%

2.4

3.2

41

24

PI07035-R22M

0.22±20%

2.5

3.9

40

23

PI07035-R33M

0.33±20%

3.5

4.1

30

20

PI07035-R47M

0.47±20%

4.0

4.4

26

17.5

PI07035-R68M

0.68±20%

5.0

5.8

25

15.5

PI07035-R82M

0.82±20%

6.7

8.4

24

13

PI07035-1R0M

1.0±20%

9.0

10.5

22

11

PI07035-1R5M

1.5±20%

14

15.8

18

9

PI07035-2R2M

2.2±20%

18

21.0

14

8

PI07035-3R3M

3.3±20%

28

31.5

13.5

6

PI07035-4R7M

4.7±20%

37

42.0

10

5.5

PI07035-6R8M

6.8±20%

54

63.0

8

4.5

PI07035-8R2M

8.2±20%

64

71.4

7.5

4

PI07035-100M

10±20%

102

110.3

7

3
