FENG-JUI TECHNOLOGY CO., LTD

HIGH CURRENT INDUCTOR-RoHS

Your Perfect Inductor

Rev.1601

PI 10040 TYPE

●FEATURE

1. Shielded constrution

2. Frequency range up to 5MHz, Low DCR(

Ω), Low Buzz Noise

●Applications

1. Notebook, server application, High current power supplier

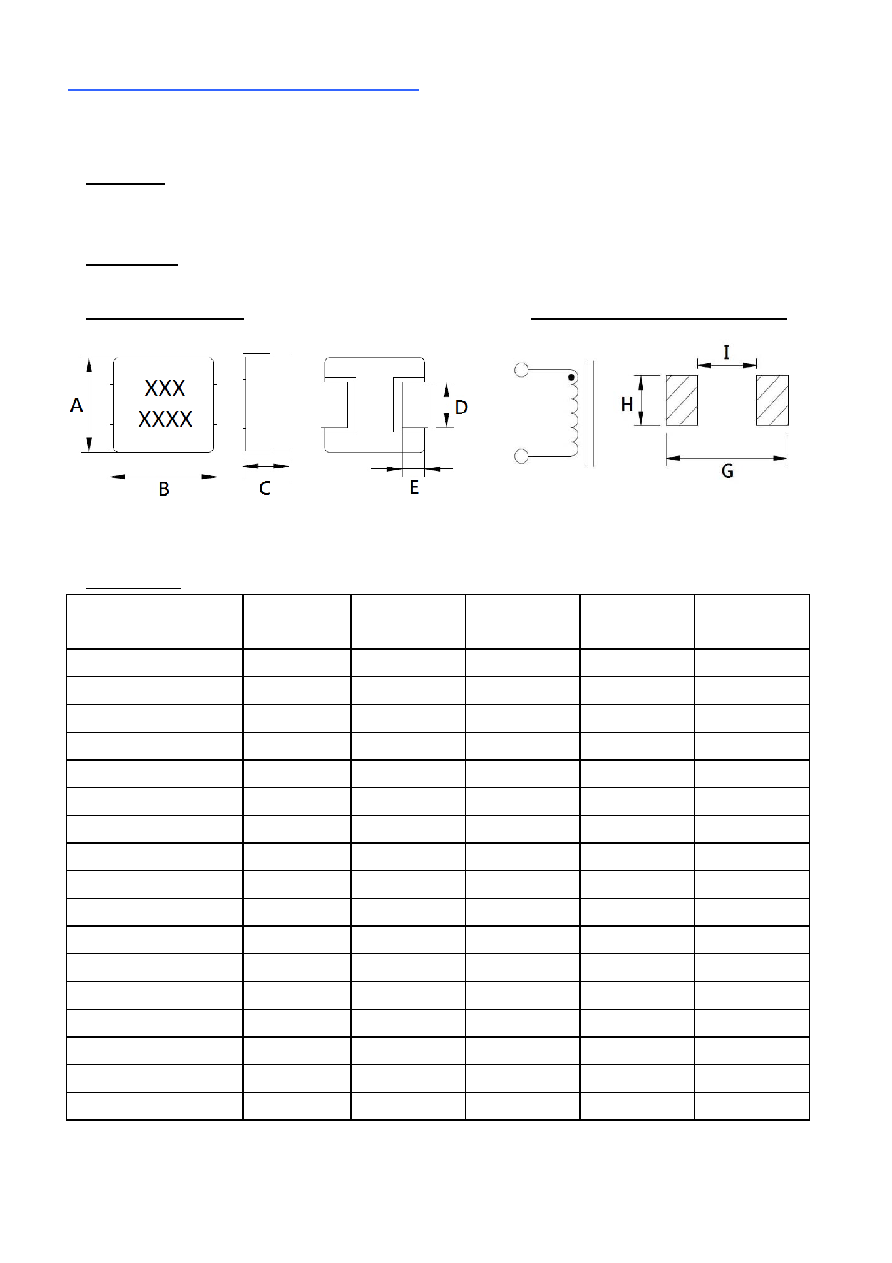

●Shape and Dimension

●Schematics and Land Patterns(mm)

A=10.30m/m Max ; B=11.50m/m Max ; C=4.00m/m Max. ; D=refer Note.6 ; E=2.00m/m Ref. ;

G=12.00m/m Ref. ; H=4.6m/m Ref. ; I=5.00m/m Ref.

●Specification

P/N

L

(μH)

RDC

(mΩ) Typical

RDC

(mΩ)Max

Isat

(A)

Irms

(A)

PI10040-R36M

0.36±20%

0.85

1.20

50

32

PI10040-R47M

0.47±20%

1.80

2.00

41

25

PI10040-R56M

0.56±20%

2.30

2.50

40

22

PI10040-1R0M

1.0±20%

3.90

4.00

36

19

PI10040-1R5M

1.5±20%

5.10

6.50

20

16

PI10040-2R2M

2.2±20%

7.50

8.50

19

13

PI10040-3R3M

3.3±20%

10.3

11.5

16

11

PI10040-4R7M

4.7±20%

14.5

16.5

14

8.0

PI10040-5R6M

5.6±20%

17.6

23.5

12

8.0

PI10040-6R8M

6.8±20%

21.2

25.5

11

7.5

PI10040-8R2M

8.2±20%

28.5

31.0

10

7.0

PI10040-100M

10±20%

37.5

42.0

8

5.0

PI10040-150M

15±20%

60.0

70.0

7

5.0

PI10040-220M

22±20%

85.0

92.0

6

3.5

PI10040-330M

33±20%

125

150

4

3.0

PI10040-470M

47±20%

170

191

3

3.0

PI10040-680M

68±20%

280

340

3

2.5
