FENG-JUI TECHNOLOGY CO., LTD

HIGH CURRENT INDUCTOR-RoHS

Your Perfect Inductor

Rev.1701

PI13038 TYPE

●FEATURE

1. Shielded constrution

2. Frequency range up to 5MHz, Low DCR(

●Applications

1. Notebook, server application, High current power supplier

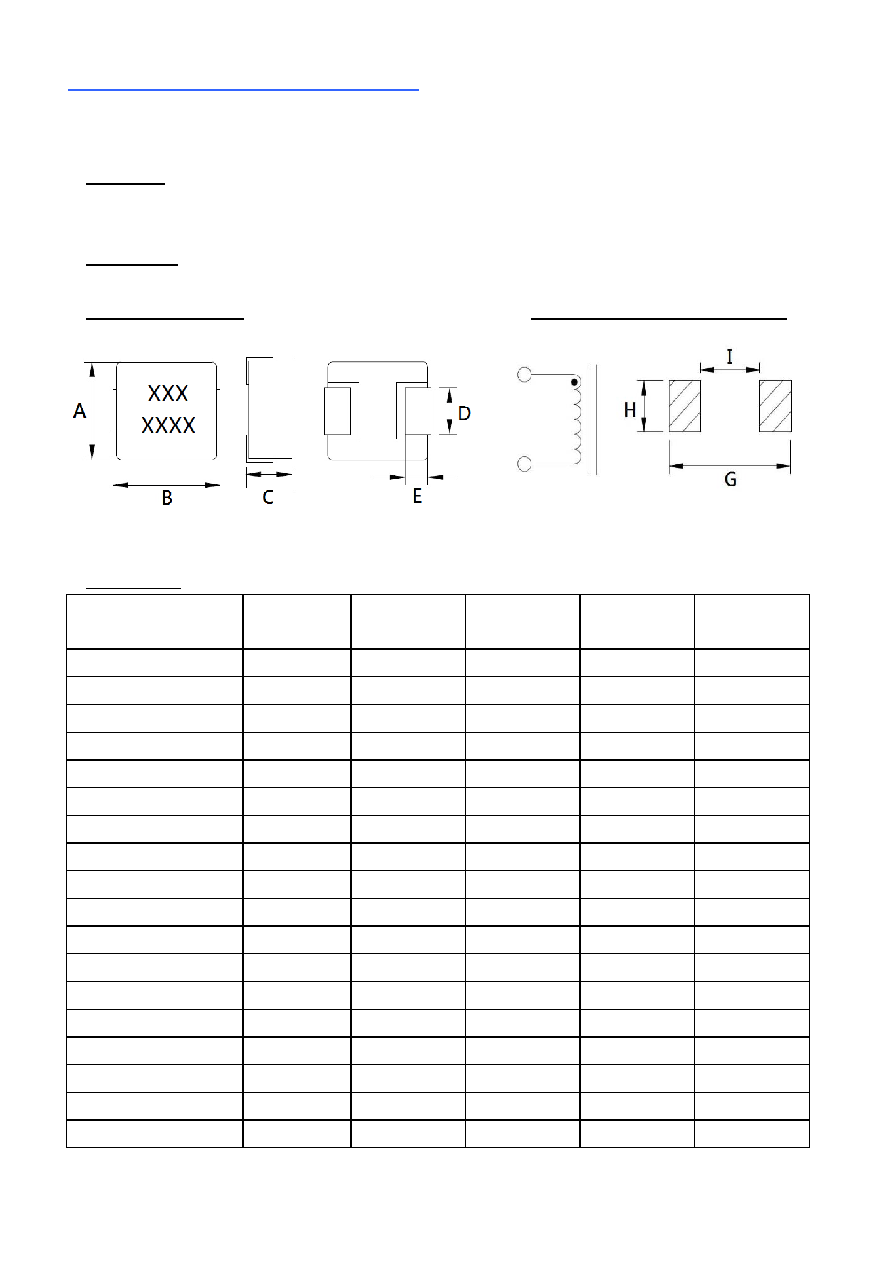

●Shape and Dimension

●Schematics and Land Patterns(mm)

A=12.90m/m Max ; B=14.00m/m Max ; C=3.80m/m Max. ; D=refer Note.7 ; E=2.40m/m Ref. ;

G=14.00m/m Ref. ; H=5.00m/m Ref. ; I=7.60m/m Ref.

●Specification

P/N

L

(μH)

RDC

(mΩ) Typical

RDC

(mΩ)Max

Isat

(A)

Irms

(A)

PI13038-R10M

0.10±20%

0.80

0.96

84

43

PI13038-R15M

0.15±20%

1.0

1.2

75

41

PI13038-R22M

0.22±20%

1.1

1.3

65

38.5

PI13038-R33M

0.33±20%

1.3

1.5

62

38.5

PI13038-R47M

0.47±20%

1.6

2.0

55

32

PI13038-R60M

0.60±20%

1.8

2.2

51

29

PI13038-R68M

0.68±20%

2.3

2.5

49

28

PI13038-R82M

0.82±20%

2.6

3.0

44

25

PI13038-1R0M

1.0±20%

3.3

3.5

40

24

PI13038-1R5M

1.5±20%

5.1

5.5

35

19

PI13038-1R8M

1.8±20%

6.0

7.0

30

16.5

PI13038-2R2M

2.2±20%

7.2

8.0

29

16

PI13038-3R3M

3.3±20%

11.0

12.0

27

12

PI13038-4R7M

4.7±20%

14.3

15.0

24

10

PI13038-5R6M

5.6±20%

17.1

18.0

19

9.5

PI13038-6R8M

6.8±20%

19.8

22.0

18

9.0

PI13038-8R2M

8.2±20%

24.8

28.0

16

8.5

PI13038-100M

10±20%

30.4

34.0

14

7.0
