FENG-JUI TECHNOLOGY CO., LTD

HIGH CURRENT INDUCTOR-RoHS

Your Perfect Inductor

Rev.1801

PI 13067 TYPE

●FEATURE

1.

Shielded construction

2.

Frequency range up to 5MHz, Low DCR(

Ω), Low Buzz Noise

●Applications

1.

Notebook, server application, High current power supplier

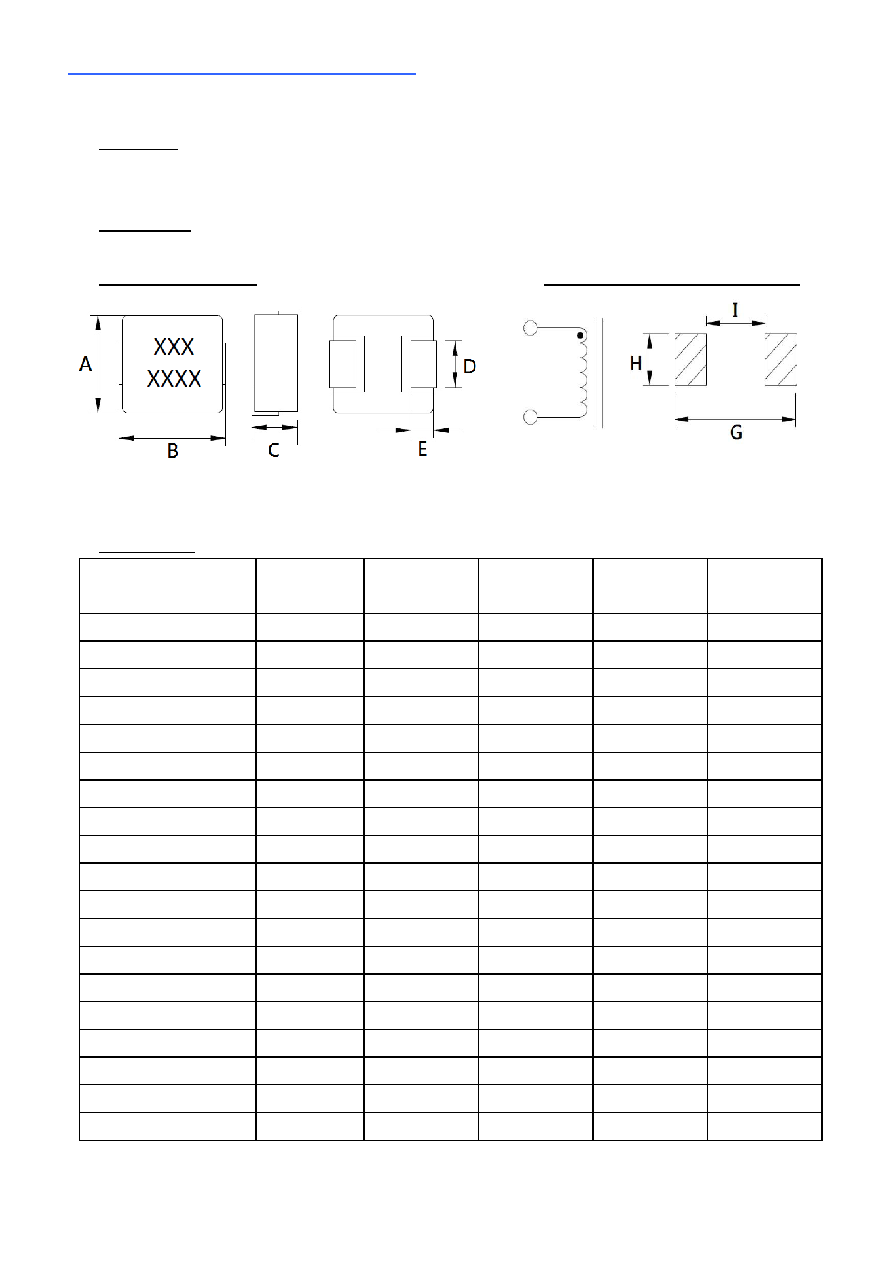

●Shape and Dimension

●Schematics and Land Patterns(mm)

A=12.90m/m Max ; B=14.00m/m Max ; C=6.70m/m Max. ; D=refer Note.7;

E=2.40m/m Ref. ; G=14.00m/m Ref. ; H=5.15m/m Ref. ; I=7.60m/m Ref.

●Specification

P/N

L

(

μH)

RDC

(m

Ω) Typical

RDC

(m

Ω)Max

Isat

(A)

Irms

(A)

PI13067-R10N

0.10±30%

0.25

0.50

80.0

60.0

PI13067-R22M

0.22±20%

0.45

0.70

75.0

53.0

PI13067-R30M

0.30±20%

0.50

0.80

72.0

48.0

PI13067-R33M

0.33±20%

0.51

0.80

65.0

46.0

PI13067-R40M

0.40±20%

0.60

1.00

64.0

44.0

PI13067-R47M

0.47±20%

0.75

1.20

63.0

41.0

PI13067-R56M

0.56±20%

0.90

1.40

62.0

37.0

PI13067-R68M

0.68±20%

1.00

1.60

51.0

35.0

PI13067-R82M

0.82±20%

1.55

1.90

50.0

33.0

PI13067-1R0M

1.0±20%

1.85

2.00

49.0

32.0

PI13067-1R2M

1.2±20%

2.30

2.50

45.0

30.0

PI13067-1R5M

1.5±20%

2.30

3.00

40.0

25.0

PI13067-2R2M

2.2±20%

3.50

4.20

33.0

22.0

PI13067-3R3M

3.3±20%

5.50

6.80

29.0

18.0

PI13067-4R7M

4.7±20%

9.80

11.2

25.0

13.5

PI13067-5R6M

5.6±20%

10.5

11.5

21.0

12.0

PI13067-6R8M

6.8±20%

13.8

14.9

16.5

11.5

PI13067-8R2M

8.2±20%

15.1

16.6

16.0

10.5

PI13067-100M

10±20%

17.5

18.5

15.5

10.0
