FENG-JUI TECHNOLOGY CO., LTD

HIGH CURRENT INDUCTOR-RoHS

Your Perfect Inductor

Rev.1606

PIC252012 TYPE

●FEATURE

1.

Shielded construction( height=1.20mm Max)

2.

Frequency range up to 5MHz, Low DCR(Ω)

●Applications

1.

Notebook, server application, High current power supplier

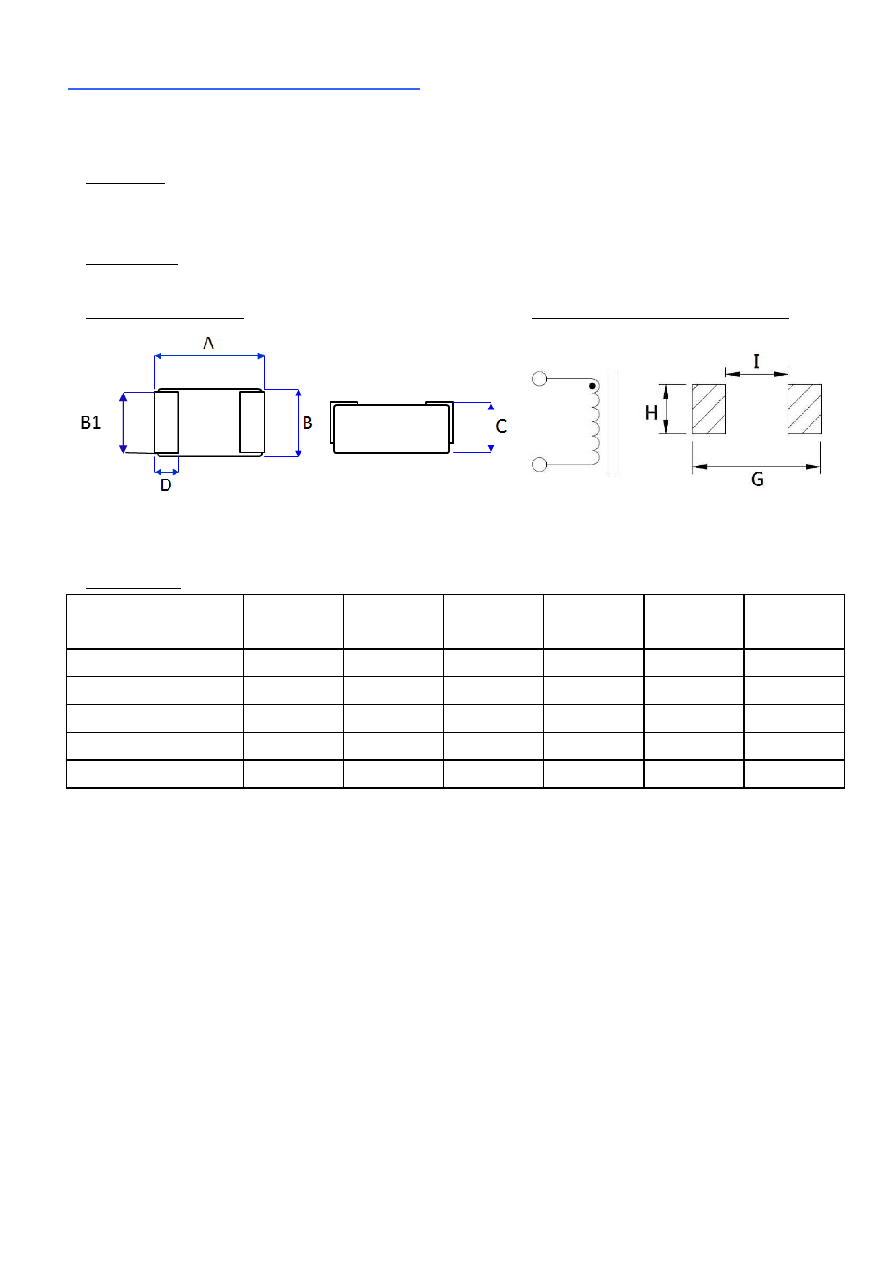

●Shape and Dimension

●Schematics and Land Patterns(mm)

A=2.5±0.2m/m ; B=2.0±0.2m/m ; B1=1.84±0.2m/m; C=1.20m/m Max. ; D=0.60±0.3m/m

G=2.90m/m Ref. ; H=2.1m/m Ref. ; I=1.2m/m Ref.

●Specification

P/N

L

(µH)

RDC

(mΩ)Max

Isat

(A)

Irms

(A)

SRF

(MHz) min

Q

min

PIC252012-R33M

0.33±20%

17.0

4.3

5.6

30

30

PIC252012-R47M

0.47±20%

25.0

3.8

4.5

30

30

PIC252012-R68M

0.68±20%

43.0

3.0

4.0

30

30

PIC252012-1R0M

1.0±20%

53.0

2.8

3.1

30

30

PIC252012-2R2M

2.2±20%

98.0

1.8

2.3

10

30

Note1. Measurement frequency of Inductance value : at 1MHz, 1V

Note2. Measurement ambient temperature of L, DCR and IDC : at 25℃

Note3. Isat: DC current at which the inductance drops 30%(typ) from its value without current

Note4. Irms: Average current for 40℃ temperature rise from 25℃ ambient(typical)
