FENG-JUI TECHNOLOGY CO., LTD

HIGH CURRENT INDUCTOR-RoHS

Your Perfect Inductor

Rev.1701

PIT03012 TYPE

●FEATURE

1. Shielded construction

2. Frequency range up to 5MHz, Low DCR(Ω),Low Buzz Noise

●Applications

1. Notebook, server application, High current power supplier

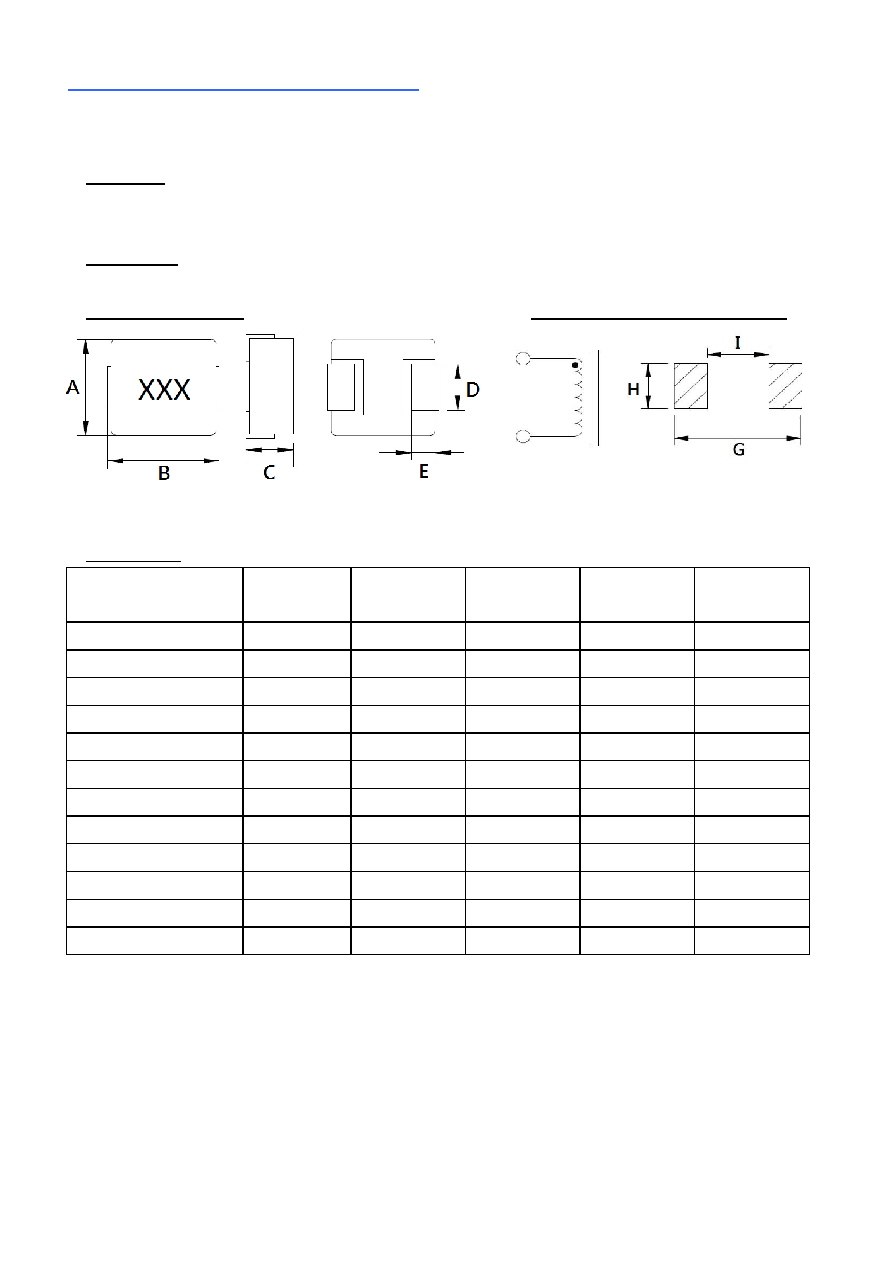

●Shape and Dimension

●Schematics and Land Patterns(mm)

A=3.40m/m Max ; B=3.70m/m Max ; C=1.20m/m Max. ; D=1.20±0.2m/m Ref. ;

E=1.00m/m Ref. ; G=4.10m/m ; H=1.45m/m ; I=1.90m/m

●Specification

P/N

L

(μH)

RDC

(mΩ) Typ.

RDC

(mΩ) Max

Isat

(A)

Irms

(A)

PIT03012-R47□

0.47

25.0

30.0

7.2

5.0

PIT03012-R56□

0.56

31.0

36.0

6.6

4.5

PIT03012-R68□

0.68

34.0

40.0

6.1

4.0

PIT03012-1R0□

1.0

50.0

60.0

5.5

3.3

PIT03012-1R5□

1.5

71.0

85.0

4.0

3.0

PIT03012-2R2□

2.2

98.0

115

3.4

2.7

PIT03012-3R3□

3.3

191

210

3.1

2.0

PIT03012-4R7□

4.7

266

293

2.8

1.6

PIT03012-5R6□

5.6

310

360

2.2

1.5

PIT03012-6R8□

6.8

360

400

2.0

1.4

PIT03012-8R2□

8.2

420

463

1.7

1.2

PIT03012-100□

10

498

550

1.4

1.0

Note1. Measurement frequency of Inductance value : at 100KHz, 1V

Note2. Measurement ambient temperature of L, DCR and IDC : at 25℃

Note3. Isat: DC current at which the inductance drops 30%(typ) from its value without current

Note4. Irms: Average current for 40℃ temperature rise from 25℃ ambient(typical)

Note5. Inductance tolerance□: M: ±20% ; N: ±30%

Note6. Packing: reel ; Quantity: 4000 Piece

Note7. Inductance: 1R5=1.50uH；Marking: 1.5
