FENG-JUI TECHNOLOGY CO., LTD

HIGH CURRENT INDUCTOR-RoHS

Your Perfect Inductor

Rev.1701

PIT05012 TYPE

●FEATURE

1. Shielded constrution

2. Frequency range up to 5MHz, Low DCR(Ω),Low Buzz Noise

●Applications

1. Notebook, server application, High current power supplier

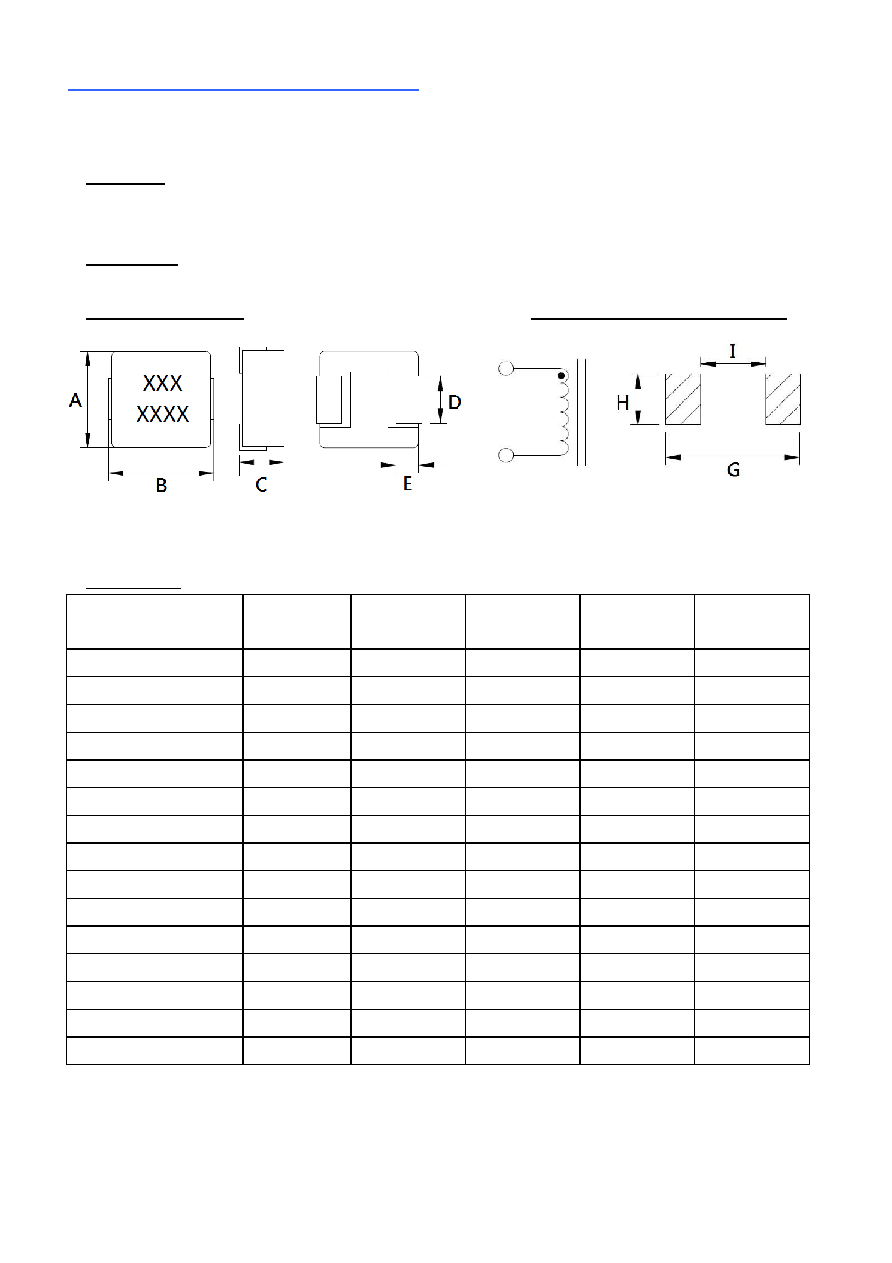

●Shape and Dimension

●Schematics and Land Patterns(mm)

A=5.40m/m Max ; B=6.00m/m Max ; C=1.20m/m Max. ; D=2.50m/m Ref. ; E=1.20m/m Ref. ;

G=6.20m/m ; H=2.80m/m ; I=2.20m/m

●Specification

P/N

L

(μH)

RDC

(mΩ) Typical

RDC

(mΩ)Max

Isat

(A)

Irms

(A)

PIT05012-R10N

0.10±30%

4.3

5.2

14.5

14

PIT05012-R22N

0.22±30%

5.5

6.7

14

10.7

PIT05012-R33M

0.33±20%

7.8

9.4

13.5

8.5

PIT05012-R47M

0.47±20%

13.6

15.8

11

7

PIT05012-R68M

0.68±20%

21.5

24.5

9

6

PIT05012-1R0M

1.0±20%

26

30

6

5

PIT05012-1R2M

1.2±20%

33

40

5.5

4.5

PIT05012-1R5M

1.5±20%

38

44

5

4

PIT05012-2R2M

2.2±20%

65

75

4

3.5

PIT05012-3R3M

3.3±20%

75

86

3.8

3

PIT05012-4R7M

4.7±20%

100

115

3.2

2.5

PIT05012-5R6M

5.6±20%

175

201

3.2

2.4

PIT05012-6R8M

6.8±20%

193

222

3

2

PIT05012-8R2M

8.2±20%

327

378

2.8

1.7

PIT05012-100M

10±20%

335

385

1.8

1.5
