FENG-JUI TECHNOLOGY CO., LTD

HIGH CURRENT INDUCTOR-RoHS

Your Perfect Inductor

Rev.1501

2015/1/13

PIT07012 TYPE

●FEATURE

1. Shielded constrution

2. Frequency range up to 5MHz, Low DCR(uH)

3. Low Buzz Noise

●Applications

1. Notebook, server application, High current power supplier

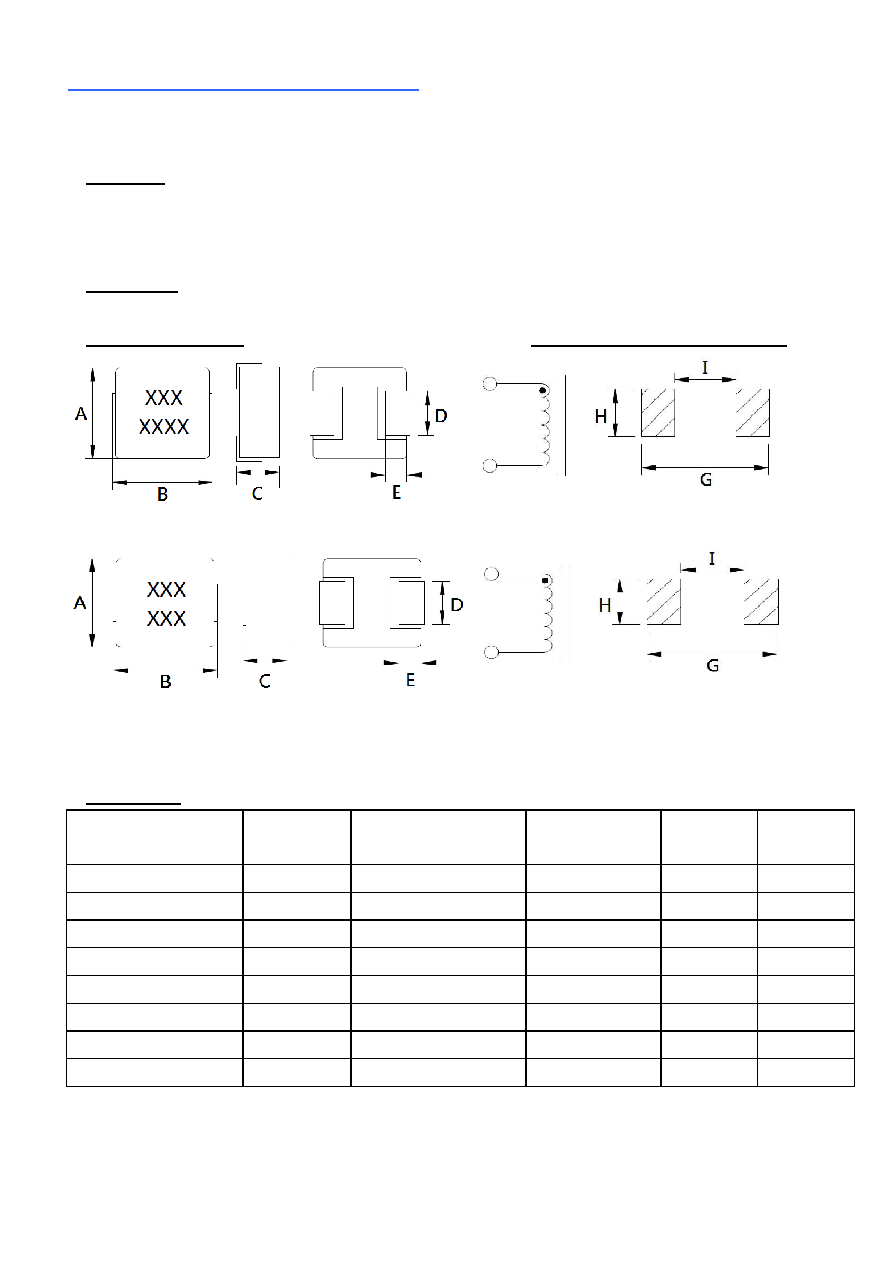

●Shape and Dimension

●Schematics and Land Patterns(mm)

Figure 1

Figure 2

A=6.90m/m Max ; B=7.30m/m Max ; C=1.20m/m Max. ; D=2.50±0.3m/m ; E=1.80m/m Ref. ;

G=7.70m/m Ref. ; H=3.00m/m Ref. ; I=2.50m/m Ref.

●Specification

P/N

L

(μH)

RDC

(mΩ)Max

Isat

(A)

Irms

(A)

FIG

PIT07012-R68M

0.68±20%

19

8.0

7.0

1

PIT07012-1R0M

1.0±20%

28

7.0

6.0

1

PIT07012-1R5M

1.5±20%

40.8

6.0

4.5

1

PIT07012-2R2M

2.2±20%

61.0

5.0

4.0

1

PIT07012-3R3M

3.3±20%

103

3.6

3.0

1

PIT07012-4R7M

4.7±20%

150

3.2

2.5

1

PIT07012-6R8M

6.8±20%

217

2.4

2.1

2

PIT07012-100M

10±20%

290

2.2

2.0

2
