FENG-JUI TECHNOLOGY CO., LTD

SLIM INDUCTOR-RoHS

Your Perfect Inductor

Rev.1902

PQH201610T-R TYPE

●

FEATURE

1. Low profile and small size

2. Low DC resistance

●

Applications

1. Cell phone and other portable used

●

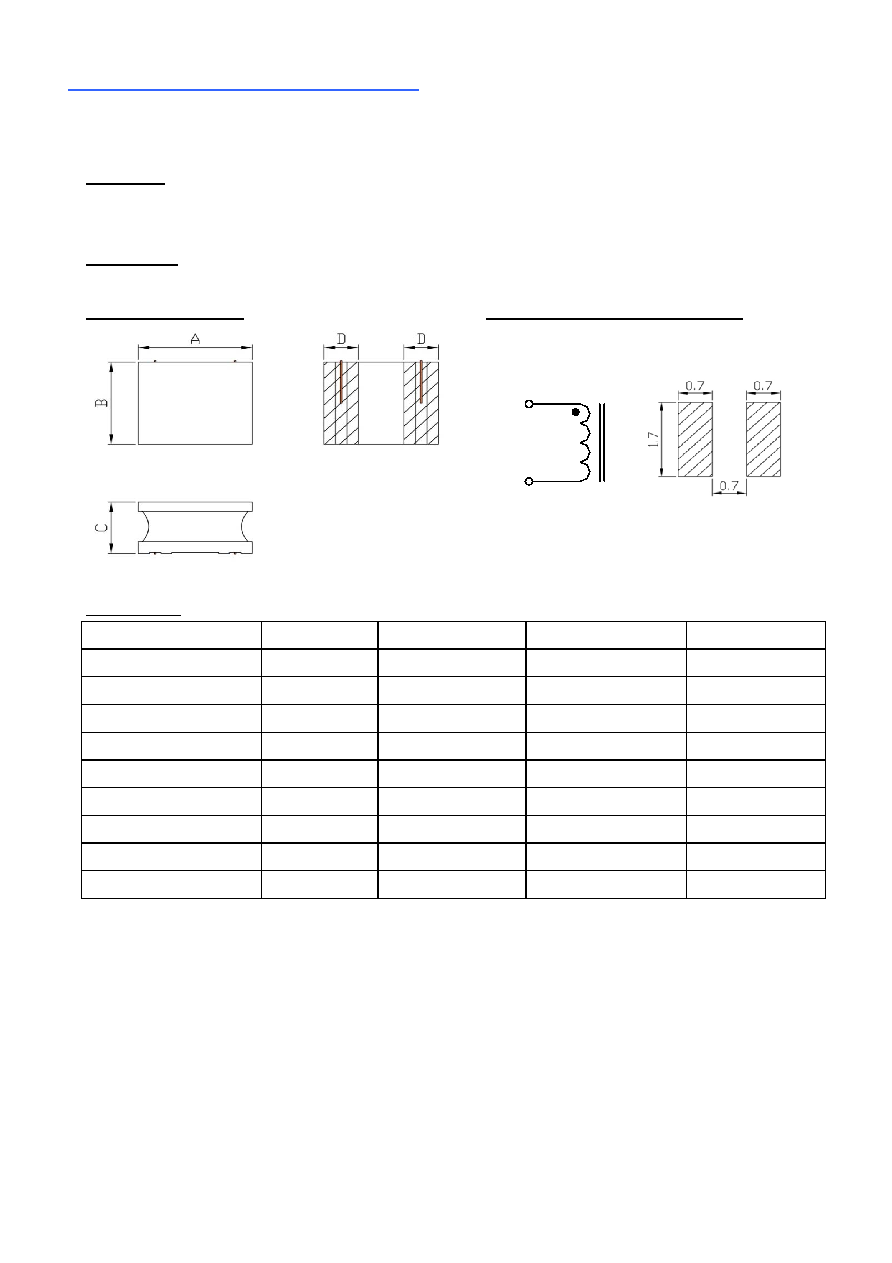

Shape and Dimension

●

Schematics and Land Patterns(mm)

A=2.00±0.30 m/m ; B= 1.60±0.30 m/m ; C= refer Note.8 ; D=0.60 m/m TYP.

●

Specification

Part Number

L(uH)

DCR(Ω±20%)

Isat(A) typ.

Irms(A) typ.

PQH201610T-R24□-R

0.24

0.030

4.10

3.90

PQH201610T-R47□-R

0.47

0.042

3.10

3.00

PQH201610T-1R0□-R

1.0

0.079

2.10

2.00

PQH201610T-1R5□-R

1.5

0.140

1.90

1.65

PQH201610T-2R2□-R

2.2

0.180

1.45

1.50

PQH201610T-4R7□-R

4.7

0.400

0.90

0.90

PQH201610T-6R8□-R

6.8

0.500

0.75

0.85

PQH201610T-100□-R

10

0.750

0.70

0.70

PQH201610T-220□-R

22

1.500

0.43

0.30

Note1. Measurement frequency of Inductance value : at 1MHz

Note2. Measurement ambient temperature of L, DCR and IDC : at 25℃

Note3. Isat : △L/L=30%(typ.)(This indicates the value of current when the inductances is 30% typ. lower than its

initial value at D.C. superimposition)

Note4. Irms: D.C. current when at Δt=40℃(typ.).(Ta=25℃)

Note5. Ordering Code: TYPE NAME: PQH201610T, main Inductance: 100 (10uH)

Note6. Inductance tolerance: N: ±30% ; M: ±20%

Note7. Packaging: Taping ; Quantity: 2000 Pieces/reel

Note8. Dimension C for 2 size: under 1R0 is 1.05mm MAX；above 1R0(include) is 1.00mm MAX
