FENG-JUI TECHNOLOGY CO., LTD

SLIM INDUCTOR-RoHS

Your Perfect Inductor

Rev.1

701

PQH252010H-R TYPE

●FEATURE

1. Low profile and small size

2. Low DC resistance

●Applications

1. Digital camera

2. Cell phone and other portable used

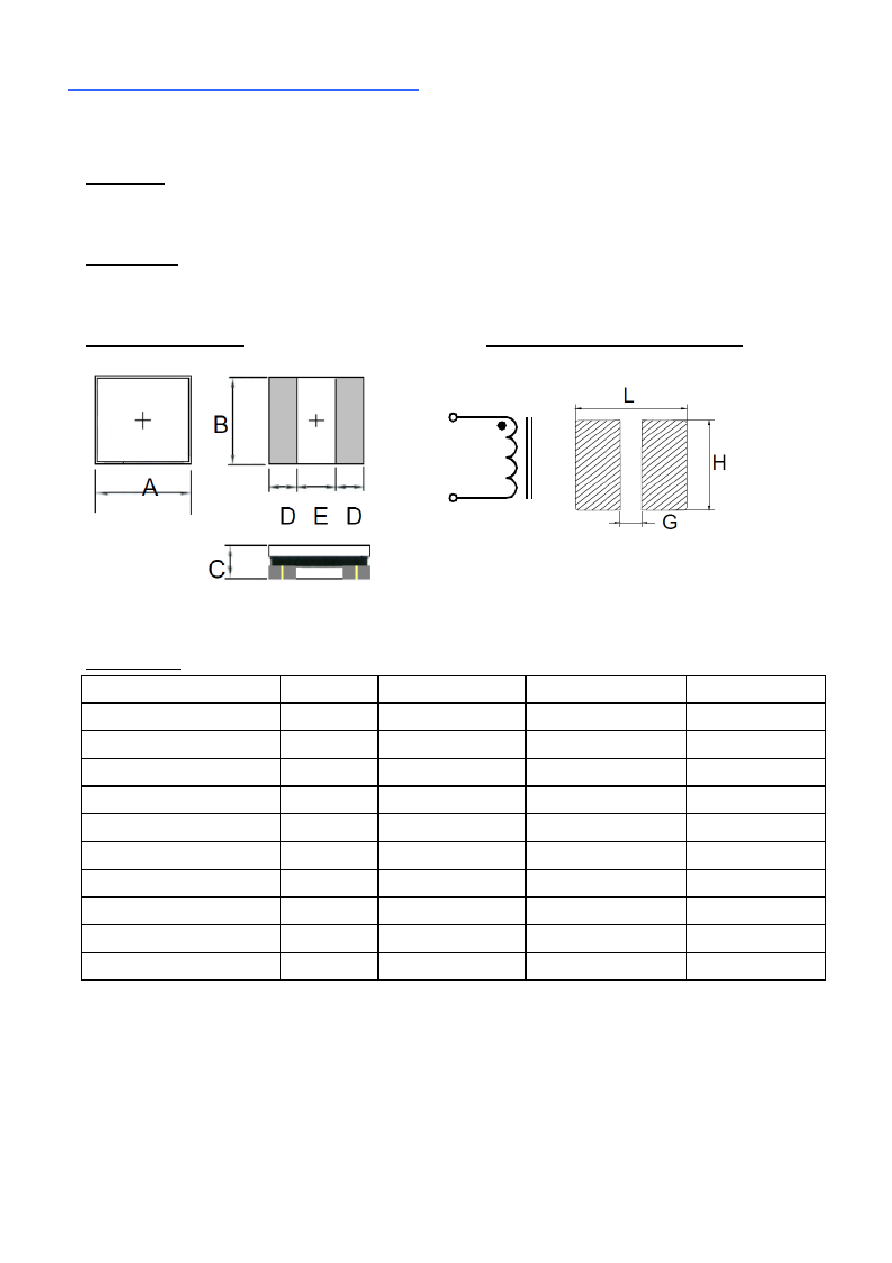

●Shape and Dimension

●Schematics and Land Patterns(mm)

A=2.50±0.20 m/m ; B= 2.00±0.35 m/m ; C=1.00 m/m Max ; D=0.85 m/m REF. ;

E=0.80 m/m REF. ; L=2.70m/m REF. ; G=0.80 m/m REF. ; H=2.20 m/m REF.

●Specification

Part Number

L(uH)

DCR(Ω) ±30%

Isat(A) typ.

Irms(A) typ.

PQH252010H-R47N-R

0.47

0.045

3.2

2.9

PQH252010H-R68N-R

0.68

0.070

2.7

2.4

PQH252010H-1R0M-R

1.0

0.090

2.2

2.0

PQH252010H-1R5M-R

1.5

0.125

1.8

1.8

PQH252010H-2R2M-R

2.2

0.140

1.5

1.6

PQH252010H-3R3M-R

3.3

0.220

1.4

1.4

PQH252010H-4R7M-R

4.7

0.330

1.1

1.0

PQH252010H-5R6M-R

5.6

0.345

1.0

0.9

PQH252010H-6R8M-R

6.8

0.400

0.8

0.8

PQH252010H-100M-R

10

0.560

0.7

0.6

Note1. Measurement frequency of Inductance value : at 1MHz

Note2. Measurement ambient temperature of L, DCR and IDC : at 25℃

Note3. Isat : △L/L=30%(typ.)(This indicates the value of current when the inductances is 30% typ. lower than its

initial value at D.C. superimposition)

Note4. Irms:D.C. current when at ∆t=40℃(typ.).(Ta=25℃)

Note5. Ordering Code: TYPE NAME: PQH252010H
