FENG-JUI TECHNOLOGY CO., LTD

SLIM INDUCTOR-RoHS

Your Perfect Inductor

Rev.1602

PQH252012H-R TYPE

●FEATURE

1. Low profile and small size ,low DC resistance

●Applications

1. Digital camera, cell phone and other portable used

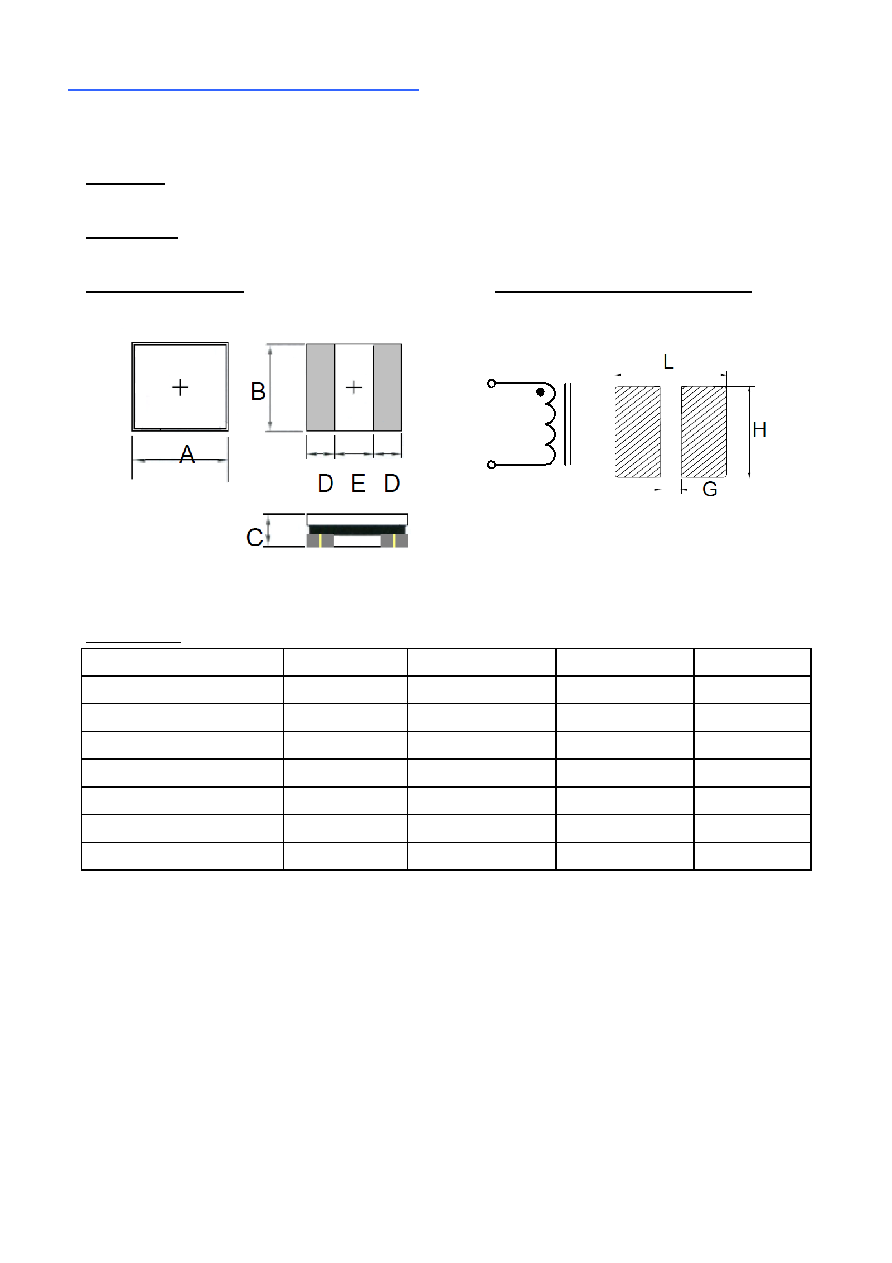

●Shape and Dimension

●Schematics and Land Patterns(mm)

A=2.50±0.30 m/m ; B= 2.00±0.30 m/m ; C=1.20 m/m Max; D=0.85 m/m REF. ;

E=0.80 m/m REF.；L=2.70m/m REF. ; G=0.80 m/m REF. ; H=2.20 m/m REF.

●Specification

Part Number

L(uH)

DCR(Ω max.)

Isat(A)

Irms(A)

PQH252012H-R47□-R

0.47

0.040

4.00

3.30

PQH252012H-1R0□-R

1.0

0.065

3.00

2.90

PQH252012H-1R5□-R

1.5

0.070

2.50

2.40

PQH252012H-2R2□-R

2.2

0.120

2.10

1.90

PQH252012H-4R7□-R

4.7

0.350

1.20

1.10

PQH252012H-100□-R

10

0.680

0.80

0.65

PQH252012H-150□-R

15

1.050

0.70

0.50

Note1. Measurement frequency of Inductance value : at 1MHz

Note2. Measurement ambient temperature of L, DCR and IDC : at 25℃

Note3. Isat : △L/L=30%(typ.)(This indicates the value of current when the inductances is 30% typ. lower than its

initial value at D.C. superimposition) ; Irms: D.C. current when at ∆t=40℃(typ.).(Ta=25℃)

Note4. Ordering Code: Main Inductance: 100 (10uH)

Inductance Tolerance : N: ±30% ; M: ±20%

Coating code: -R
