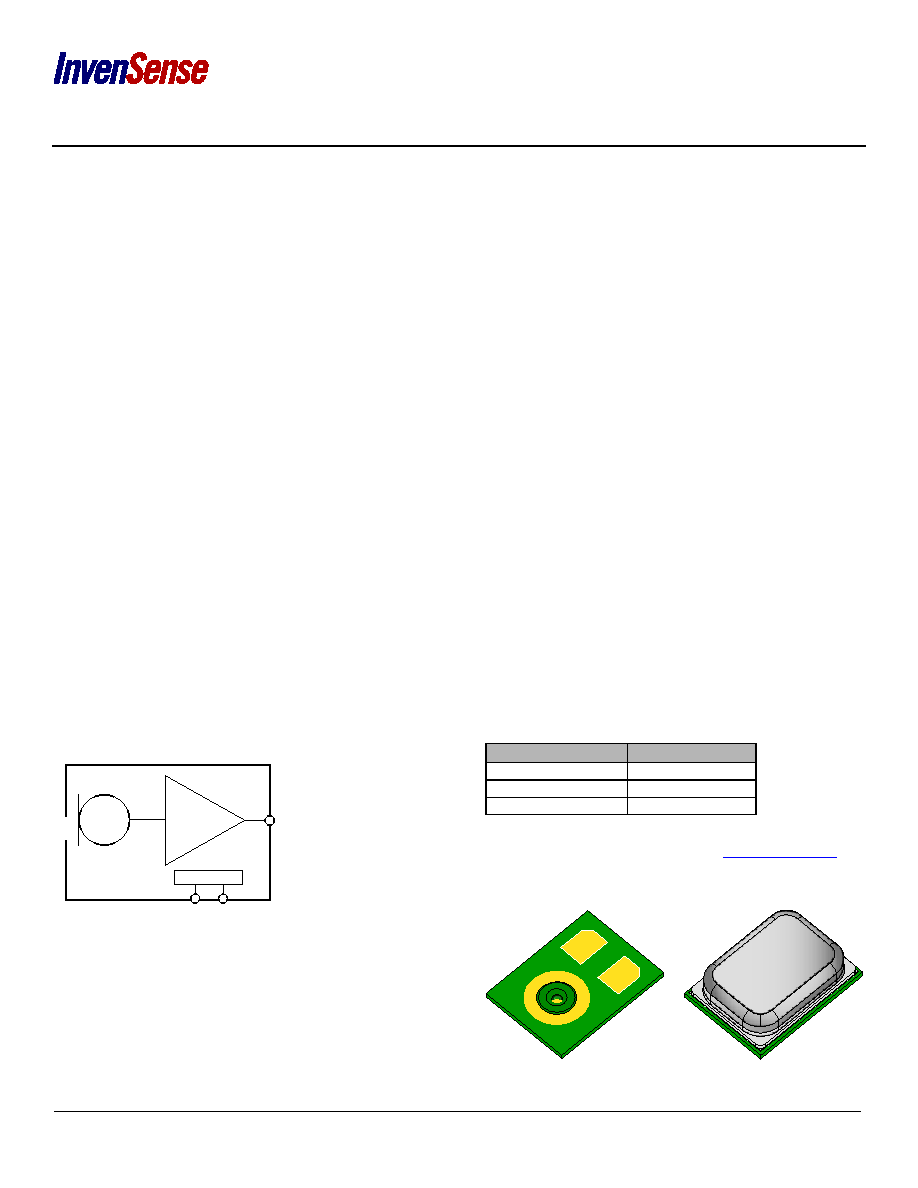

1 / 13 page ![]() INMP504 Ultra-Low Noise Microphone with Bottom Port and Analog Output GENERAL DESCRIPTION The INMP504* is a high-performance, very low noise, low power, analog output, bottom-ported omnidirectional MEMS microphone. The INMP504 consists of a MEMS microphone element, an impedance converter and an output amplifier. The INMP504 sensitivity specification makes it an excellent choice for both near field and far field applications. The INMP504 is function- and pin-compatible with the INMP404 microphone, providing an easy upgrade path. The INMP504 has very high SNR and extended wideband frequency response, resulting in natural sound with high intelligibility. Low current consumption enables long battery life for portable applications. The INMP504 complies with the TIA-920 Telecommunications Telephone Terminal Equipment Transmission Requirements for Wideband Digital Wireline Telephones standard. The INMP504 is available in an miniature 3.35 mm × 2.5 mm × 0.88 mm surface-mount package. It is reflow solder compatible with no sensitivity degradation. The INMP504 is halide free. *Protected by U.S. Patents 7,449,356; 7,825,484; 7,885,423; and 7,961,897. Other patents are pending. APPLICATIONS • Smartphones and Feature Phones • Tablet Computers • Teleconferencing Systems • Digital Still and Video Cameras • Bluetooth Headsets • Notebook PCs • Security and Surveillance FEATURES • 3.35 × 2.50 × 0.88 mm Surface-Mount Package • Very High SNR of 65 dBA • Sensitivity of −38 dBV • Flat Frequency Response from 200 Hz to 15 kHz • Low Current Consumption: <250 µA • Single-Ended Analog Output • Omnidirectional Response • High PSR of 70 dBV • Compatible with Sn/Pb and Pb-Free Solder Processes • RoHS/WEEE Compliant ORDERING INFORMATION PART TEMP RANGE INMP504ACEZ-R0* −40°C to +85°C INMP504ACEZ-R7† −40°C to +85°C EV_INMP504-FX — * – 13” Tape and Reel † – 7” Tape and reel to be discontinued. Contact sales@invensense.com for availability. FUNCTIONAL BLOCK DIAGRAM OUTPUT AMPLIFIER INMP504 POWER VDD GND OUTPUT InvenSense reserves the right to change the detail specifications as may be required to permit improvements in the design of its products. InvenSense Inc. 1745 Technology Drive, San Jose, CA 95110 U.S.A +1(408) 988–7339 www.invensense.com Document Number: DS-INMP504-00 Revision: 1.0. Rev Date: 02/06/2014 |
