3

Technical Data

4110

Effective December 2015

FP2

Low profile, high current power inductors

www.eaton.com/elx

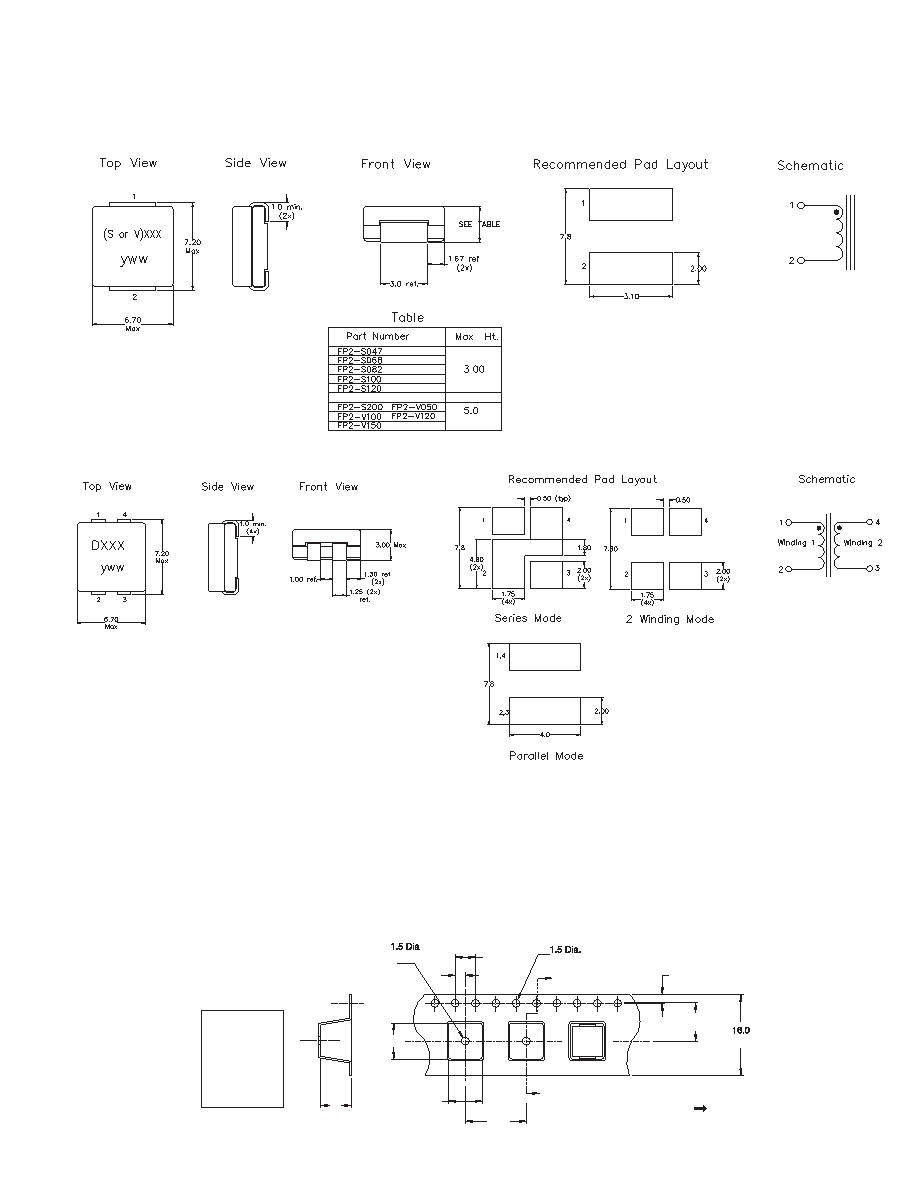

Dimensions–mm

Single conductor

Packaging information

Supplied in tape and reel packaging.

FP2-S,FP2-D: 1,700 parts per 13” diameter reel.

FP2-S200, FP2-V: 950 parts per 13” diameter reel.

Ko

min.

Bo

Ao

12.0

4.0

2.0

+0.1/-0.0

A

A

1.75

7.5

+/-0.3

1

2

Ao=6.6mm

Bo=7.1mm

Ko=3.2mm

Ko=5.2mm

(FP2-S200,FP2-V)

Direction of Feed

(FP2-S,FP2-D)

Dual conductor

Part marking: FPS, V or D (S= single conductor,

V= single conductor, D= dual conductor),

xxx (xxx= inductance value in uH, R= decimal point)

yww= date code

Tolerances are ±0.2 millimeters unless stated otherwise

All soldering surfaces to be coplanar within 0.15 millimeters

Do not route traces or vias underneath the inductor
