FP1006R1-R12-R 数据表(PDF) 3 Page - Eaton All Rights Reserved.

部件名 FP1006R1-R12-R
功能描述  High frequency, high current power inductors
PDF  4 Pages
Scroll/Zoom Zoom In 100%  Zoom Out
制造商  EATON [Eaton All Rights Reserved.]
网页  https://www.eaton.com
标志 EATON - Eaton All Rights Reserved.

FP1006R1-R12-R 数据表(HTML) 3 Page - Eaton All Rights Reserved.

  FP1006R1-R12-R Datasheet HTML 1Page - Eaton All Rights Reserved. FP1006R1-R12-R Datasheet HTML 2Page - Eaton All Rights Reserved. FP1006R1-R12-R Datasheet HTML 3Page - Eaton All Rights Reserved. FP1006R1-R12-R Datasheet HTML 4Page - Eaton All Rights Reserved.
Zoom Inzoom in Zoom Outzoom out
 3 / 4 page
background image
3
www.eaton.com/electronics
Technical Data 4338
Effective June 2017

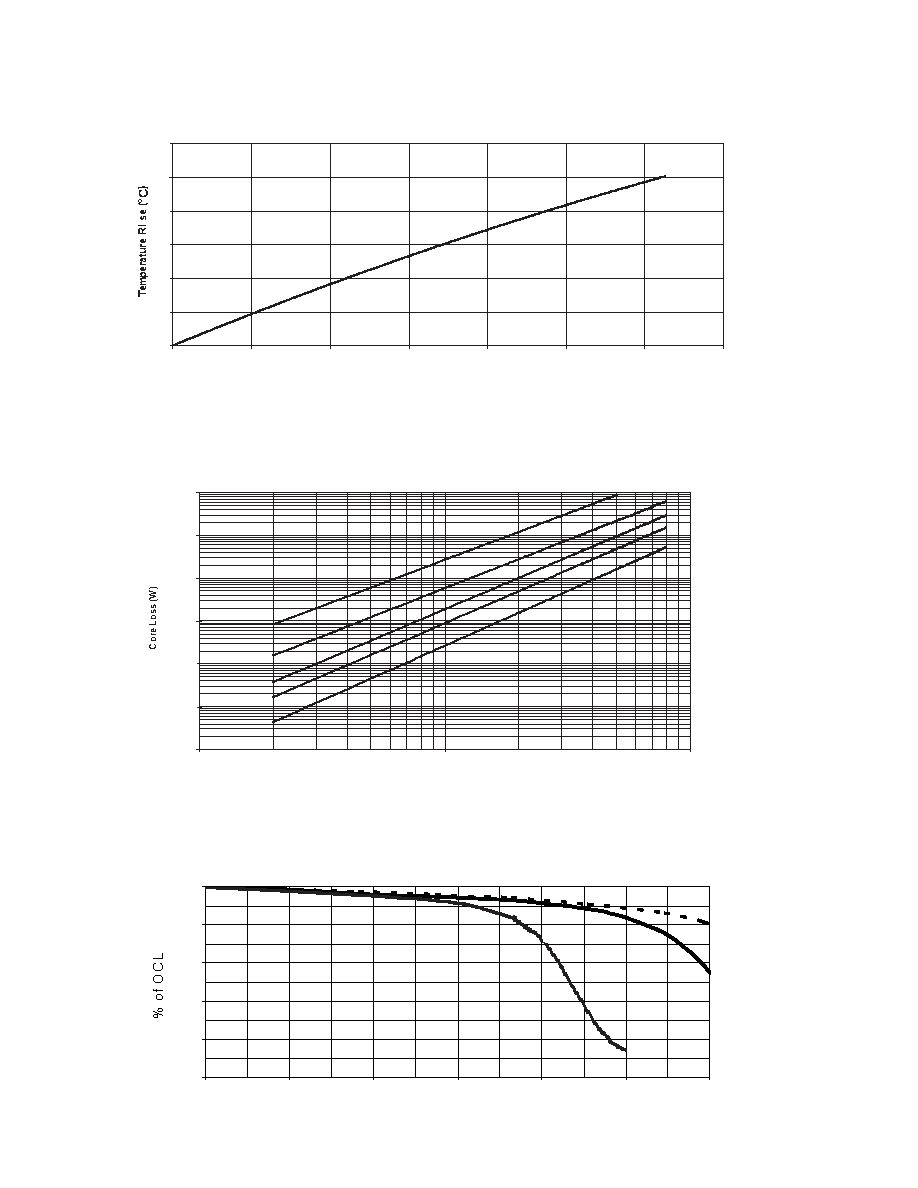

Core loss vs Bp-p
Inductance characteristics
FP1006
High frequency, high current power inductor
Temperature rise vs total loss
60
50
40
30
20
10
0
0
0.2
0.4
0.6
0.8
1
1.2
1.4
Total Loss (W)
1MHz
10
500kHz
300kHz
200kHz
1
100kHz
0.1
0.01
0.001
0.0001
0.00001
100
1000
10,000
Bp-p (Gauss)
% of O C L v s. % of Isat 1
100%
-40°C
80%
60%
+25°C
40%
20%
+125°C
0%
0%
20%
40%
60%
80%
100%
120%
% of Isat1
